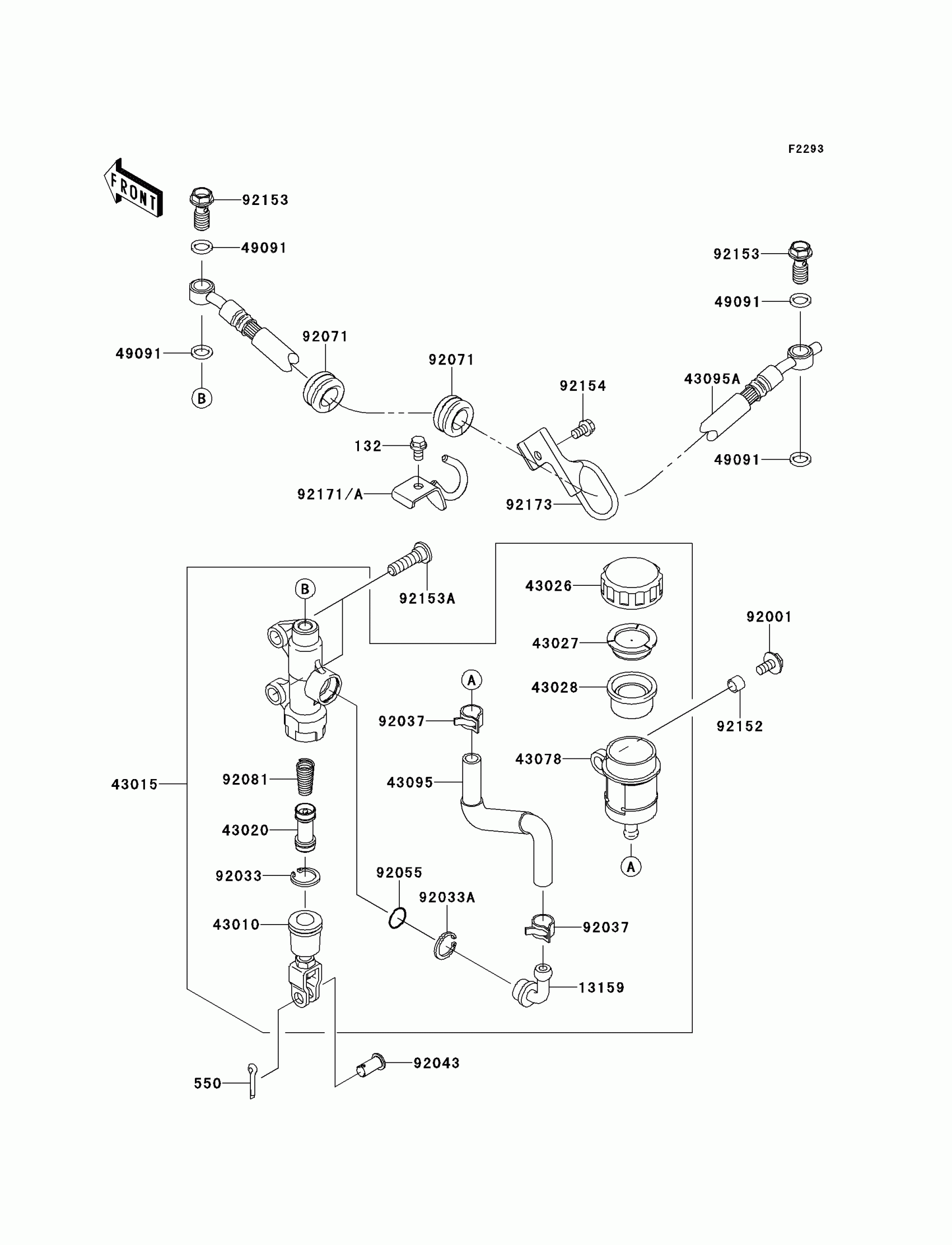

Kawasaki KLR650 New Edition Rear Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

550

PIN-COTTER,2.0X15

550AA2015

$0.90

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1074

$59.13

43015

CYLINDER-ASSY-MASTER,RR

43015-0130

$377.23

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0464

$21.17

43095A

HOSE-BRAKE,RR

43095-0566

$86.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92001

BOLT,W/P,6X16

92001-1860

$3.85

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92071

GROMMET,15X20X16

92071-0056

$3.64

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92152

COLLAR,7.1X9.5X7

92152-0561

$2.34

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,FLANGED,6X10

92154-0950

$2.19

92171

CLAMP,BRAKE HOSE,F.S.BLACK

92171-0712-18R

$7.22

92173

CLAMP

92173-0203

$9.49
