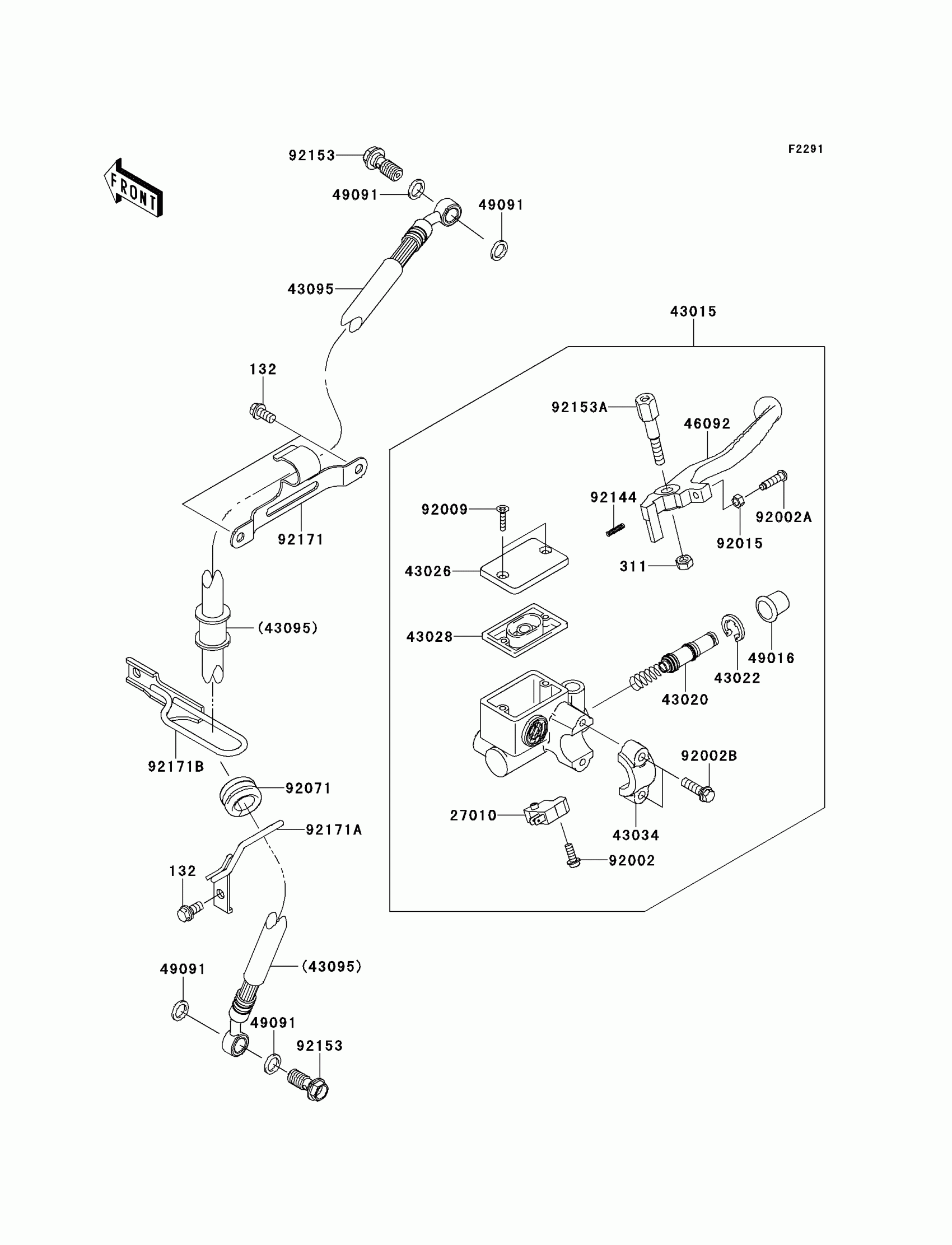

Kawasaki KLR650 New Edition Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

311

NUT-HEX,6MM

311BB0600

$0.98

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0077

$312.92

43020

PISTON-COMP-BRAKE

43020-1104

$53.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1074

$20.73

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR

43095-0255

$130.60

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$17.71

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,ADJUST

92002-1893

$7.36

92002B

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,ADJUST

92015-1642

$2.99

92071

GROMMET,15X20X16

92071-0056

$3.64

92144

SPRING,RETURN

92144-1103

$7.18

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,LEVER SET

92153-0790

$14.50

92171

CLAMP,BRAKE HOSE

92171-0756

$17.53

92171A

CLAMP,BRAKE HOSE,LH

92171-0943

$10.03

92171B

CLAMP,BRAKE HOSE,RH

92171-1682

$13.05
