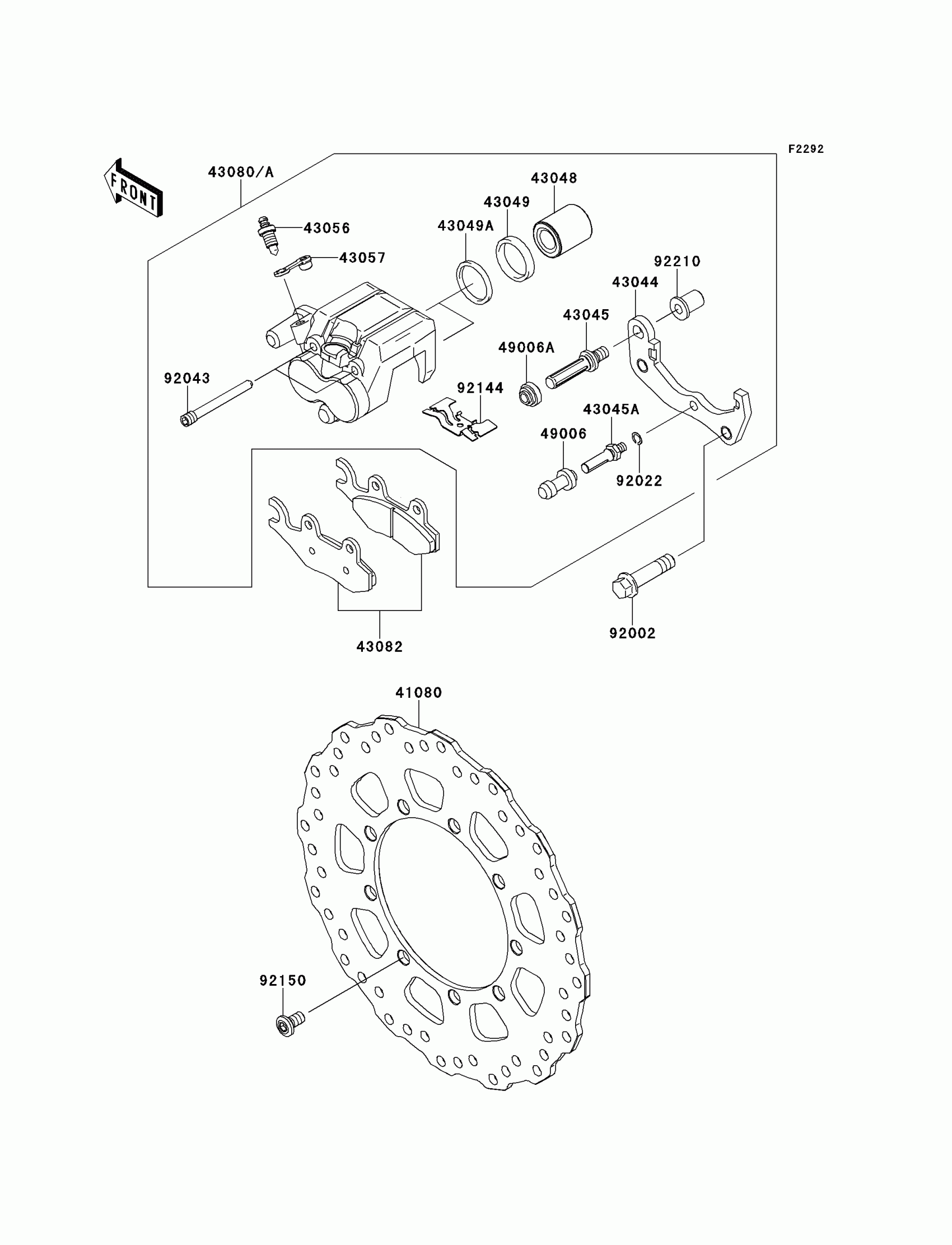

Kawasaki KLR650 New Edition Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK

41080-0099-11H

$447.46

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0006

$160.10

43045

SHAFT-CALIPER

43045-0004

Unavailable

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080A

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0095-25S

$372.46

43082

PAD-ASSY-BRAKE

43082-0060

$60.98

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92002

BOLT,FLANGED,10X41

92002-1468

$7.44

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$15.00

92144

SPRING,PAD

92144-1847

$30.92

92150

BOLT,8X15

92150-1852

$3.60

92210

NUT

92210-0615

$5.46
