2014 Kawasaki KLR650 New Edition OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

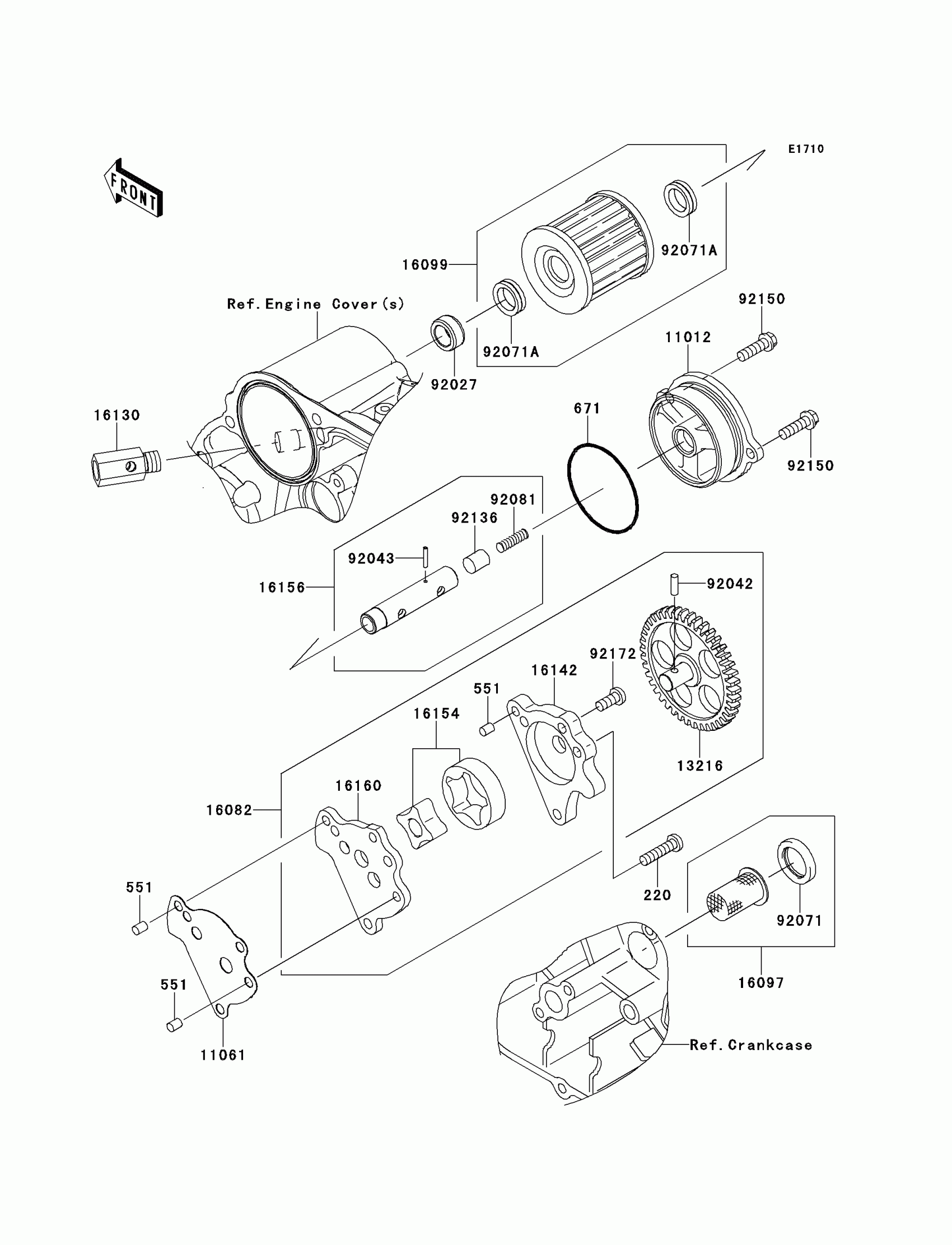

2014 Kawasaki KLR650 New Edition OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,6X25

220AA0625

1
Out of stock

551

PIN-DOWEL,6X8

551A0608

1
Out of stock

671

O RING,55MM

671B2555

1
Out of stock

11012

CAP,OIL FILTER

11012-1538

1
Out of stock

11061

GASKET,OIL PUMP

11061-0430

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-1146

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1088

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1001

1
Out of stock

16099

ELEMENT-OIL FILTER

16099-004

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1063

1
Out of stock

16142

COVER-PUMP

16142-1078

1
Out of stock

16154

ROTOR-PUMP

16154-1008

1
Out of stock

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

1
Out of stock

16160

BODY

16160-1137

1
Out of stock

92027

COLLAR,13X20X9

92027-1695

1
Out of stock

92042

PIN,DOWEL,4X12.8

92042-041

1
Out of stock

92043

PIN,SPRING,2.2X13.5

92043-123

1
Out of stock

92071

GROMMET,OIL STRAINER

92071-100

1
Out of stock

92071A

GROMMET,OIL FILTER

92071-101

1
Out of stock

92081

SPRING,PISTON

92081-043

1
Out of stock

92136

VALVE

92136-002

1
Out of stock

92150

BOLT,6X20

92150-1010

1
Out of stock

92172

SCREW,6X14

92172-0273

1
Out of stock
