2014 Kawasaki KLR650 New Edition Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

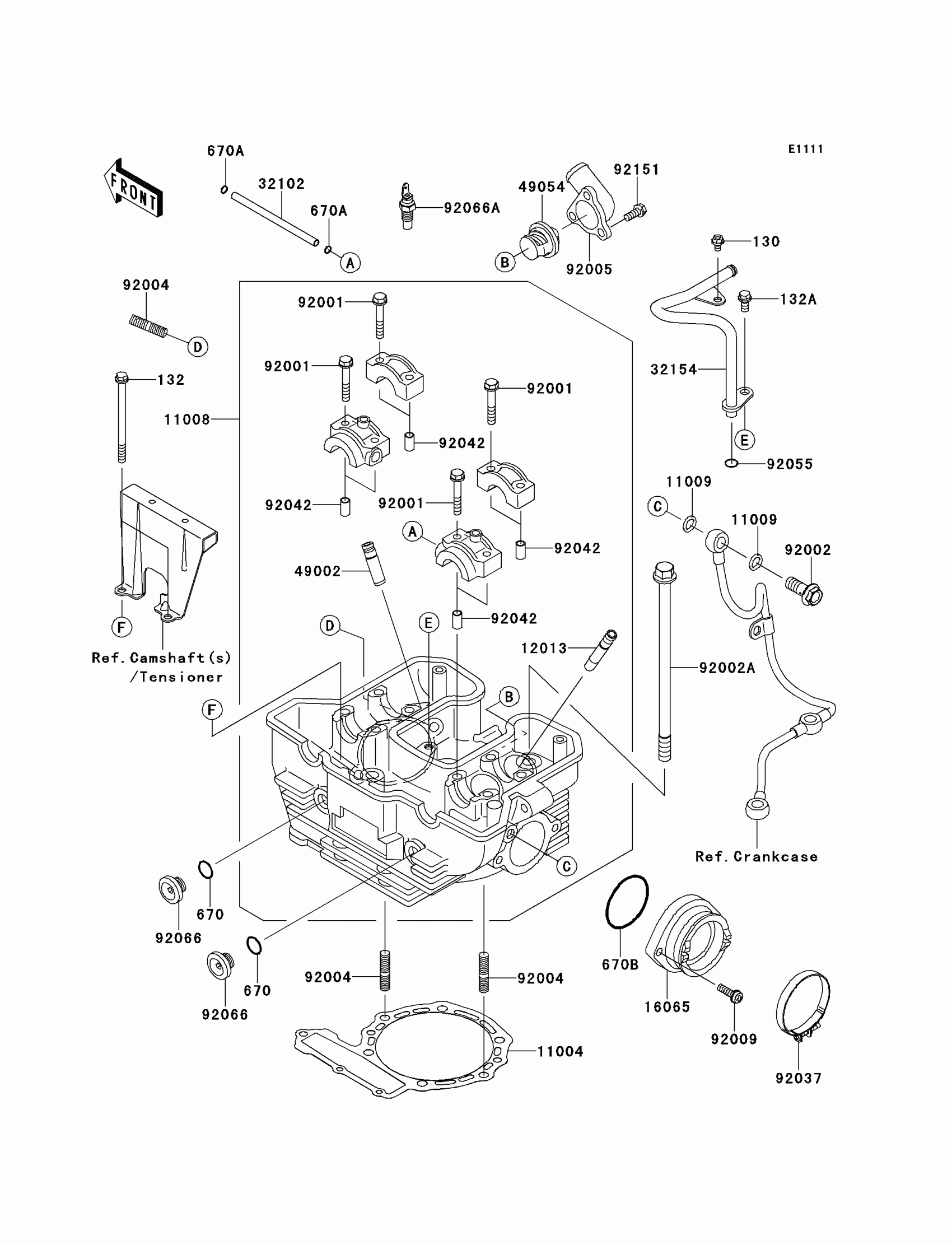

2014 Kawasaki KLR650 New Edition Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X8

130BD0508

1

$1.73

In stock

132

1

$2.63

In stock

132A

1

$1.73

In stock

670

O RING,15MM

670B2015

1

$1.25

In stock

670A

O RING,6MM

670D1506

1

$1.42

In stock

670B

O RING,48MM

670D3048

1

$5.84

In stock

11004

GASKET-HEAD

11004-1158

1

$52.22

In stock

11008

HEAD-COMP-CYLINDER

11008-0202

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

12013

GUIDE-VALVE,INTAKE

12013-009

1

$24.29

In stock

16065

HOLDER-CARBURETOR

16065-1151

1

$31.63

In stock

32102

PIPE,OIL LINE

32102-1352

1

$3.85

In stock

32154

PIPE

32154-1555

1

$78.79

In stock

49002

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

49054

THERMOSTAT

49054-1053

1

$49.29

In stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92002

BOLT,BANJO,10X25

92002-1170

1

$9.22

In stock

92002A

BOLT,10X191

92002-1874

1
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92005

FITTING

92005-0715

1
Out of stock

92009

SCREW,6X20

92009-1325

1
Out of stock

92037

CLAMP,55MM

92037-1486

1

$6.88

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,10MM

92055-1149

1

$5.21

In stock

92066

PLUG

92066-1158

1

$5.76

In stock

92066A

PLUG,SENSOR WATER

92066-1183

1

$60.95

In stock

92151

BOLT,6X14

92151-1810

1

$1.97

In stock
