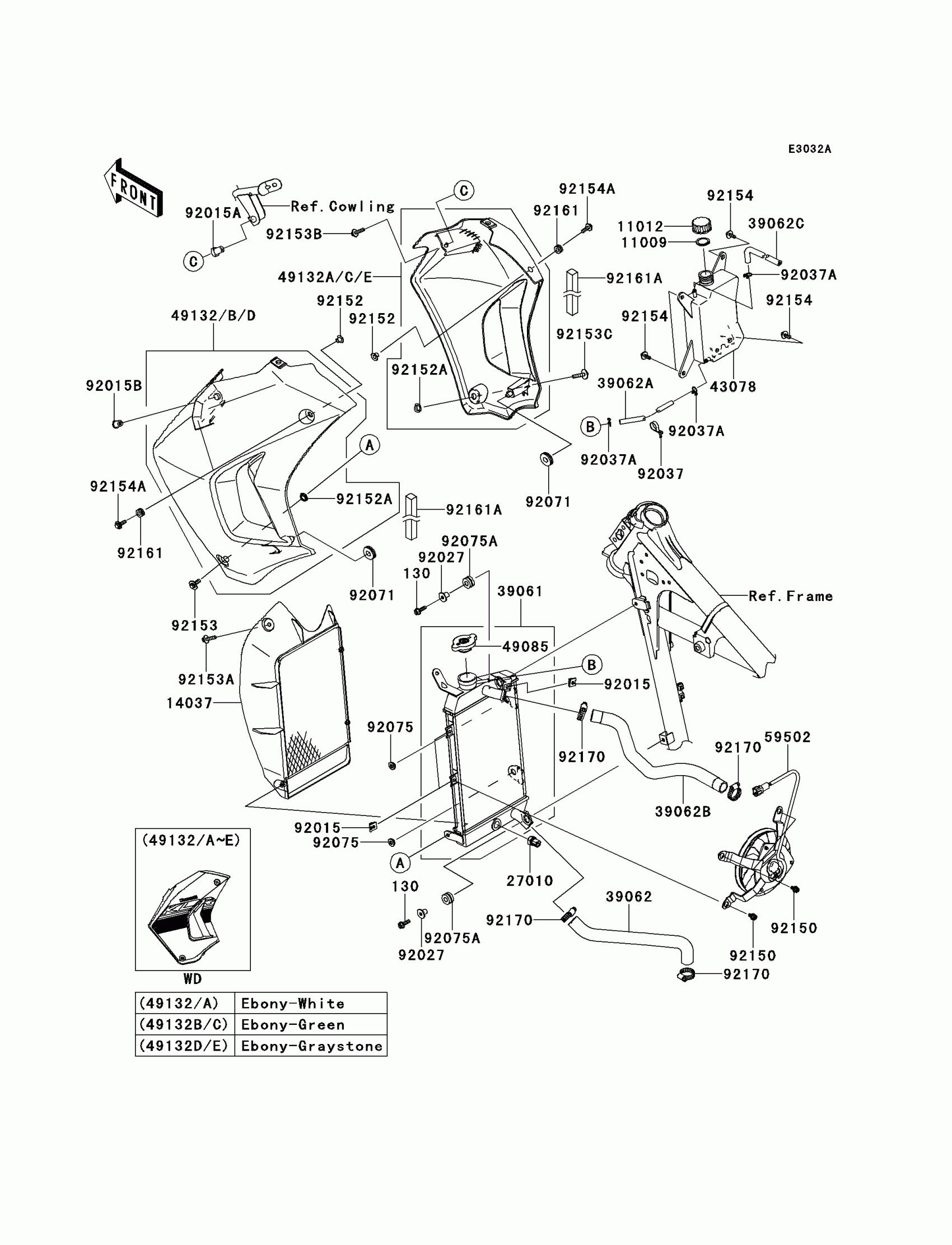

Kawasaki KLR650 New Edition Radiator(EES) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14037

SCREEN

14037-0056

$60.13

27010

SWITCH

27010-1443

$120.81

39061

RADIATOR-ASSY

39061-0098

$1,018.59

39062

HOSE-COOLING,W/P-RAD.

39062-0149

$38.92

39062A

HOSE-COOLING,RESERVOIR-CAP

39062-0340

$14.24

39062B

HOSE-COOLING,HEAD-RAD.

39062-0341

$49.42

39062C

HOSE-COOLING,RESERVOIR

39062-1220

$21.40

43078

RESERVOIR

43078-0072

$64.98

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$44.67

49132B

SHROUD-ENGINE,LH,EBONY

49132-5119-H8

$320.62

49132C

SHROUD-ENGINE,RH,EBONY

49132-5120-H8

$320.61

49132D

SHROUD-ENGINE,LH,EBONY

49132-5121-H8

$323.17

49132E

SHROUD-ENGINE,RH,EBONY

49132-5122-H8

$323.18

59502

FAN-ASSY

59502-0583

$484.69

130

BOLT-FLANGED,6X20

130BA0620

$1.28

92015

NUT

92015-1487

$3.64

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT

92015-1700

$6.55

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1043

$3.91

92075

DAMPER,8MM

92075-1138

$2.76

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.57

92150

BOLT,6X12

92150-1186

$2.56

92152

COLLAR,6.3X8.3X9.2

92152-0237

$4.27

92152A

COLLAR

92152-1235

$3.15

92153

BOLT,6X20

92153-0864

$5.67

92153A

BOLT,FLANGED WP,6X25

92153-1008

$2.15

92153B

BOLT,FLANGED,6X30

92153-1457

$2.71

92153C

BOLT,6X30

92153-1895

$3.51

92154

BOLT,6X16

92154-0391

$1.43

92154A

BOLT,FLANGED,6X20

92154-0392

$2.11

92161

DAMPER

92161-0056

$2.38

92161A

DAMPER

92161-0509

$19.31

92170

CLAMP,COOLING HOSE

92170-1033

$11.50

49132

SHROUD-ENGINE,LH,EBONY

49132-5117-H8

$320.61

49132A

SHROUD-ENGINE,RH,EBONY

49132-5118-H8

$320.61
