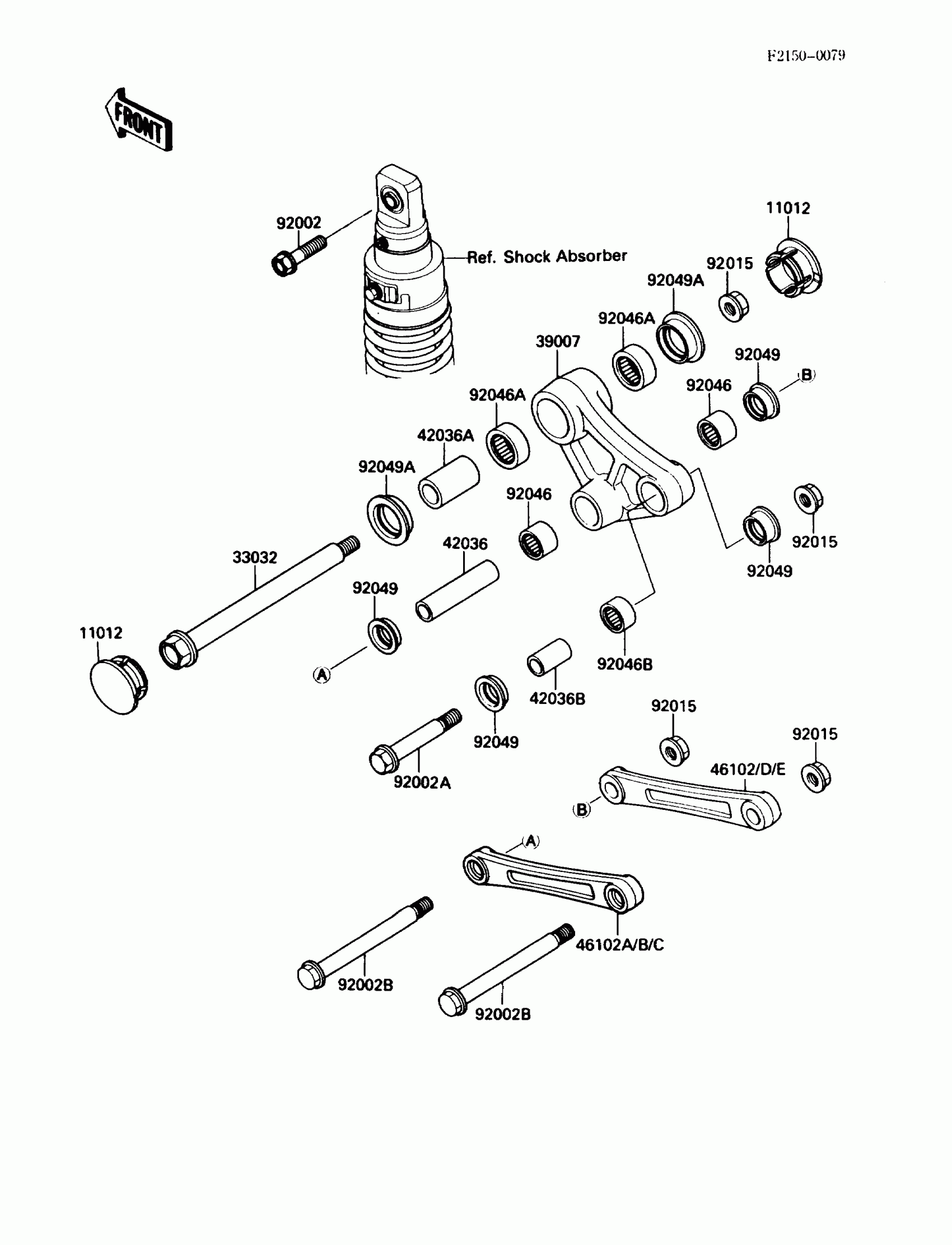

Kawasaki KLR650 Suspension Diagram

#

Description
Price

11012

CAP,32X14

11012-1559

$7.49

33032

SHAFT-SWING ARM

33032-1129

$90.76

39007

ARM-SUSP,UNI TRAK

39007-1119

$277.95

42036

SLEEVE,15X20X82

42036-1205

$25.68

42036A

SLEEVE,20X28X60

42036-1207

$35.14

42036B

SLEEVE,15X20X30

42036-1208

Unavailable

46102B

ROD,SUSPENSION,LH

46102-1227

$68.85

46102D

ROD,SUSPWNSION,RH

46102-1228

$68.85

92002

BOLT,12X45

92001-1939

Unavailable

92002A

BOLT,FLANGED,14X64

92002-1869

Unavailable

92002B

BOLT,FLANGED,14X120

92002-1870

$29.19

92015

NUT,14MM

92015-1459

$7.54

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92046A

BEARING-NEEDLE,BM2817

92046-1111

$17.68

92046B

BEARING-NEEDLE,BM202715

92046-1112

$16.90

92049

SEAL-OIL,ARM

92049-1109

$7.08

92049A

SEAL-OIL,28X34X5.7

92049-1181

$7.08
