2025 Kawasaki KLR650 Brake Piping Diagram

← All diagrams

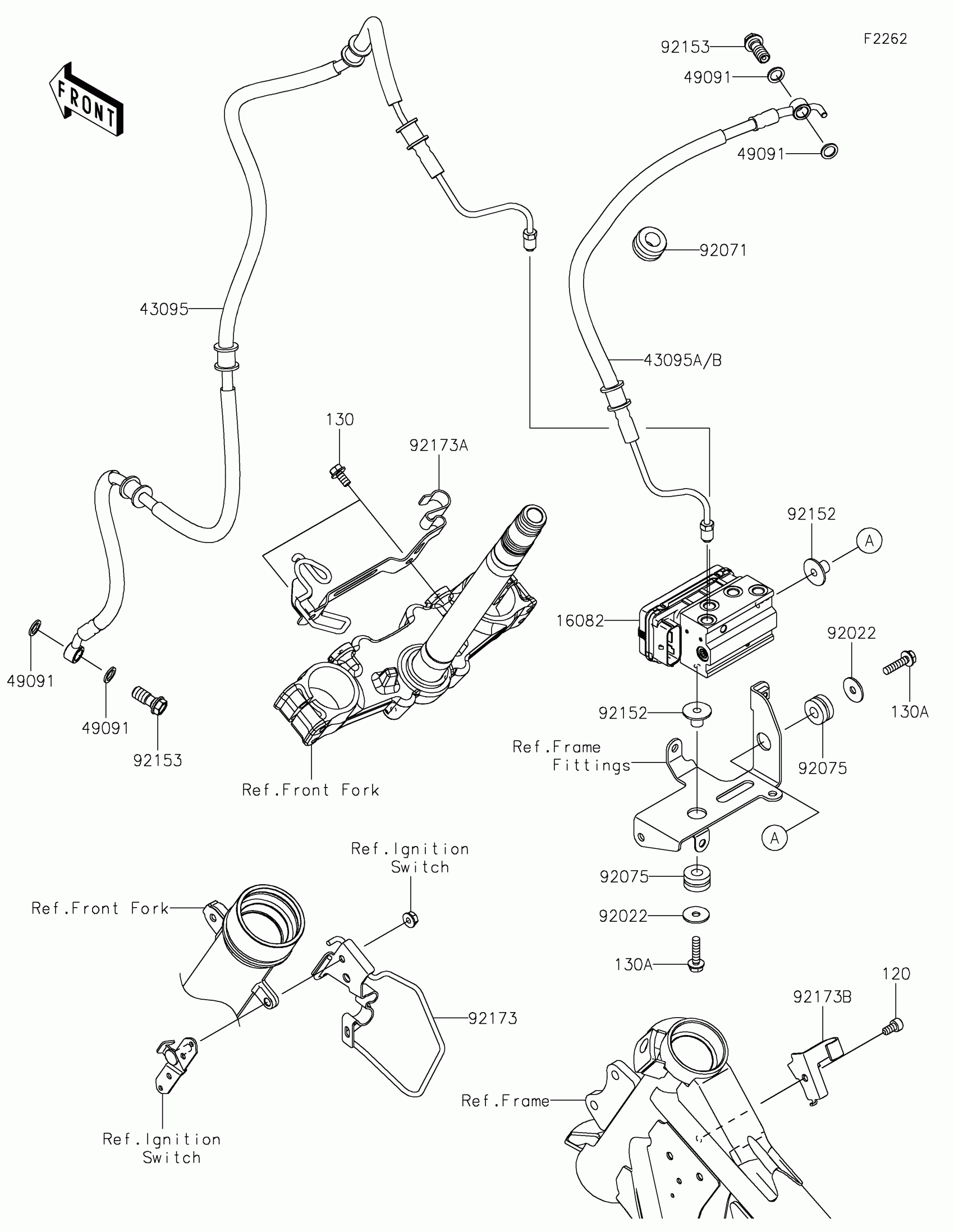

Find the part on the Brake Piping diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

1

$1,340.31

In stock

43095

1

$211.56

In stock

43095B

1

$140.76

In stock

49091

1

$1.81

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92071

GROMMET,12.2X26X16

92071-0785

1
Out of stock

92075

1

$3.72

In stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92173

CLAMP

92173-2348

1

$11.61

In stock

92173A

CLAMP

92173-2350

1

$21.56

In stock

92173B

CLAMP

92173-2352

1

$3.90

In stock

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
