2025 Kawasaki KLR650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

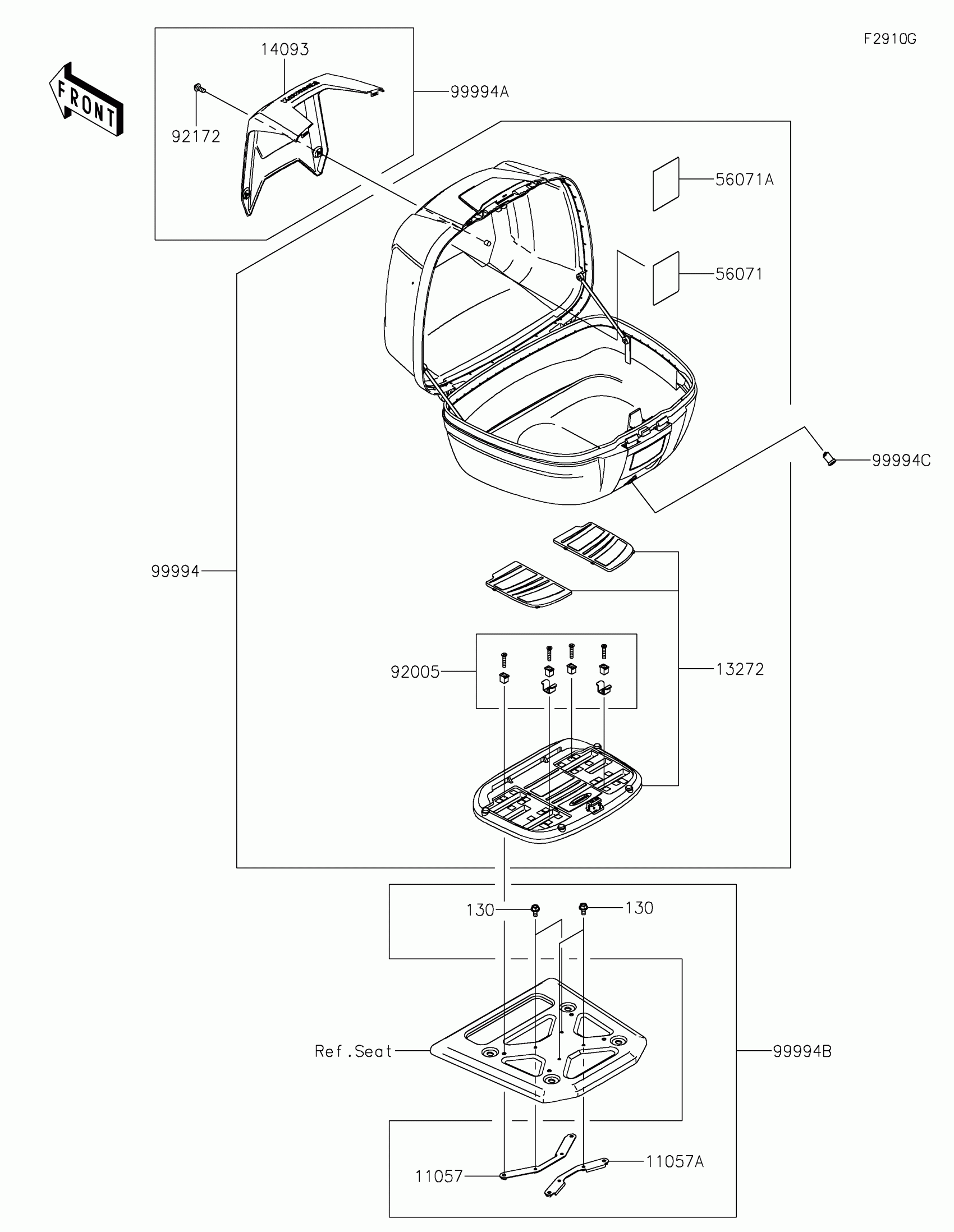

2025 Kawasaki KLR650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7099

1

$57.79

In stock

11057A

BRACKET

11057-7100

1

$57.79

In stock

13272

PLATE,TOPCASE BASE

13272-3743

1

$52.17

In stock

14093

COVER,TOPCASE,M.P.SILVER

14093-1067-GU

1

$79.22

In stock

56071

1

$44.95

In stock

56071A

1

$44.95

In stock

92005

FITTING

92005-1428

1

$99.83

In stock

92172

SCREW,SOCKET,5X14

92172-0823

1

$0.85

In stock

99994

TOPCASE

99994-1493

1

$288.42

In stock

99994A

PANEL-TOPCASE,M.P.SILVER

99994-1494-GU

1

$49.88

In stock

99994B

FITTING-TOPCASE

99994-1495

1

$67.06

In stock

99994C

ROTOR(INNER GROOVE)

99994-1496

1

$27.51

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock
