2025 Kawasaki KLR650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

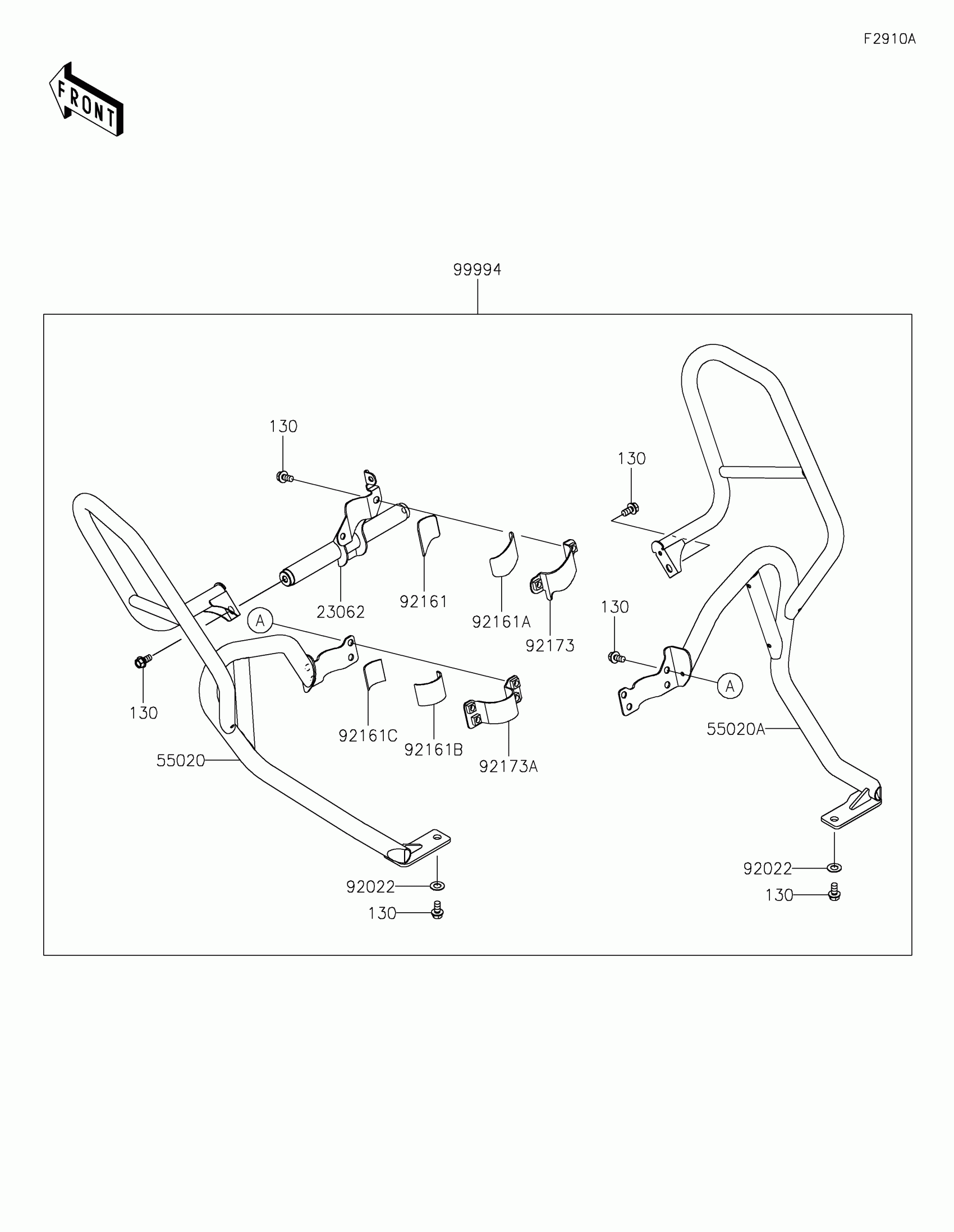

2025 Kawasaki KLR650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23062

BRACKET-COMP,MID

23062-1365

1

$99.98

In stock

55020

GUARD,LH

55020-2406

1

$197.63

In stock

55020A

GUARD,RH

55020-2407

1

$197.63

In stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92161

DAMPER

92161-2461

1

$4.66

In stock

92161A

DAMPER

92161-2462

1

$5.19

In stock

92161B

DAMPER

92161-2463

1

$4.66

In stock

92161C

DAMPER

92161-2464

1

$4.66

In stock

92173

CLAMP

92173-2518

1

$10.24

In stock

92173A

CLAMP

92173-2519

1

$12.05

In stock

99994

FRAME-SLIDER(VER.2)

99994-1849

1

$462.41

In stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock
