2025 Kawasaki KLR650 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

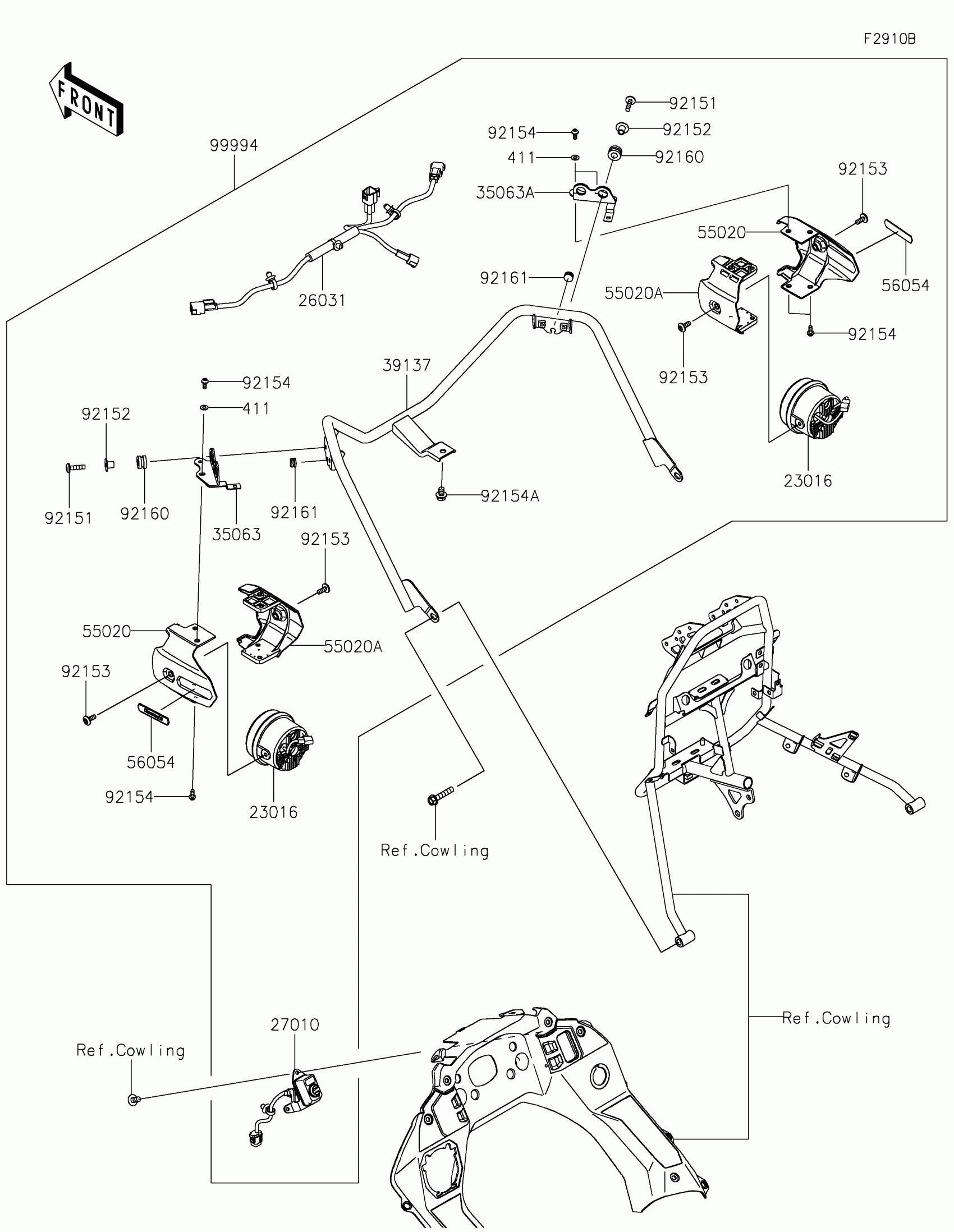

2025 Kawasaki KLR650 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23016

1

$402.17

In stock

26031

HARNESS,FOG LAMP

26031-3860

1

$65.94

In stock

27010

SWITCH,FOG LAMP

27010-0968

1

$85.87

In stock

35063

STAY,LH

35063-1537

1

$9.08

In stock

35063A

STAY,RH

35063-1538

1

$7.43

In stock

39137

STAY-COMP,MAIN

39137-0713

1

$92.00

In stock

55020

GUARD,OUTER

55020-1825

1

$11.67

In stock

55020A

GUARD,INNER

55020-1826

1

$4.63

In stock

56054

1

$9.95

In stock

92151

BOLT,SOCKET,6X25

92151-1611

1

$1.95

In stock

92152

COLLAR,6.5X20X12

92152-2262

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92154A

BOLT,FLANGED,8X12

92154-4252

1

$1.39

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER,8X14X8.9

92161-1666

1

$1.32

In stock

99994

FOG LAMP

99994-1498

1

$477.30

In stock

411

WASHER-PLAIN,5MM

411AB0500

1

$0.76

In stock
