1989 Kawasaki KLR250 Swingarm Diagram

← All diagrams

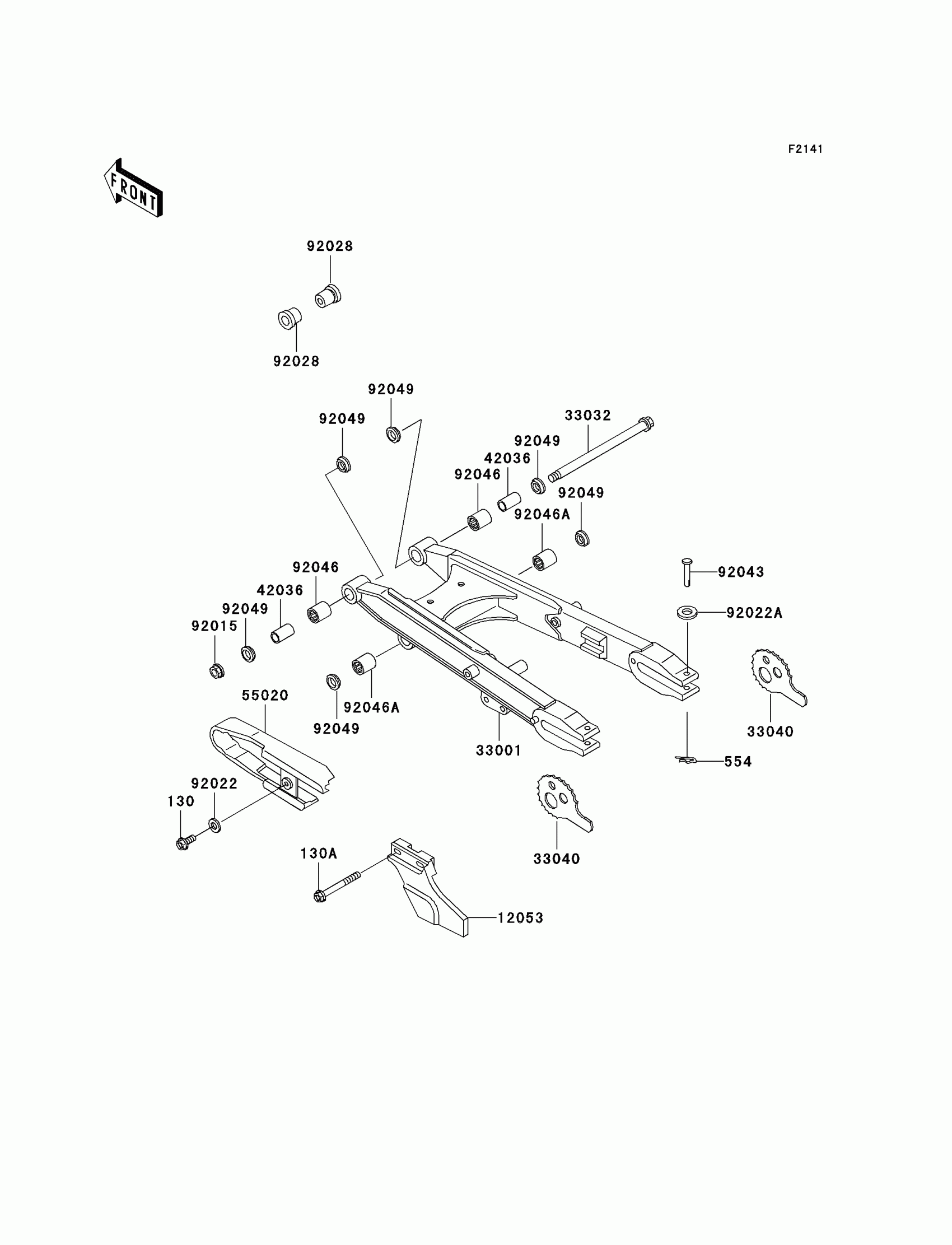

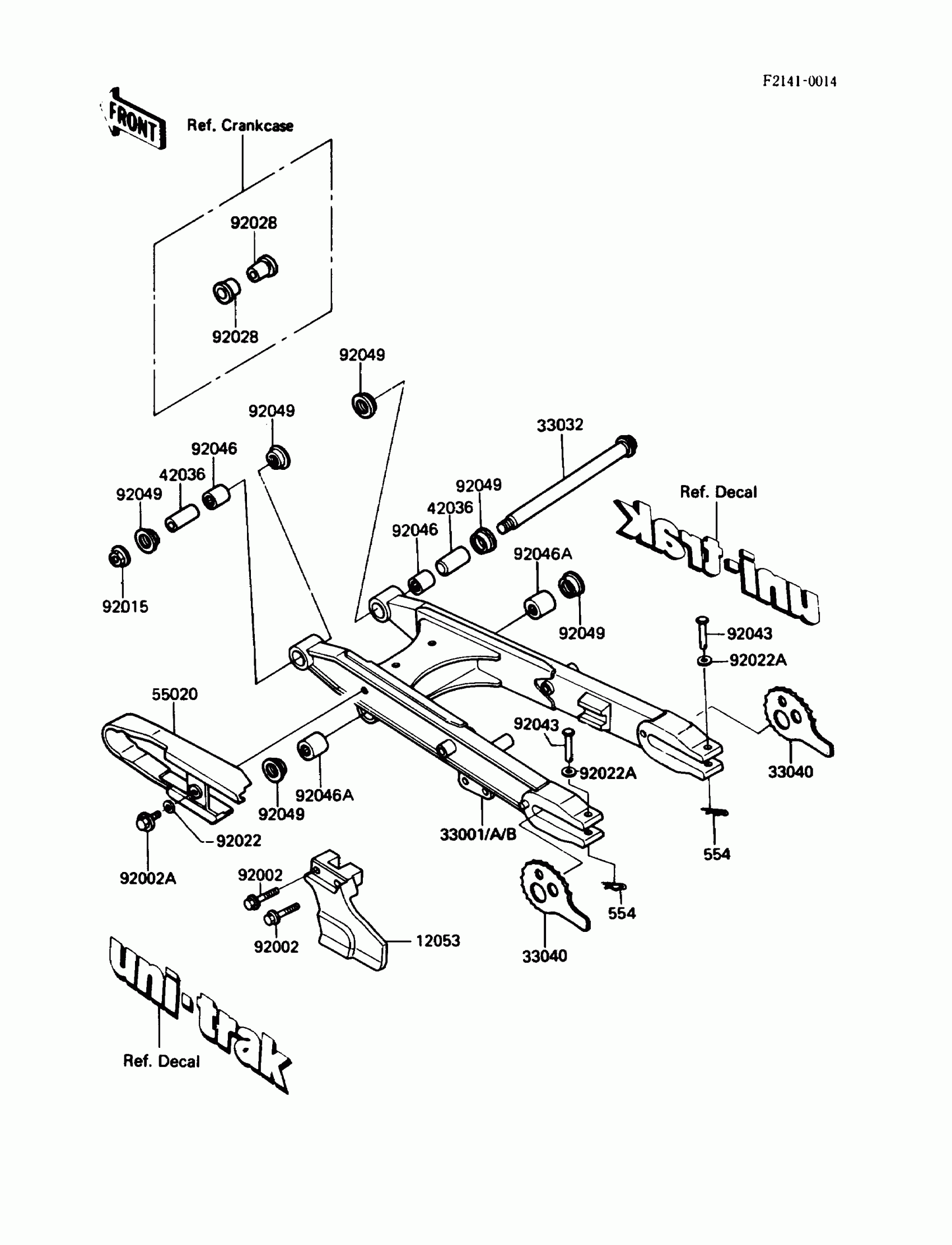

Find the part on the Swingarm diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN,RR

12053-1104

1

$65.60

In stock

33001

1

$854.41

In stock

33032

SHAFT-SWING ARM

33032-1108

1

$74.81

In stock

33040

ADJUSTER-CHAIN

33040-1060

1
Out of stock

42036

SLEEVE,15.1X20X42.5

42036-1103

1

$19.97

In stock

55020

GUARD,CHAIN,FR

55020-1154

1

$139.08

In stock

92002

BOLT,6X45

92002-1088

1

$4.15

In stock

92002A

BOLT,5X12

92002-1185

1

$1.44

In stock

92015

NUT,14MM

92015-1459

1

$7.86

In stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92022A

WASHER-PLAIN

92022-183

1
Out of stock

92028

BUSHING,SWING ARM

92028-1261

1

$16.31

In stock

92043

PIN,6X44.5

92043-1110

1

$4.51

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BTM202730

92046-1113

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock
