1989 Kawasaki KLR250 Rear Hub Diagram

← All diagrams

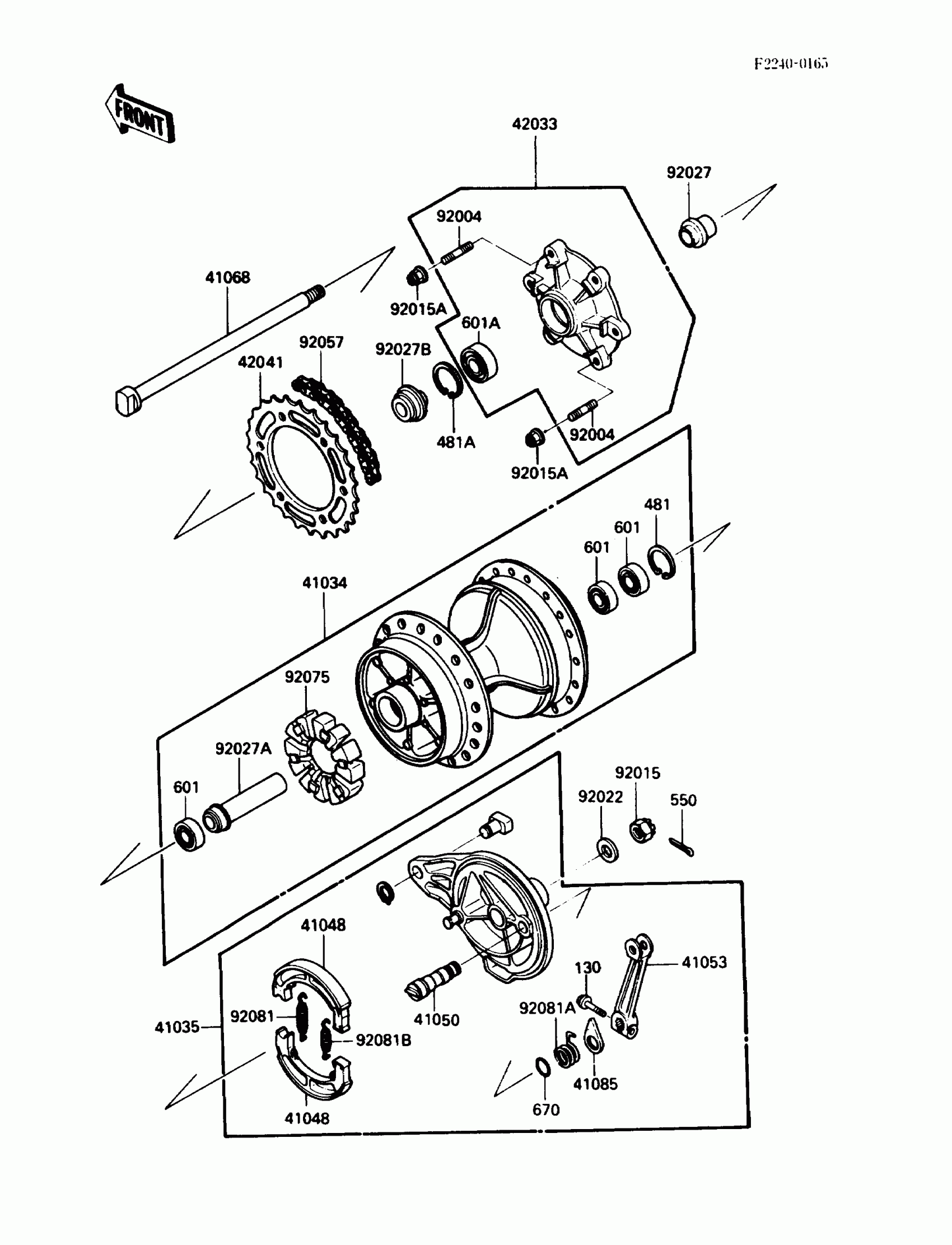

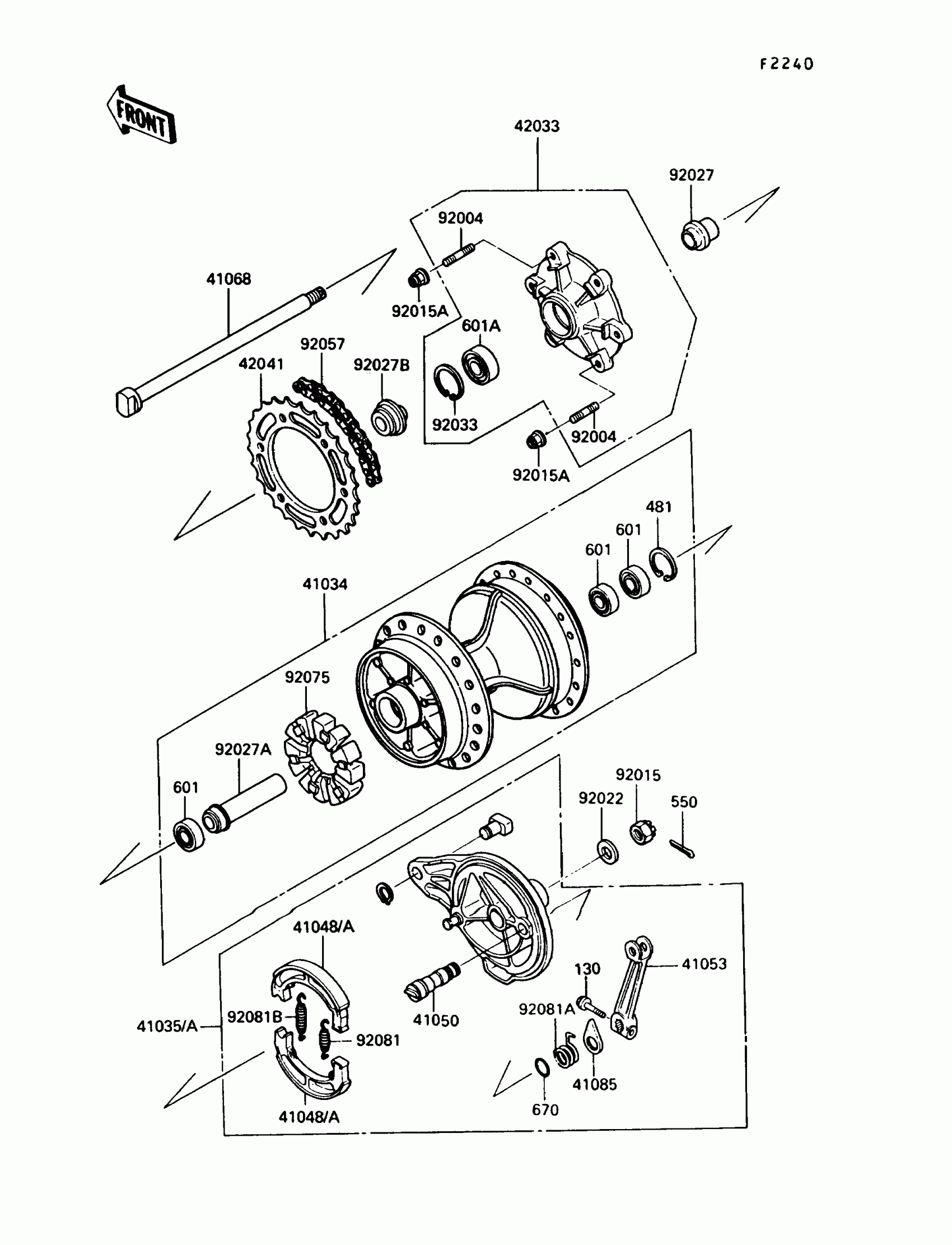

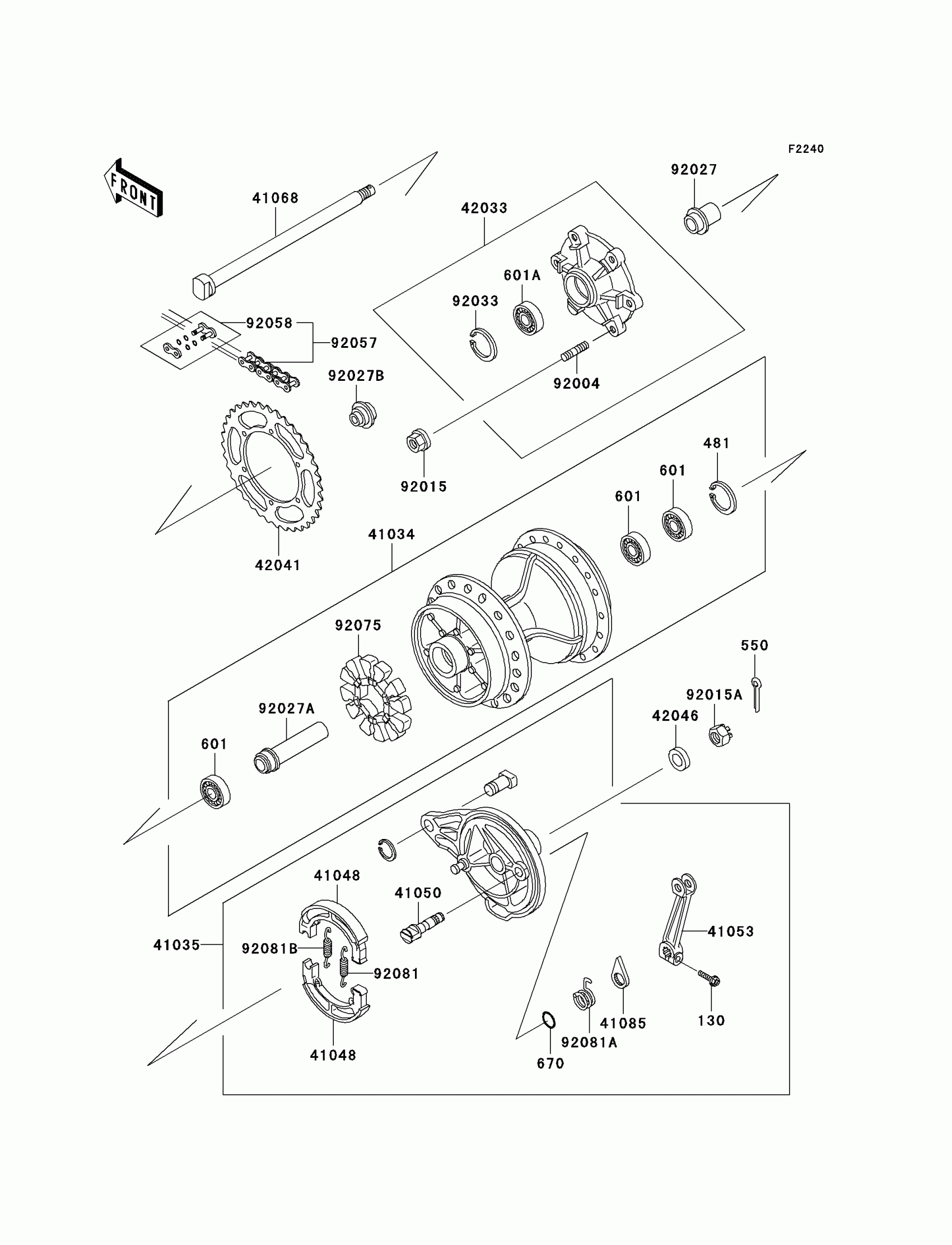

Find the part on the Rear Hub diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$563.92

In stock

41035

PANEL-ASSY-BRAKE,RR

41035-1173

1

$288.19

In stock

41048

SHOE-BRAKE

41048-1056

1

$30.45

In stock

41050

CAM-BRAKE

41050-1058

1

$45.66

In stock

41053

LEVER-BRAKE CAM

41053-1061

1

$87.77

In stock

41068

AXLE,RR

41068-1178

1

$89.46

In stock

41085

INDICATOR

41085-005

1

$12.36

In stock

42033

1

$254.89

In stock

42041

SPROCKET-HUB,44T

42041-1191

1

$75.39

In stock

92004

STUD,8X18

92004-1149

1
Out of stock

92015

NUT,CASTLE,16MM

42045-014

1

$7.86

In stock

92015A

NUT,LOCK,8MM

92015-1506

1
Out of stock

92022

WASHER,17.3X32X3.2

42046-009

1

$7.71

In stock

92027

COLLAR,REAR HUB COUPLING,L=23

92027-1770

1
Out of stock

92027A

1

$38.12

In stock

92027B

COLLAR,REAR HUB COUPLING,L=13

92027-1826

1
Out of stock

92057

1

$194.98

In stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1

$43.39

In stock

92081

SPRING,BRAKE SHOE

92081-1550

1

$9.20

In stock

92081A

SPRING,BRAKE CAM LEVER RETURN

92081-1615

1
Out of stock

92081B

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

481

1

$1.64

In stock

481A

1

$4.88

In stock

550

1

$1.81

In stock

601

1

$20.98

In stock

601A

1

$33.92

In stock

670

O RING,15MM

670B2015

1

$1.25

In stock
