1986 Kawasaki KLR250 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1986 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

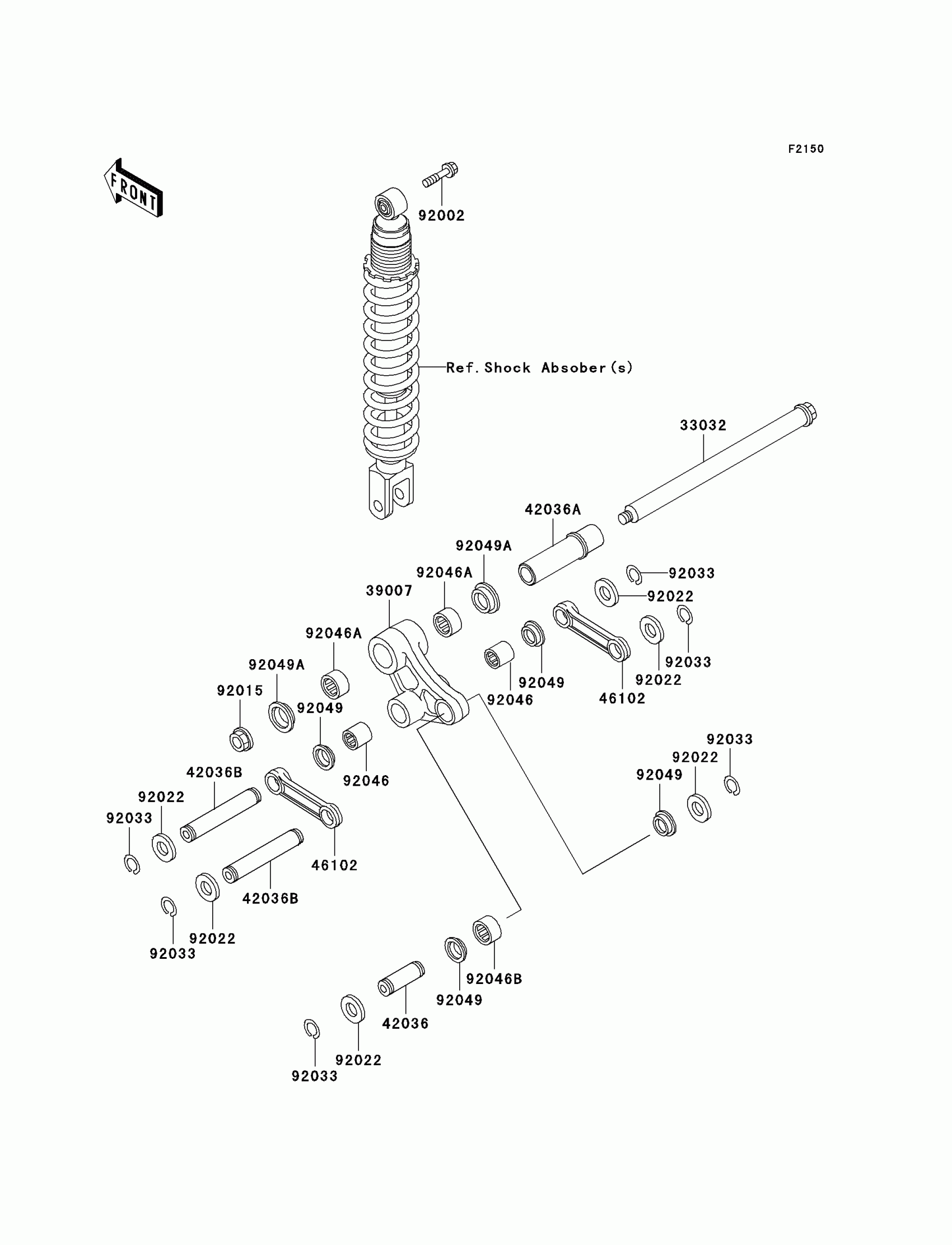

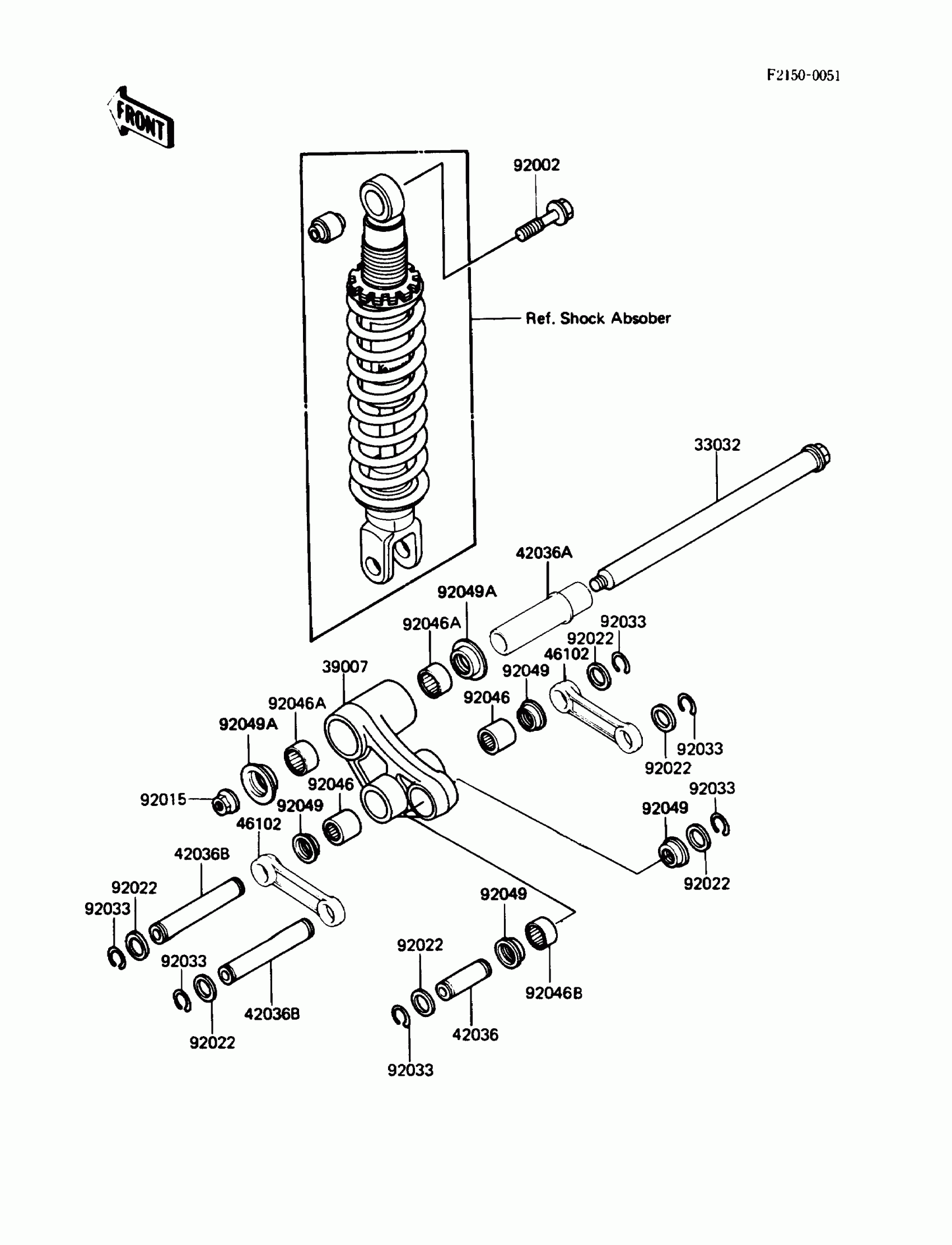

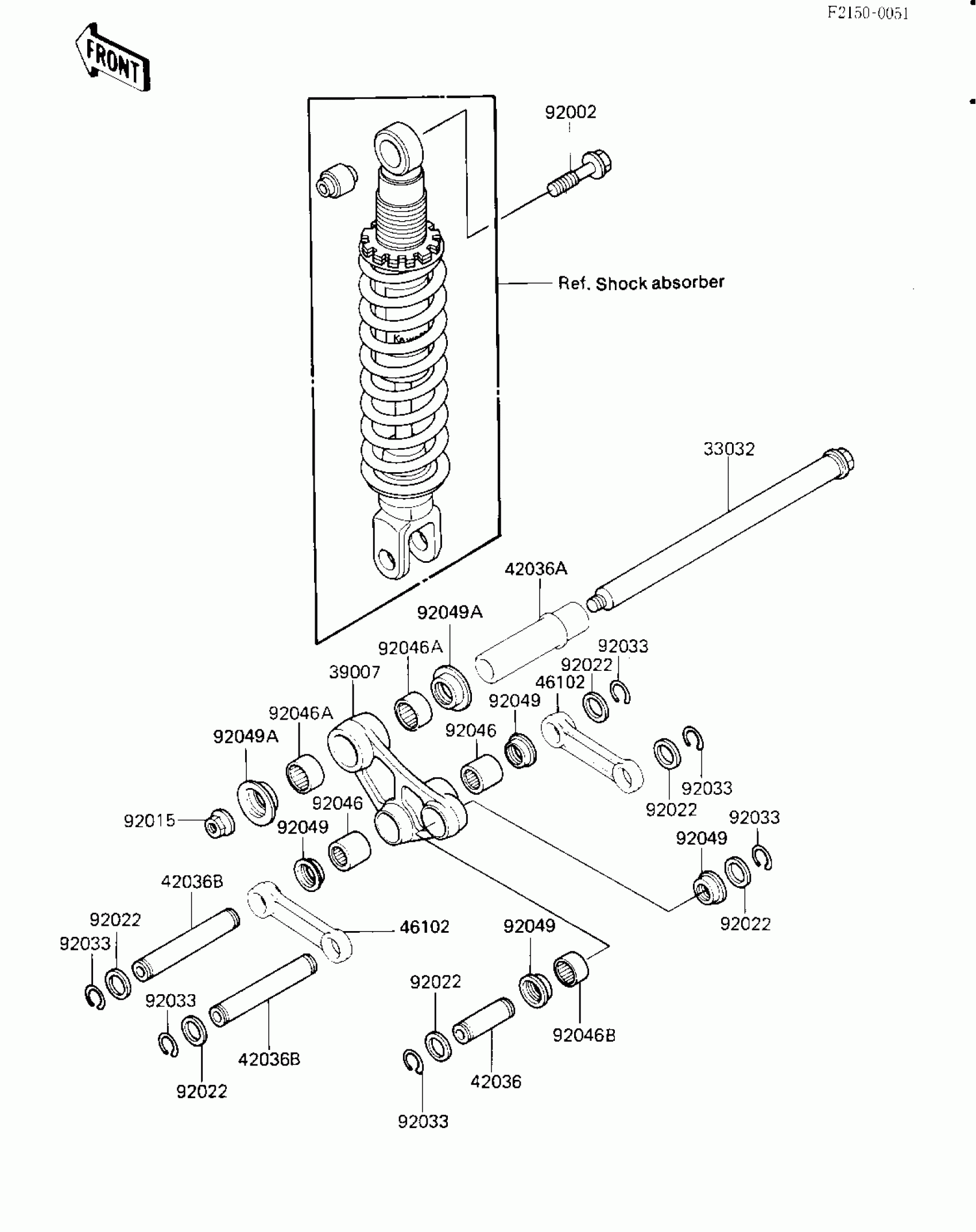

1986 Kawasaki KLR250 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33032

SHAFT-SWING ARM

33032-1111

1
Out of stock

39007

ARM-SUSP,UNI TRAK

39007-1059

1

$329.34

In stock

42036

SLEEVE,L=59

42036-1133

1

$36.05

In stock

42036A

SLEEVE,L=100

42036-1136

1

$81.53

In stock

42036B

SLEEVE,L=121

42036-1140

1

$55.86

In stock

46102

ROD,UNI TRAK

46102-1129

1

$97.08

In stock

92002

BOLT,12X55

92002-1130

1

$10.25

In stock

92015

NUT,14MM

92015-1459

1

$7.86

In stock

92022

WASHER,20.1X28X1

92022-1547

1

$3.85

In stock

92033

RING-SNAP,18.3MM

92033-1168

1

$3.62

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046B

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock
