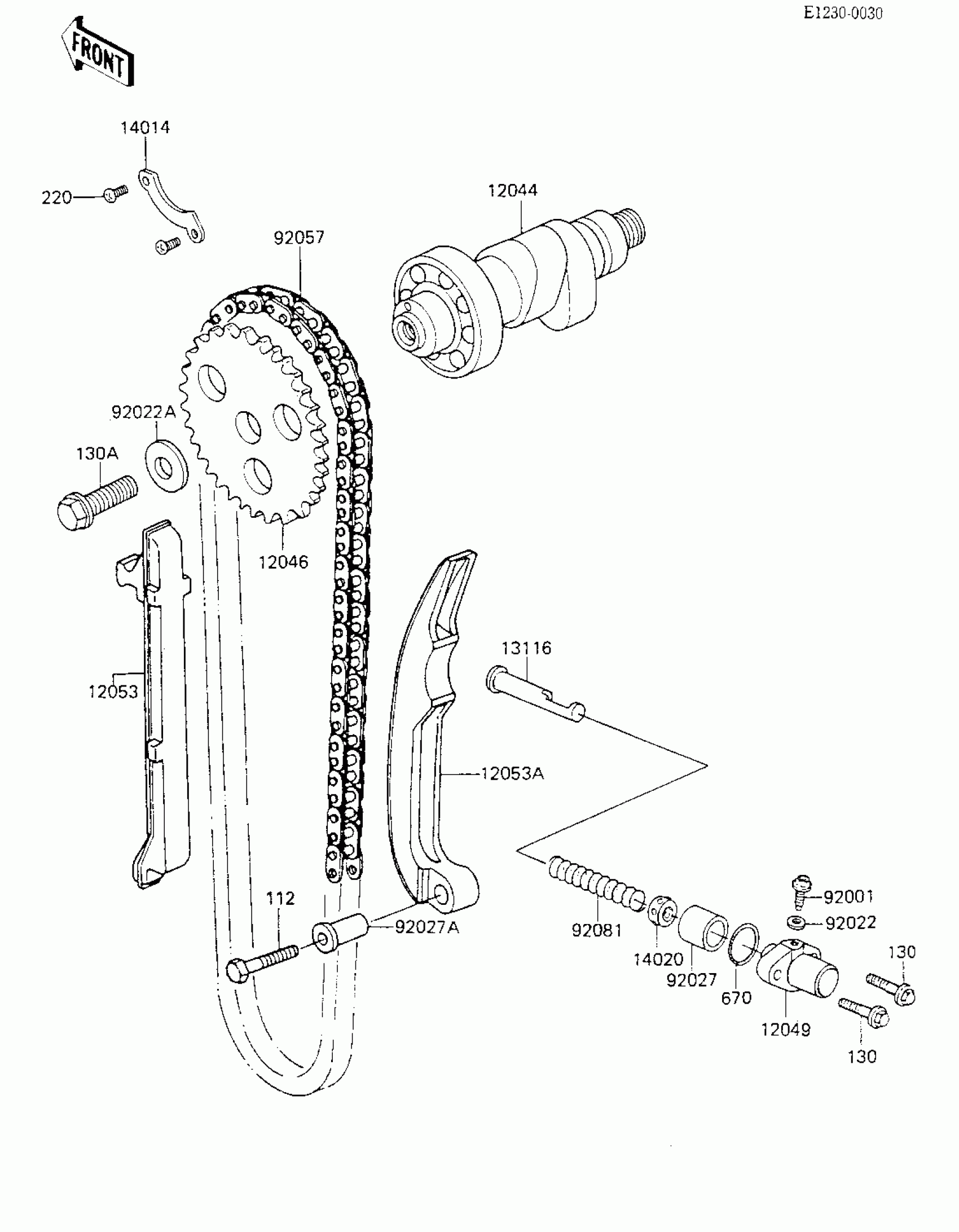

Kawasaki KLR250 CAMSHAFT/CHAIN/TENSIONER Diagram

#

Description
Price

1

BOLT,FLANGED,6X11

92003-208

$3.43

2

SPROCKET,CAM SHAFT

12046-1007

Unavailable

2

SPROCKET,CAM SHAFT

12046-1007

Unavailable

3

CHAIN,CAM

21070-013

$153.78

4

SHAFT,CAM

12044-1040

Unavailable

5

SLIPER,CAM CHAIN

12053-023

$36.81

6

SLIPER,CAM CHAIN

12053-024

$50.08

7

BOLT-UPSET

112G0630

Unavailable

8

COLLAR

92027-155

$6.51

9

ROD,PUSH

13116-1003

Unavailable

10

SPRING,CHAIN TENSINR

92081-131

Unavailable

11

GUIDE,PUSH ROD

92001-1271

$46.07

12

NUT,LOCK

92016-054

$11.76

13

"0" RING,22MM

92055-018

Unavailable

14

CAP,CAM CHAIN TENSION

12064-005

Unavailable

15

WASHER,PLAIN

92022-1029

$0.71

16

WASHER,PLAIN

92022-1030

$4.12
