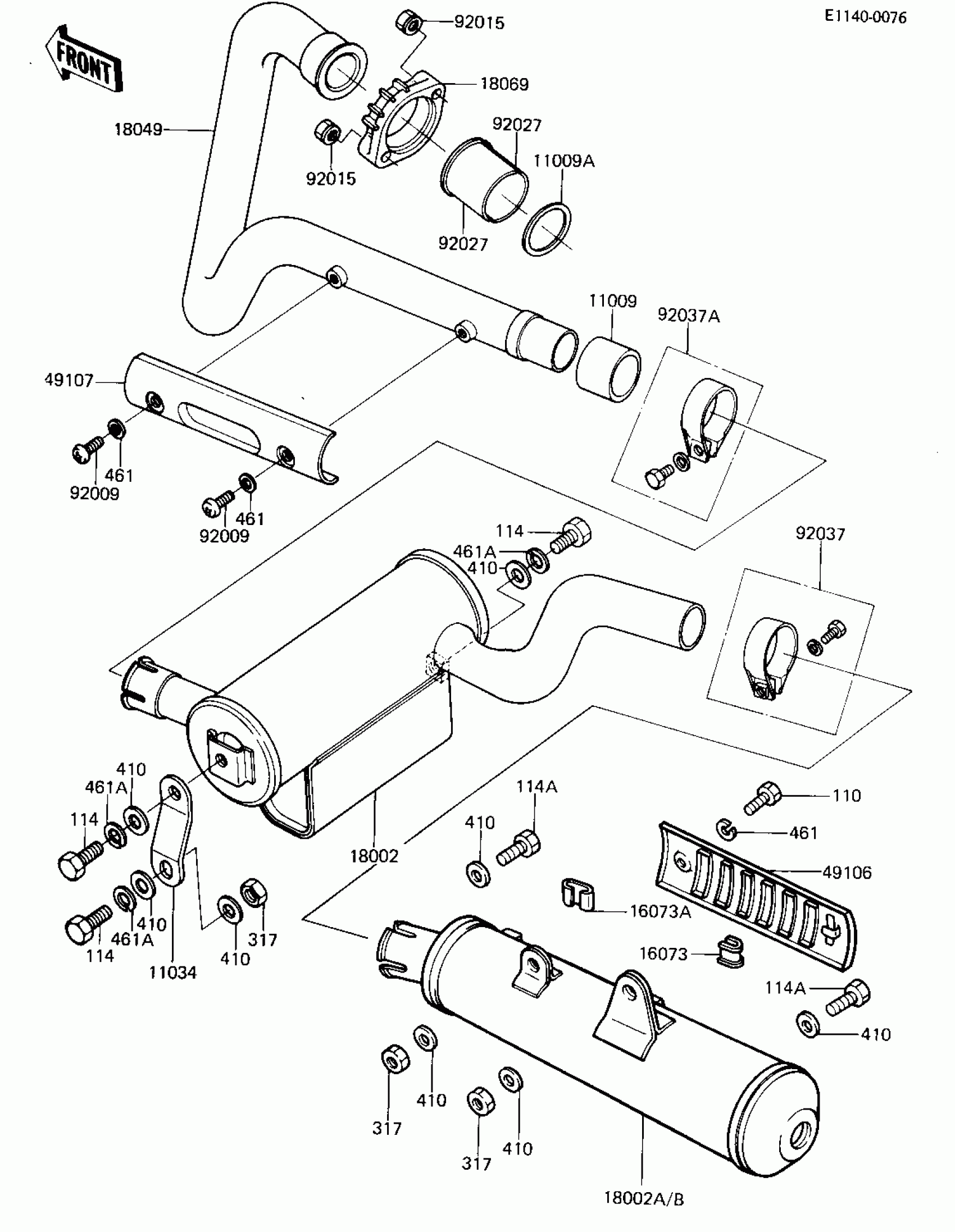

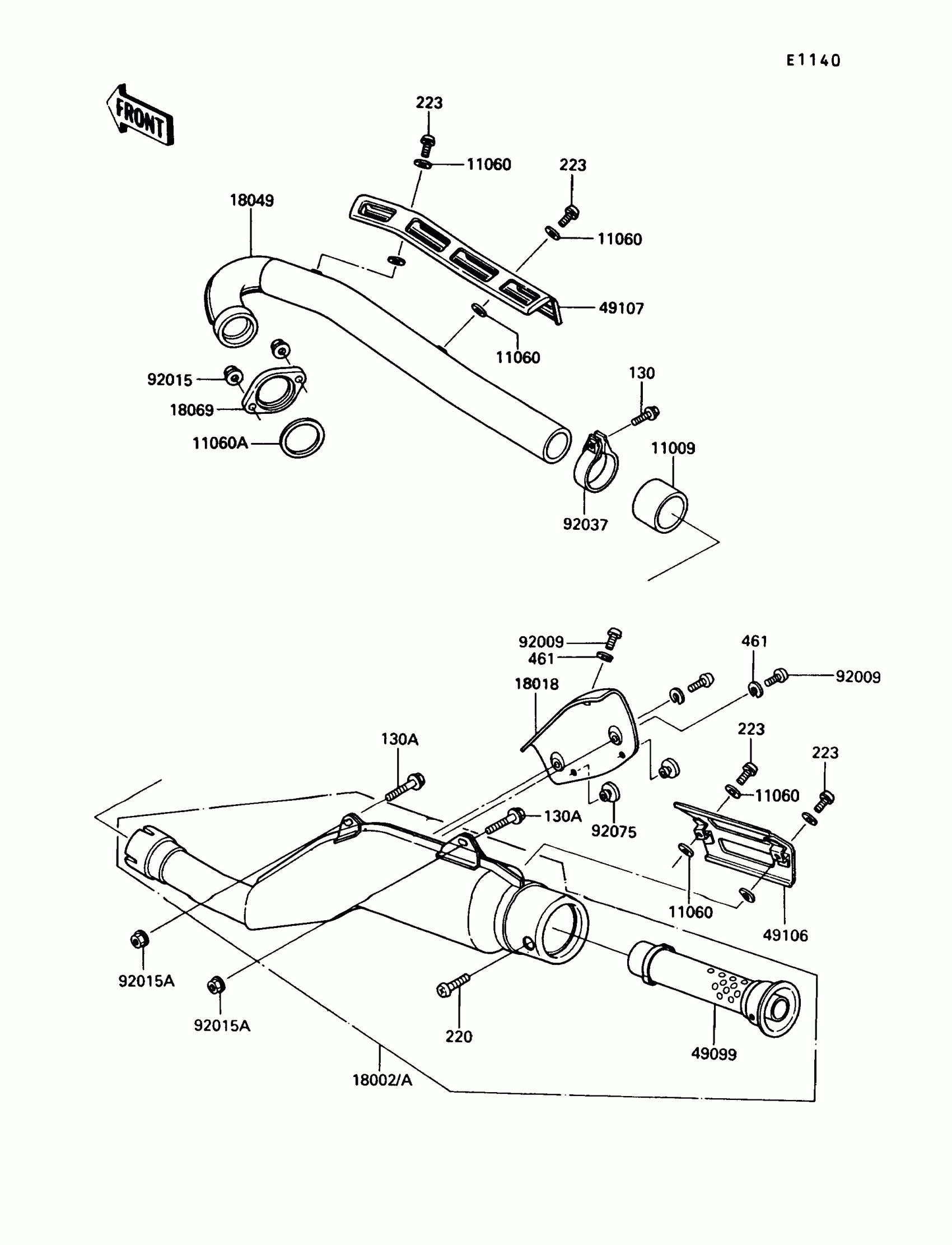

Kawasaki KLR250 MUFFLER Diagram
#
Description
Price
11034
BRACKET,
11034-1734
Unavailable
16073
INSULATOR
18065-007
Unavailable
16073A
INSULATOR,HEAT
18065-010
Unavailable
18002
BODY-COMP-MUFFLER
18002-1276
Unavailable
18002A
BODY-COMP-MUFFLER (Canada)
18002-1240
Unavailable
49107
COVER,EXHAUST PIPE
49107-1001
Unavailable
92037
CLAMP,PIPE,35MM
92037-1223
Unavailable
92037A
CLAMP,MUFFLER,37MM
92037-1243
Unavailable
110
BOLT,6X10
112G0610
Unavailable
114
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
114A
BOLT,8X20
115G0820
Unavailable
317
NUT-HEX-SMALL,8MM
317G0800
Unavailable
410
WASHER PLAIN 8MM
410B0800
Unavailable
411
WASHER PLAIN 6MM
411B0600
Unavailable
461
WASHER SPRING 6MM
461F0600
Unavailable
461A
WASHER SPRING 8MM
461F0800
Unavailable
