1986 Kawasaki KLR250 Brake Pedal Diagram

← All diagrams

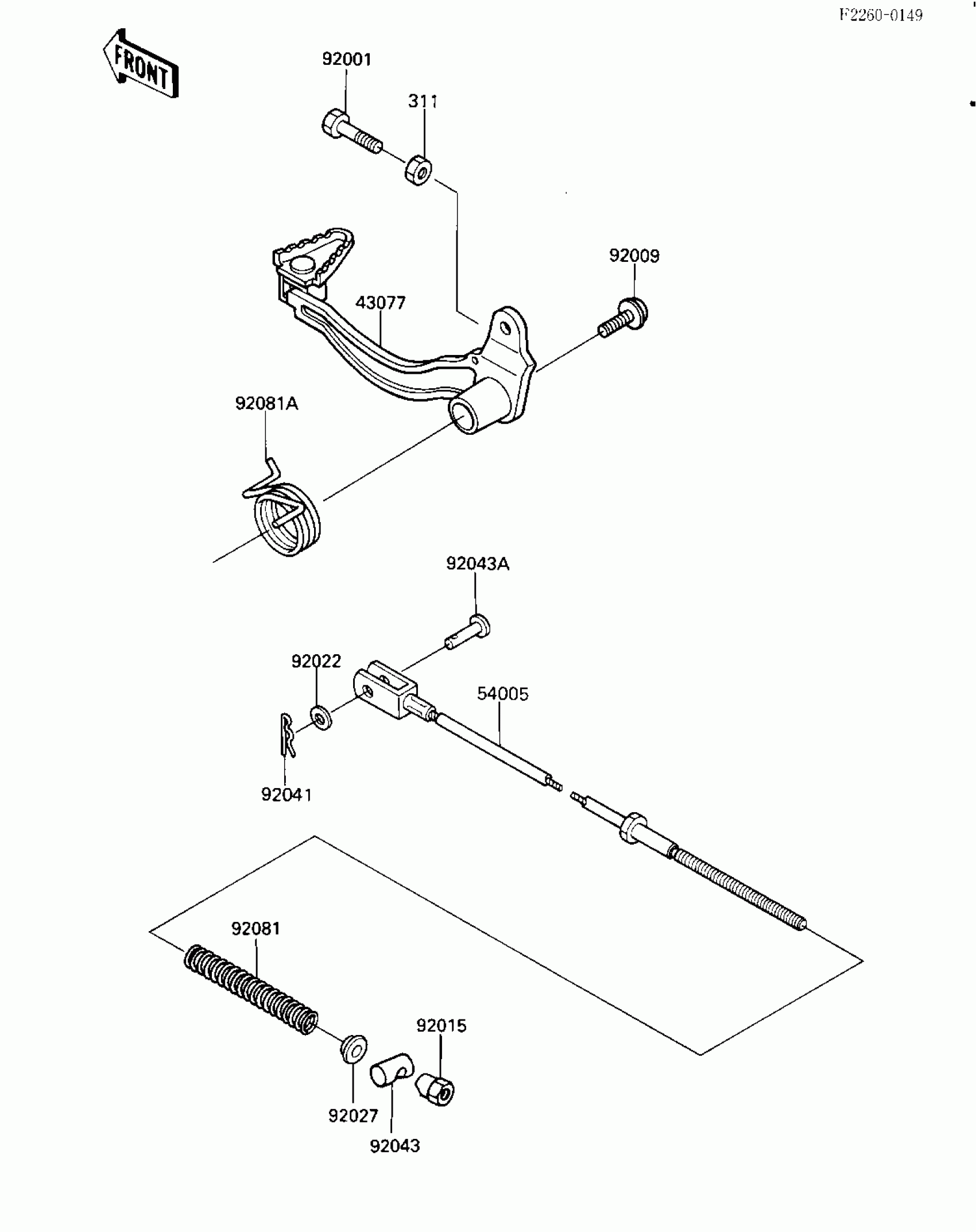

Find the part on the Brake Pedal diagram for your 1986 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLR250 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43077

1

$124.50

In stock

54005

CABLE-BRAKE,RR

54005-1108

1

$58.39

In stock

92001

BOLT,6X25

92001-1090

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92022

1

$1.19

In stock

92027

COLLAR

92027-122

1

$6.83

In stock

92041

COTTER,2.0X15

92041-1052

1

$0.94

In stock

92043

PIN,BRAKE ROD

92043-065

1

$4.42

In stock

92043A

PIN,6X14.5

92043-125

1

$5.21

In stock

92081

SPRING,REAR BRAKE CABLE

92081-1610

1
Out of stock

92081A

1

$12.36

In stock

311

NUT 6MM

311B0600

1
Out of stock
