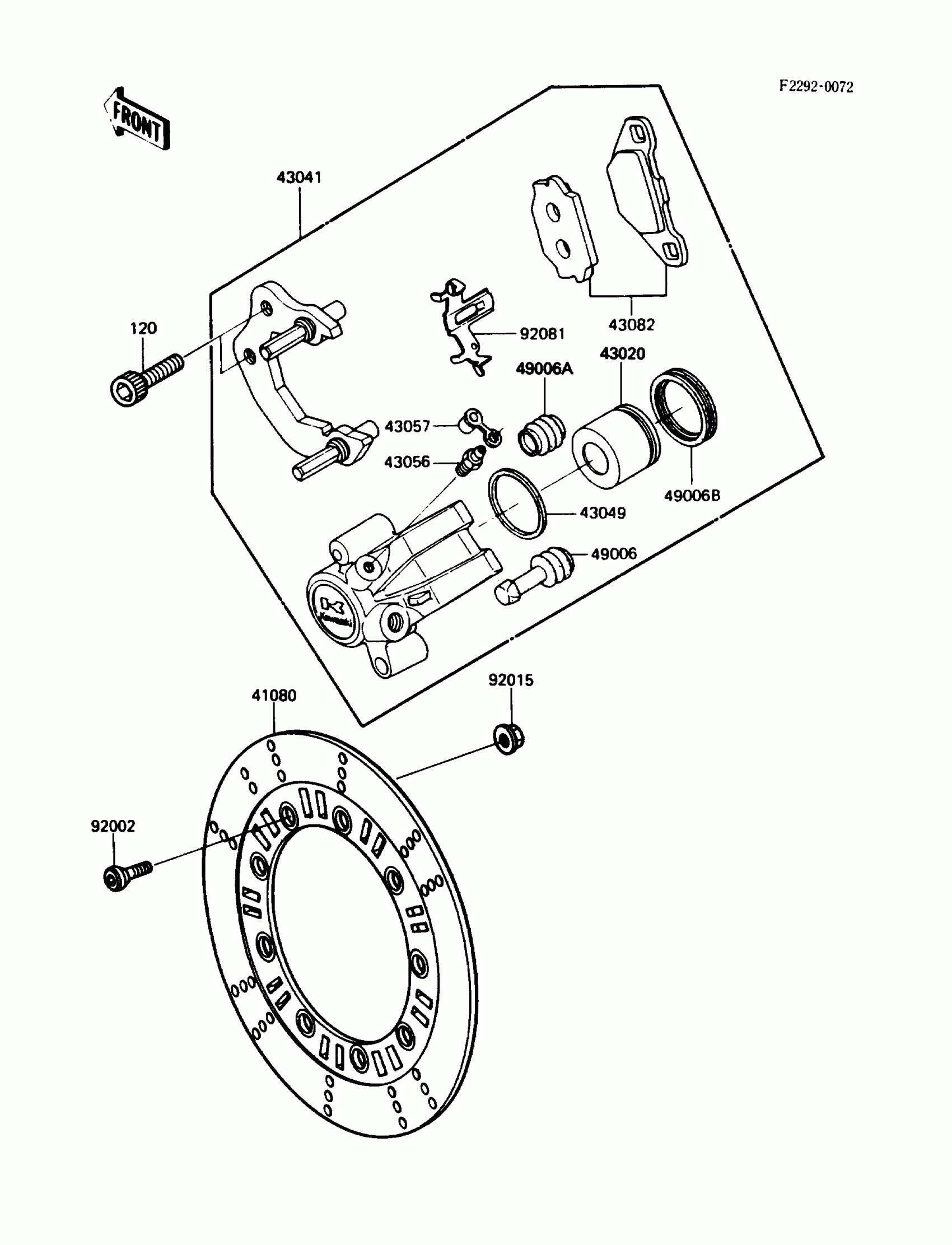

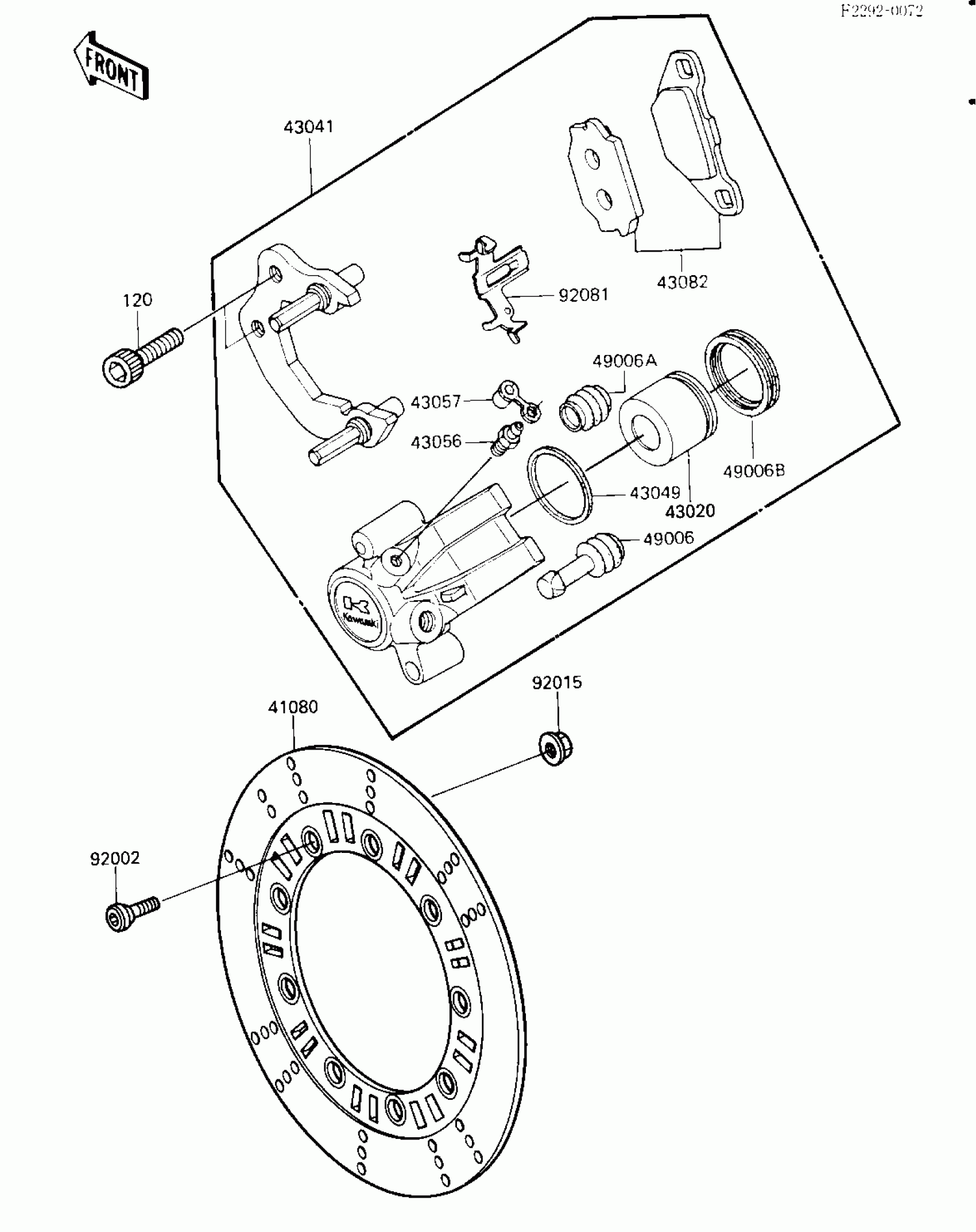

Find the part on the Front Brake diagram for your 1986 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLR250 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,SILVER

41080-1145

1

$359.29

In stock

43020

PISTON-COMP-BRAKE

43020-1082

1

$74.19

In stock

43041

CALIPER-ASSY,FR,LH

43041-1357

1

$509.44

In stock

43049

PACKING,PISTON SEAL

43049-1026

1

$10.38

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE,FR

43082-1056

1

$60.03

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1055

1

$5.78

In stock

49006B

BOOT,PISTON

49006-1091

1

$13.67

In stock

92002

BOLT,DISC PLATE,6X16

92001-1987

1
Out of stock

92015

1

$1.20

In stock

92081

SPRING,PAD

92081-1341

1

$12.00

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock
← Brake Pedal Front Master Cylinder →
