2012 Kawasaki KLR™650 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2012 Kawasaki KLR™650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

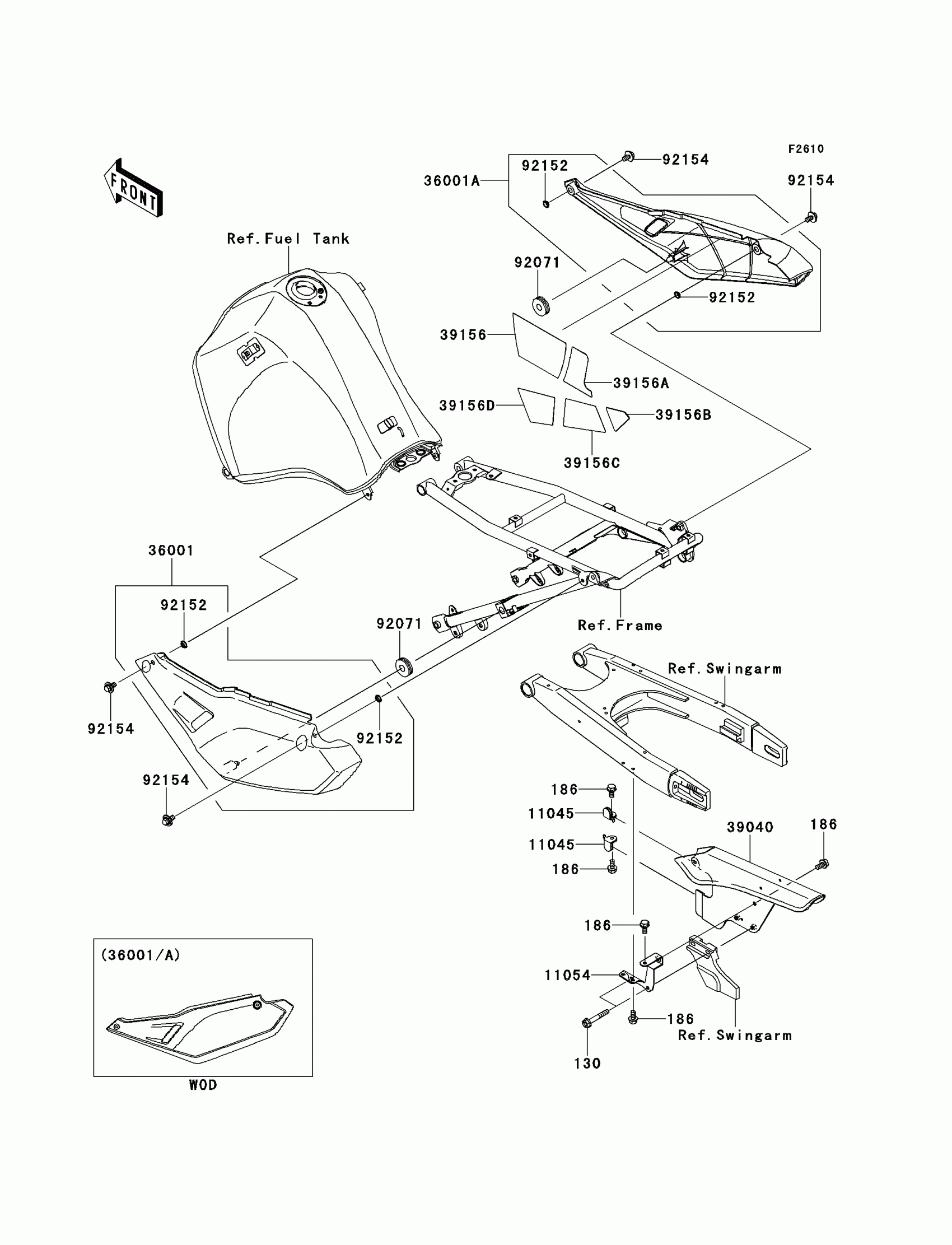

2012 Kawasaki KLR™650 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X40

130BA0640

1
Out of stock

186

BOLT-UPSET-WP,6X12

186BA0612

1
Out of stock

11045

BRACKET,CHAIN CASE,FR

11045-1335

1
Out of stock

11054

BRACKET,CHAIN CASE,RR

11054-0390

1
Out of stock

36001

COVER-SIDE,LH,EBONY

36001-0098-6C

1
Out of stock

36001A

COVER-SIDE,RH,EBONY

36001-0099-6C

1
Out of stock

39040

COVER-ASSY-CHAIN CASE

39040-0003

1
Out of stock

39156

PAD,SIDE COVER,RH,UPP,FR

39156-0652

1
Out of stock

39156A

PAD,SIDE COVER,RH,UPP,RR

39156-0653

1
Out of stock

39156B

PAD,SIDE COVER,RH,LWR,RR

39156-0654

1
Out of stock

39156C

PAD,SIDE COVER,RH,LWR,CNT

39156-0655

1
Out of stock

39156D

PAD,SIDE COVER,RH,LWR,FR

39156-0656

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-0369

1
Out of stock
