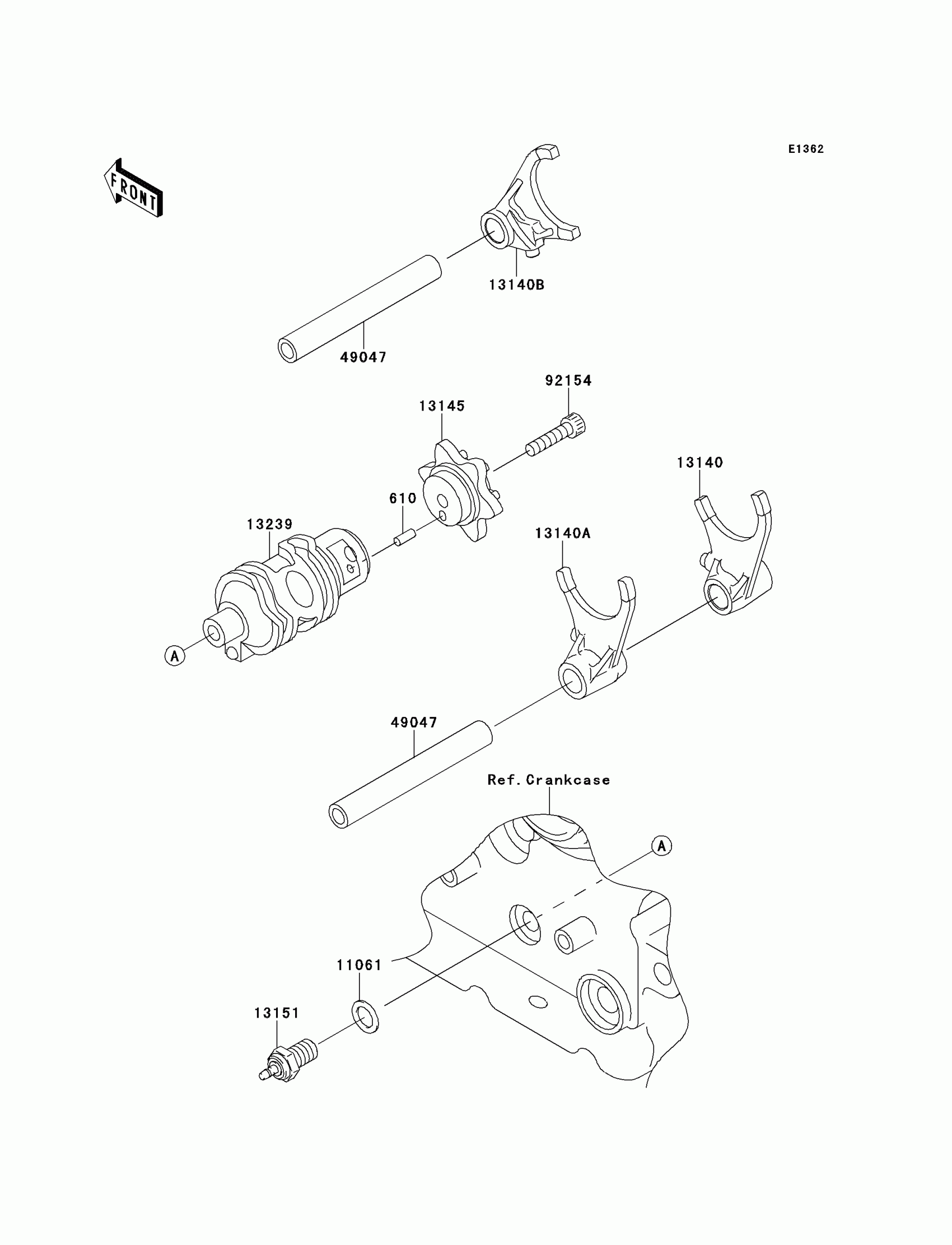

Kawasaki KLR650 New Edition Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

610

ROLLER,4X10

610A0410

$3.29

11061

GASKET,10.5X16X1

11061-0373

$2.79

13140

FORK-SHIFT,LOW

13140-1023

$99.73

13140A

FORK-SHIFT,2ND&3RD

13140-1024

$99.73

13140B

FORK-SHIFT,4TH&TOP,36MM

13140-1288

$103.02

13145

CAM-CHANGE DRUM

13145-0050

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1102

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1103

$180.94

49047

ROD-SHIFT,L=93.7

49047-0039

$25.29

92154

BOLT,SOCKET,6X25

92154-0477

$1.43
