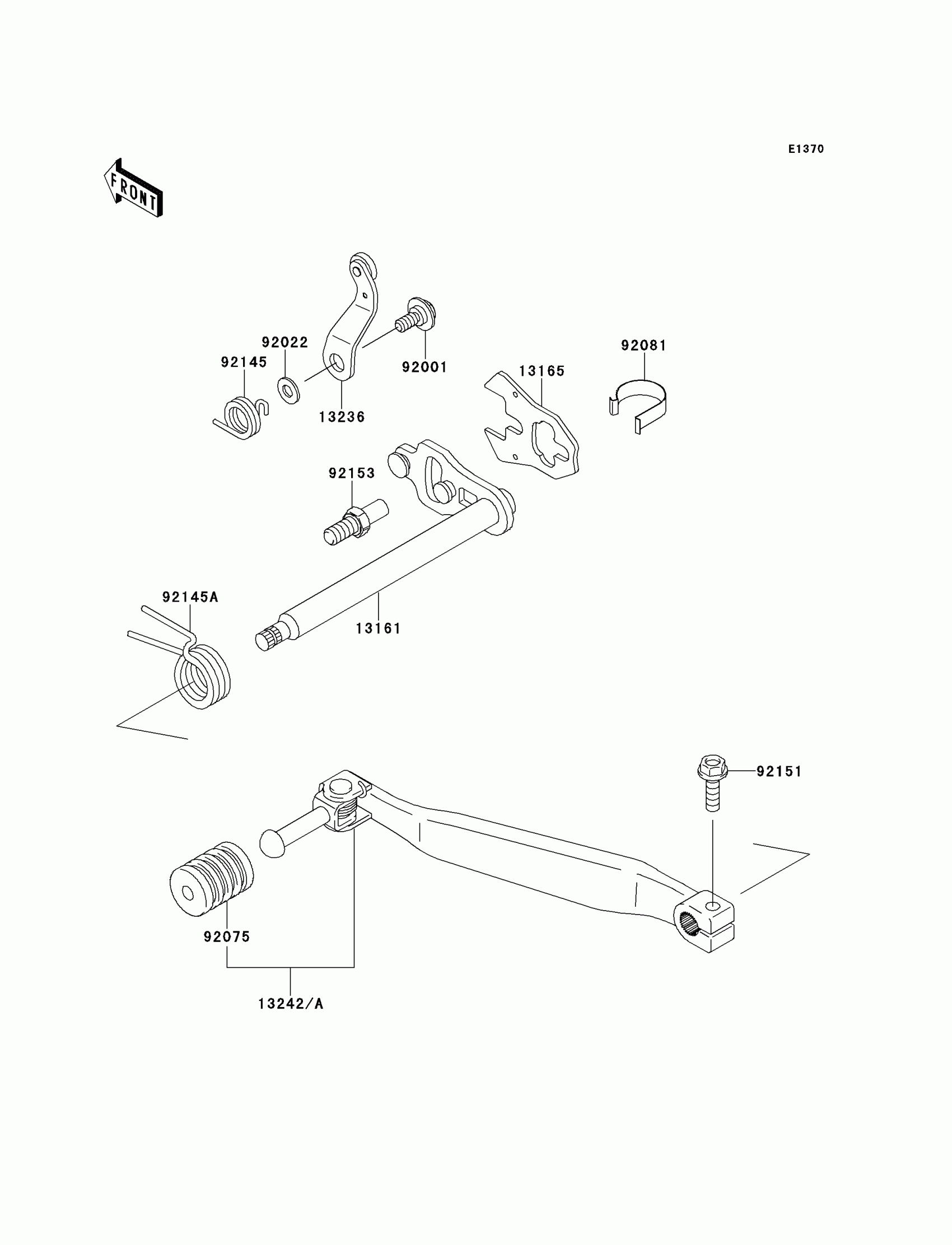

Kawasaki KLR650 New Edition Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0065

$69.44

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP

13236-0200

$8.95

13242A

LEVER-ASSY-CHANGE

13242-0080

$54.57

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92075

DAMPER,CHANGE PEDAL

92075-1944

$8.44

92081

SPRING,CHANGE LEVER

92081-1493

$5.55

92145

SPRING

92145-0773

$8.85

92145A

SPRING,CHANGE PEDAL RETURN

92145-0774

$10.88

92151

BOLT,6X20

92151-1450

$1.76

92153

BOLT,8X15.5

92153-0720

$4.85
