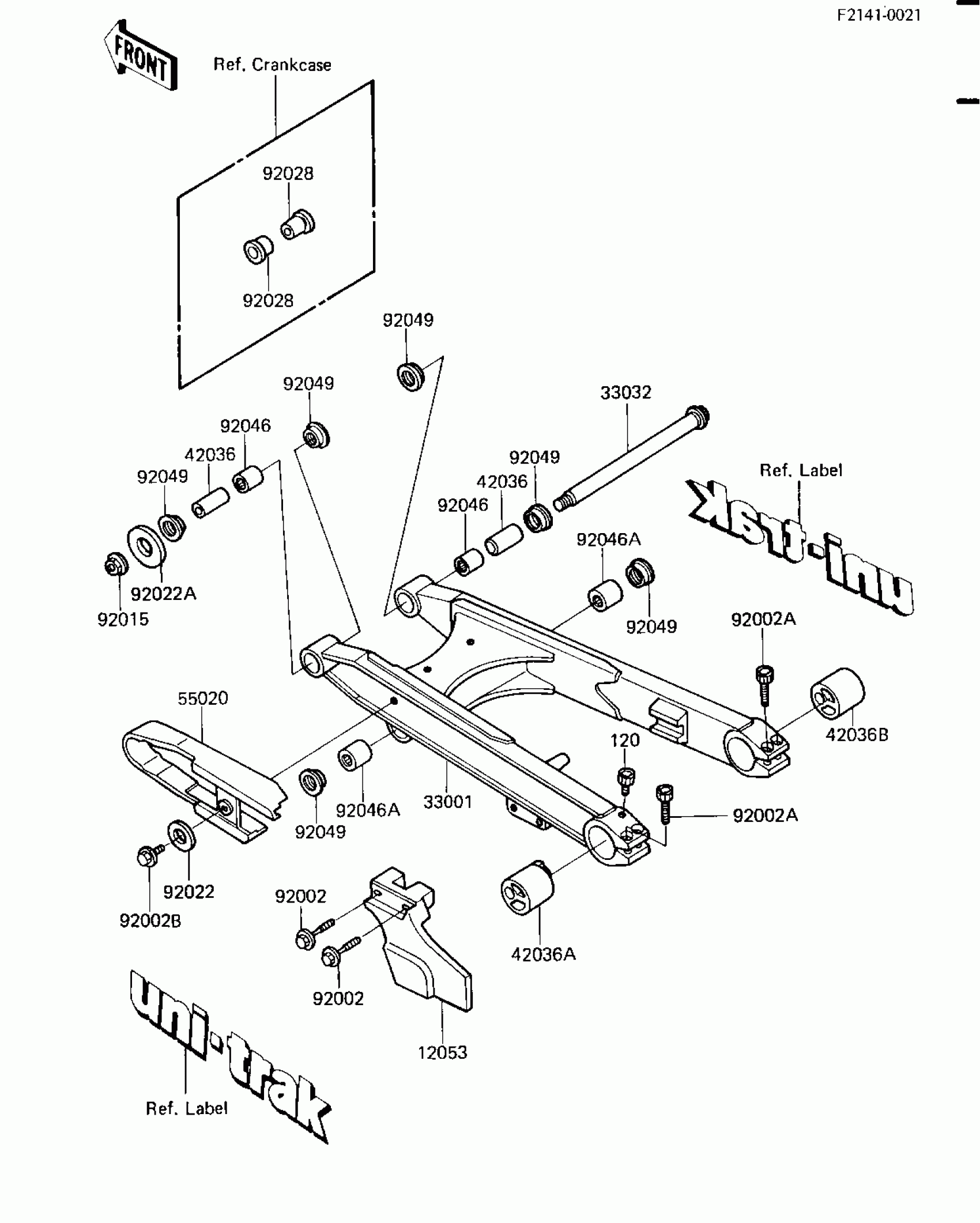

Find the part on the Swing Arm diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KL600 Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN,RR

12053-1104

1

$65.60

In stock

33001

ARM-COMP-SWING

33001-1202

1

$420.62

In stock

33032

SHAFT-SWING ARM

33032-1106

1

$83.56

In stock

42036

SLEEVE,15.1X20X42.5

42036-1103

1

$19.97

In stock

42036A

SLEEVE,AXLE,LH

42036-1104

1
Out of stock

42036B

SLEEVE,AXLE,RH

42036-1105

1
Out of stock

55020

GUARD,CHAIN,FR

55020-1154

1

$139.08

In stock

92002

BOLT,6X45

92002-1088

1

$4.15

In stock

92002A

BOLT,SOCKET,8X35

92002-1180

1
Out of stock

92002B

BOLT,5X12

92002-1185

1

$1.44

In stock

92015

NUT,14MM

92015-1459

1

$7.86

In stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92022A

WASHER,16X32X3.2

92022-1701

1

$4.17

In stock

92028

BUSHING,SWING ARM

92028-1261

1

$16.31

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BTM202730

92046-1113

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

120

BOLT-SOCKET

120Z0512

1
Out of stock
