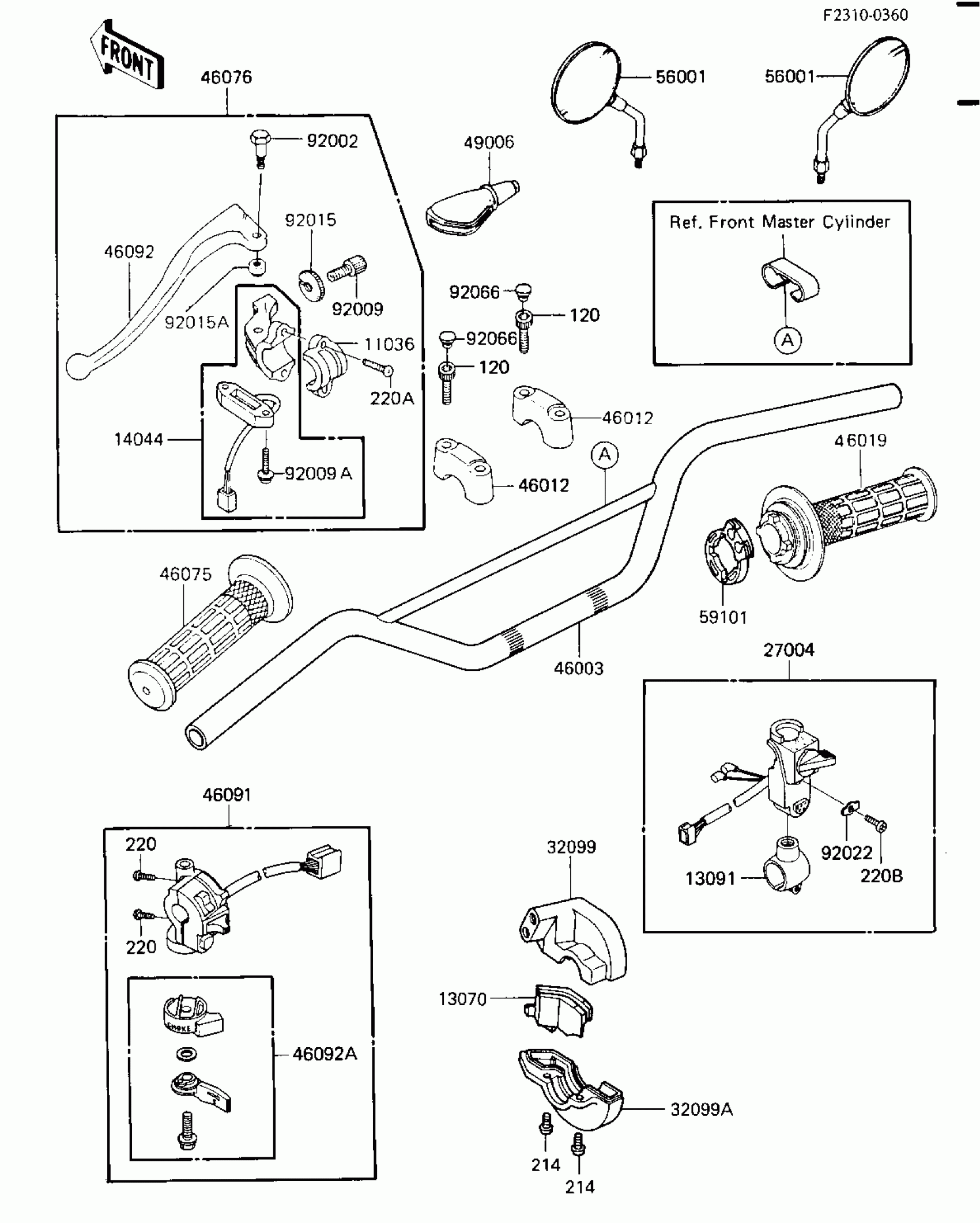

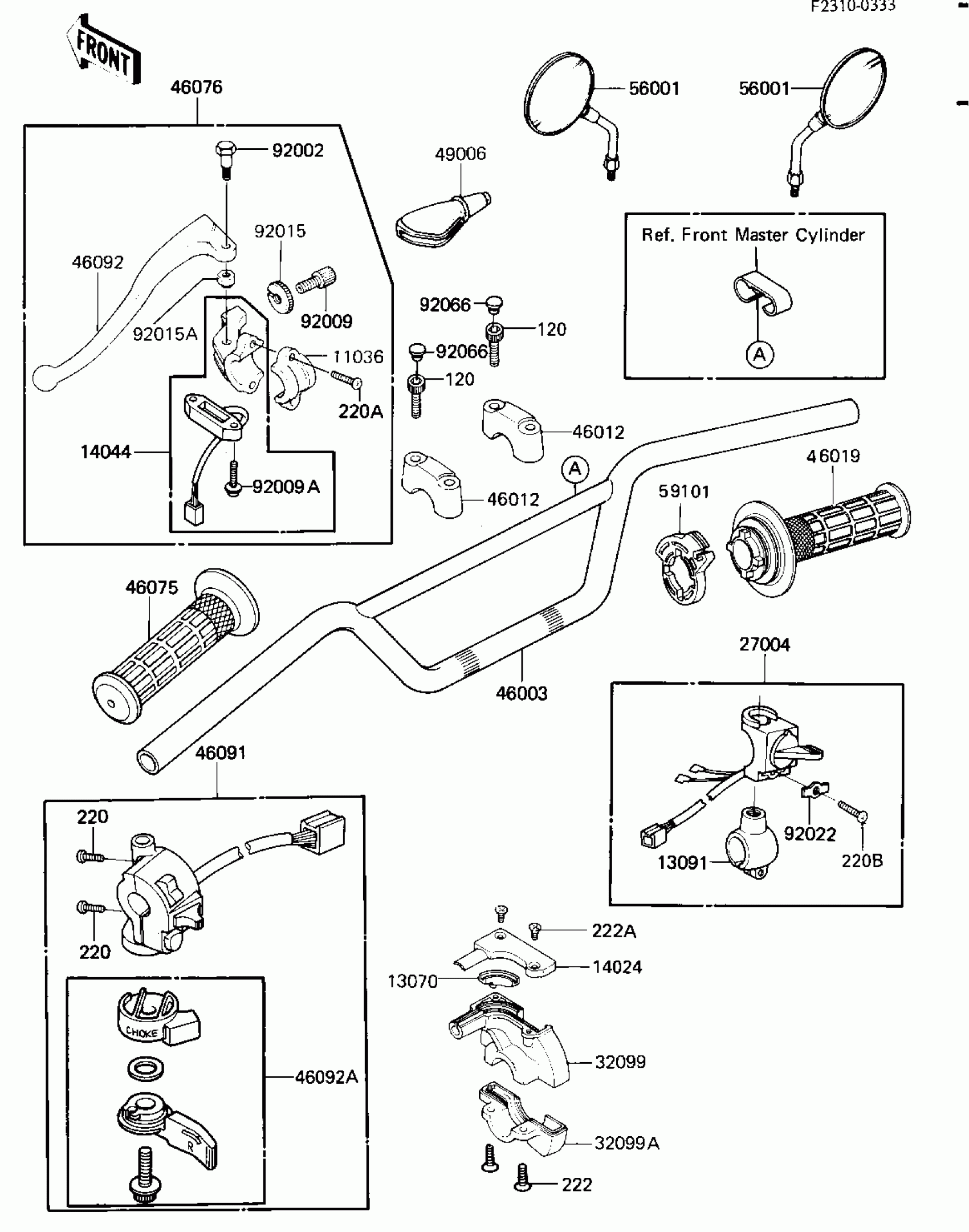

Kawasaki KL600 HANDLEBAR Diagram

#

Description
Price

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE PEACE

13070-1117

$8.95

13091

HOLDER,ENGINE STOP SWITCH

13091-1255

Unavailable

14024

COVER,THROTTLE CASE UPP

14025-1646

$7.13

14044

HOLDER-CABLE,CLUTCH

14044-1052

$77.05

27004

SWITCH-ASSY,ENGINE STOP

27004-1056

Unavailable

32099

CASE,THROTTLE UPP

32099-1036

$31.63

32099A

CASE,THROTTLE LWR

32099-1044

Unavailable

46003

HANDLE

46003-1153

$140.02

46012

HOLDER-HANDLE,UPP

46012-1102

$31.44

46019

GRIP-ASSY,THROTTLE

46019-1054

$31.90

46075

GRIP,LH

46075-1051

$21.77

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1129

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-1309

$207.81

46092

LEVER-GRIP,CLUTCH

46092-1111

Unavailable

46092A

LEVER-GRIP,CHOKE

46092-1123

$13.64

49006

BOOT,LEVER HOLDER

49006-1099

$17.80

56001

MIRROR-ASSY

56001-1204

$45.16

59101

REEL,THROTTLE

59101-1104

$18.17

92002

BOLT,LEVER SET

92002-1475

$8.05

92009

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

92009A

SCREW,TAPPING

92009-1336

Unavailable

92015

NUT,CABLE ADJUST

46056-006

$6.82

92015A

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,ENGINE STOP SWITCH

92022-1474

$20.73

92066

PLUG

92066-1216

$3.54

120

BOLT-SOCKET,8X30

120S0830

Unavailable

220

SCREW-PAN-CROS

220C0514

$1.33

220A

SCREW-PAN-CROS, 6X14

220C0614

Unavailable

220B

SCREW-PAN-CROS, 6X20

220C0620

Unavailable

222

SCREW-CSK-RD-CROS

222C0518

$4.15

222A

SCREW-CSK-RD-CROS,4X12

222E0412

$1.85
