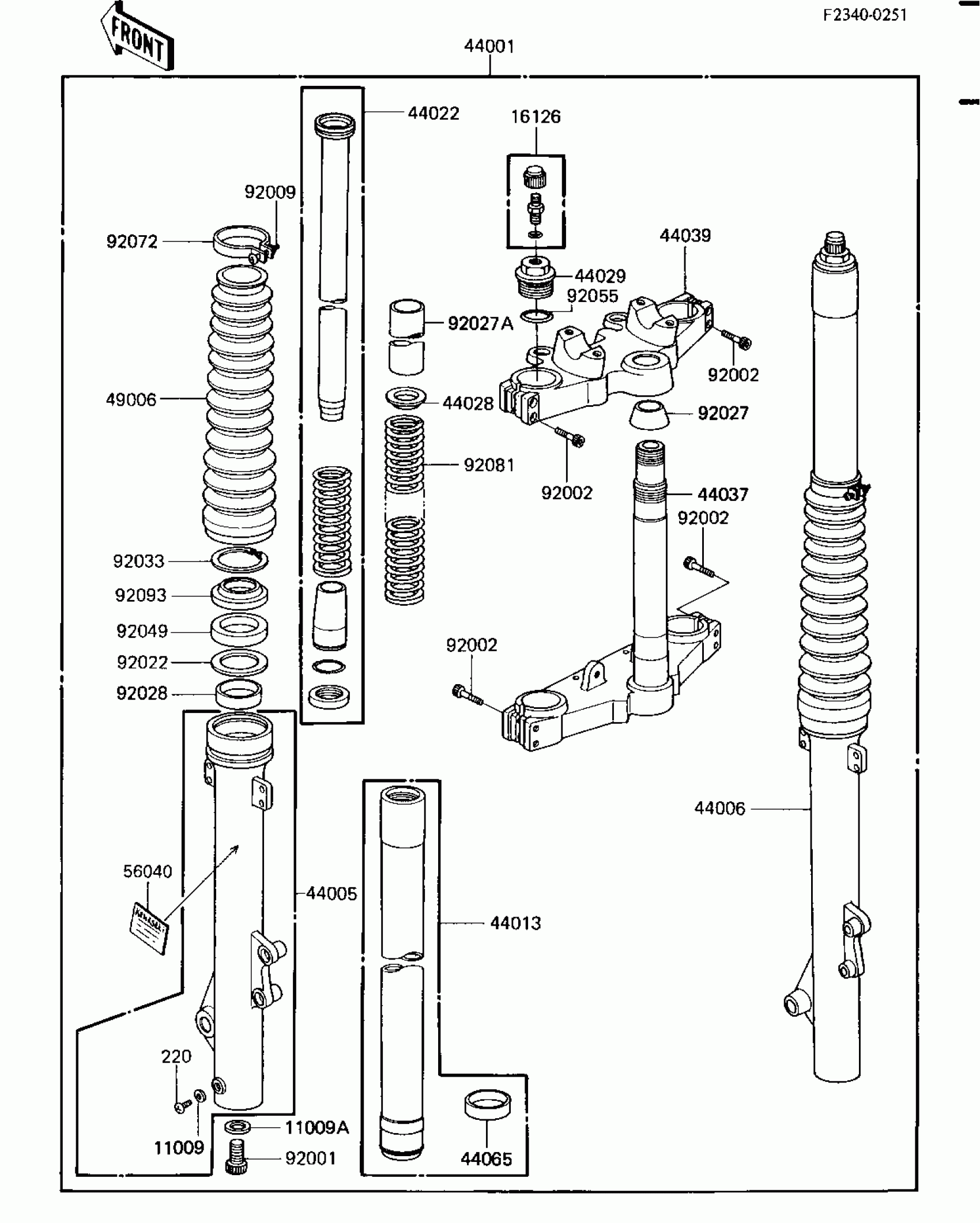

Kawasaki KL600 FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11009A

GASKET,FORK DRAIN PLUG

44045-002

$3.95

16126

VALVE,AIR

16126-1052

$31.36

16126A

VALVE,AIR

16126-1113

$83.94

44001

FORK-FRONT

44001-1511

$1,212.09

44005

PIPE-LEFT FORK OUTER

44005-1215

$346.84

44006

PIPE-RIGHT FORK OUTER

44006-1214

$292.37

44013

PIPE-FORK INNER

44013-1218

$348.77

44022

CYLINDER-FORK

44022-1166

$109.16

44028

GUIDE-FORK SPRING

44028-1003

Unavailable

44029

SEAT-FORK SPRING

44029-1042

$73.52

44037

HOLDER-FORK-UNDER

44037-1171

$232.78

44039

HOLDER-FORK UPPER

44039-1101

$154.34

49006

BOOT,FORK

49006-1166

$82.13

56040

LABEL-WARNING,FRONT FORK

56040-1120

Unavailable

92001

BOLT,FORK CYLINDER

92001-1309

$5.81

92002

BOLT,SOCKET,8X32

92002-1277

$9.20

92009

SCREW,4X16

92009-1348

$4.76

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92027

COLLAR,FORK SPRING

92027-1790

$31.22

92027A

COLLAR,UPPER BRACKET

92027-1791

$67.15

92028

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$21.02

92028A

BUSHING,FORK PIPE

92028-1126

$43.57

92033

RING-SNAP,FORK

92033-1047

$4.84

92033A

RING-SNAP,AIR VALVE

92033-1175

$7.75

92049

SEAL-OIL,FRONT FORK

92049-1180

$17.88

92055

RING-O,FORK TOP CAP

92055-1050

$4.71

92072

BAND,BOOT

92072-1171

Unavailable

92081

SPRING,FRONT FORK

92081-1722

$58.32

92081A

SPRING,FRONT FORK

92081-1734

$6.54

92093

SEAL,FRONT FORK

92093-1166

$13.75

220

SCREW PAN HEAD 4X8

220B0408

Unavailable
