1984 Kawasaki KL600 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

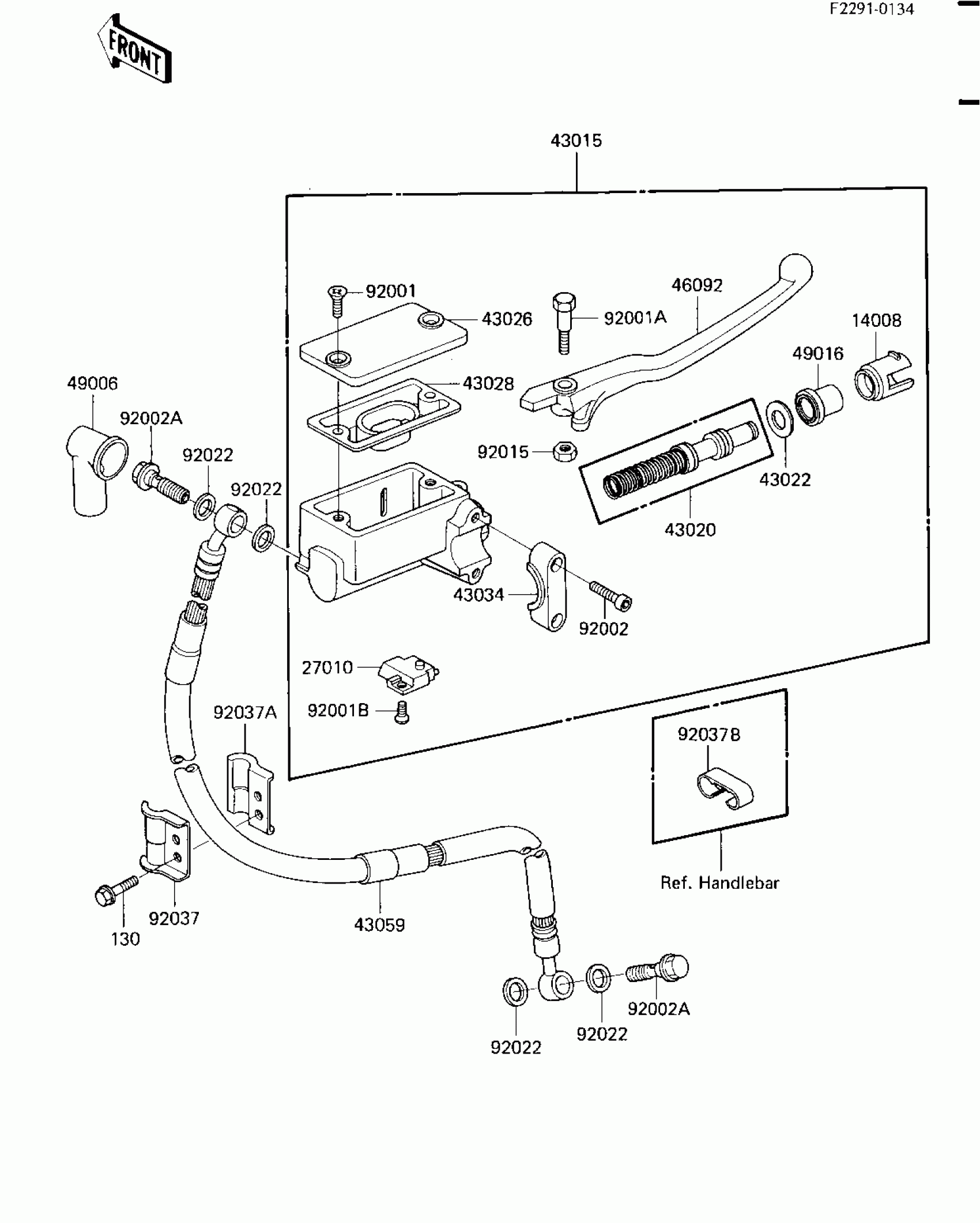

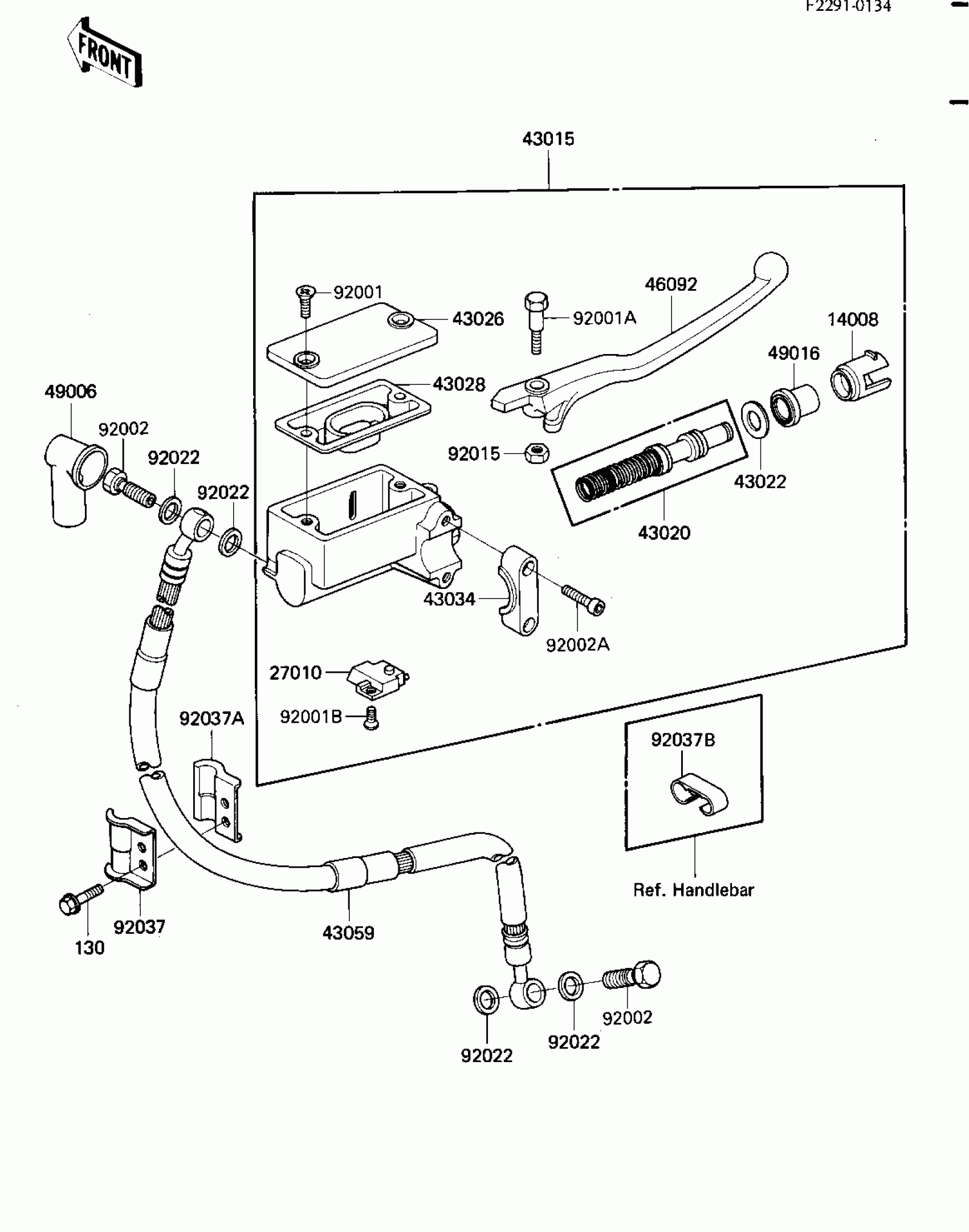

1984 Kawasaki KL600 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER

14008-1030

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1257

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1021

1

$67.26

In stock

43022

STOPPER-BRAKE

43022-1008

1
Out of stock

43026

CAP-BRAKE

43026-1020

1

$39.94

In stock

43028

DIAPHRAGM

43028-1022

1
Out of stock

43034

1

$31.25

In stock

43059

HOSE-BRAKE,L=1380

43059-1255

1
Out of stock

46092

1

$47.96

In stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

COVER-SEAL

49016-1035

1
Out of stock

92001

1

$4.84

In stock

92001A

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002A

BOLT,SOCKET,6X22

92002-1326

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

1

$5.84

In stock

92037A

1

$5.84

In stock

92037B

CLAMP,BRAKE HOSE

92037-1529

1

$12.00

In stock

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock
