1976 Kawasaki KH500-A8 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

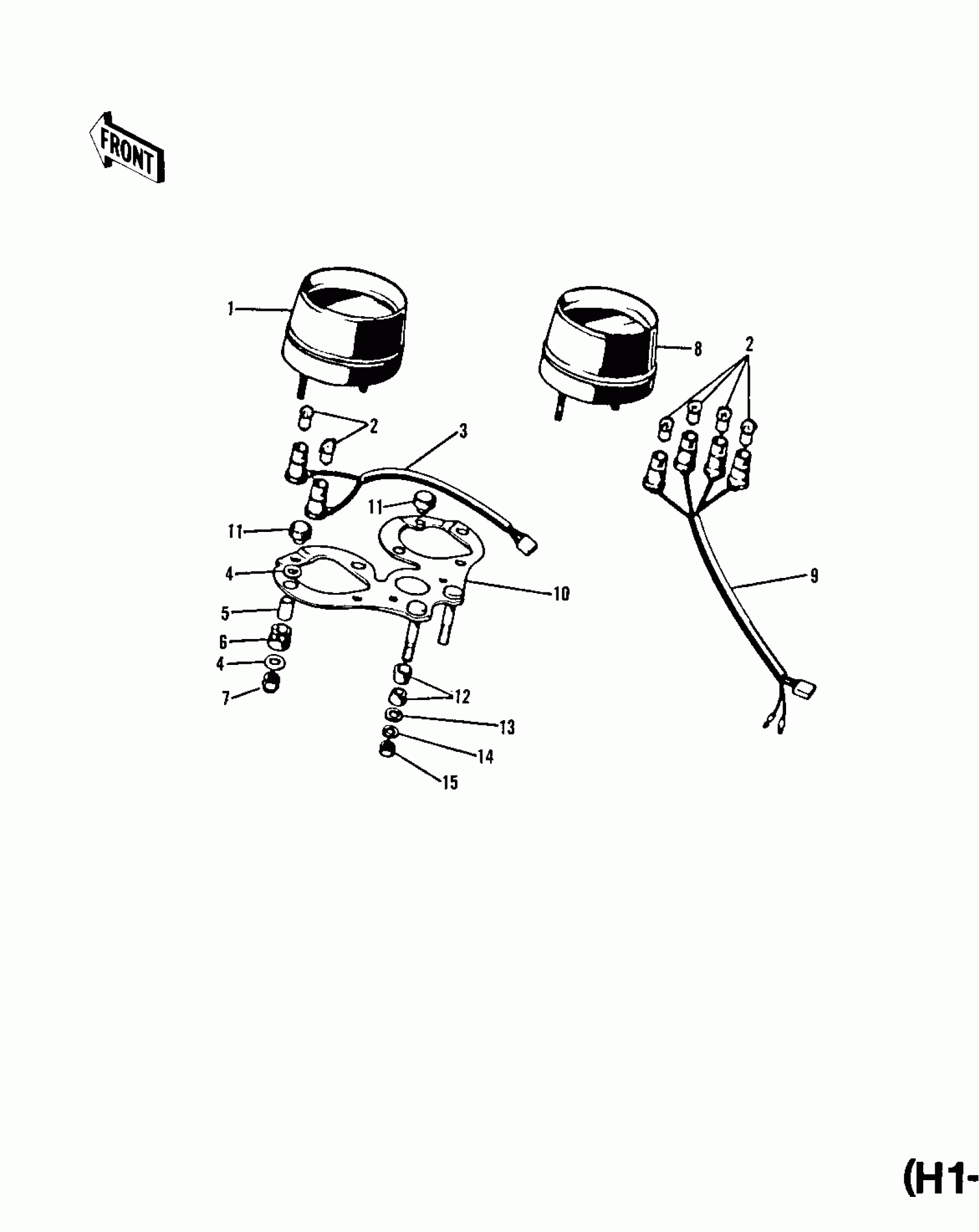

1976 Kawasaki KH500-A8 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY,MPH

25005-052

1
Out of stock

2

BULB 12V 3W

92069-018

1
Out of stock

3

SOCKET-SPEEDOMETER

25011-020

1
Out of stock

4

WASHER-METER FITTING

92022-194

1
Out of stock

5

COLLAR

92027-140

1
Out of stock

6

DAMPER RUBBER-MTR FIT

92075-089

1
Out of stock

7

NUT,6MM

92015-009

1
Out of stock

8

TACHOMETER ASSY

25016-014

1
Out of stock

9

SOCKET-TACHOMETER

25011-021

1
Out of stock

10

BRAKCET-METER

25008-014

1
Out of stock

11

DAMPER RUBBER-MTR BKT

92075-090

1
Out of stock

12

DAMPER RUBBER

92075-080

1
Out of stock

13

WASHER PLAIN 8MM

411B0800

1
Out of stock

14

WASHER SPRING 8MM

461F0800

1
Out of stock

15

NUT,8MM

311B0800

1
Out of stock
