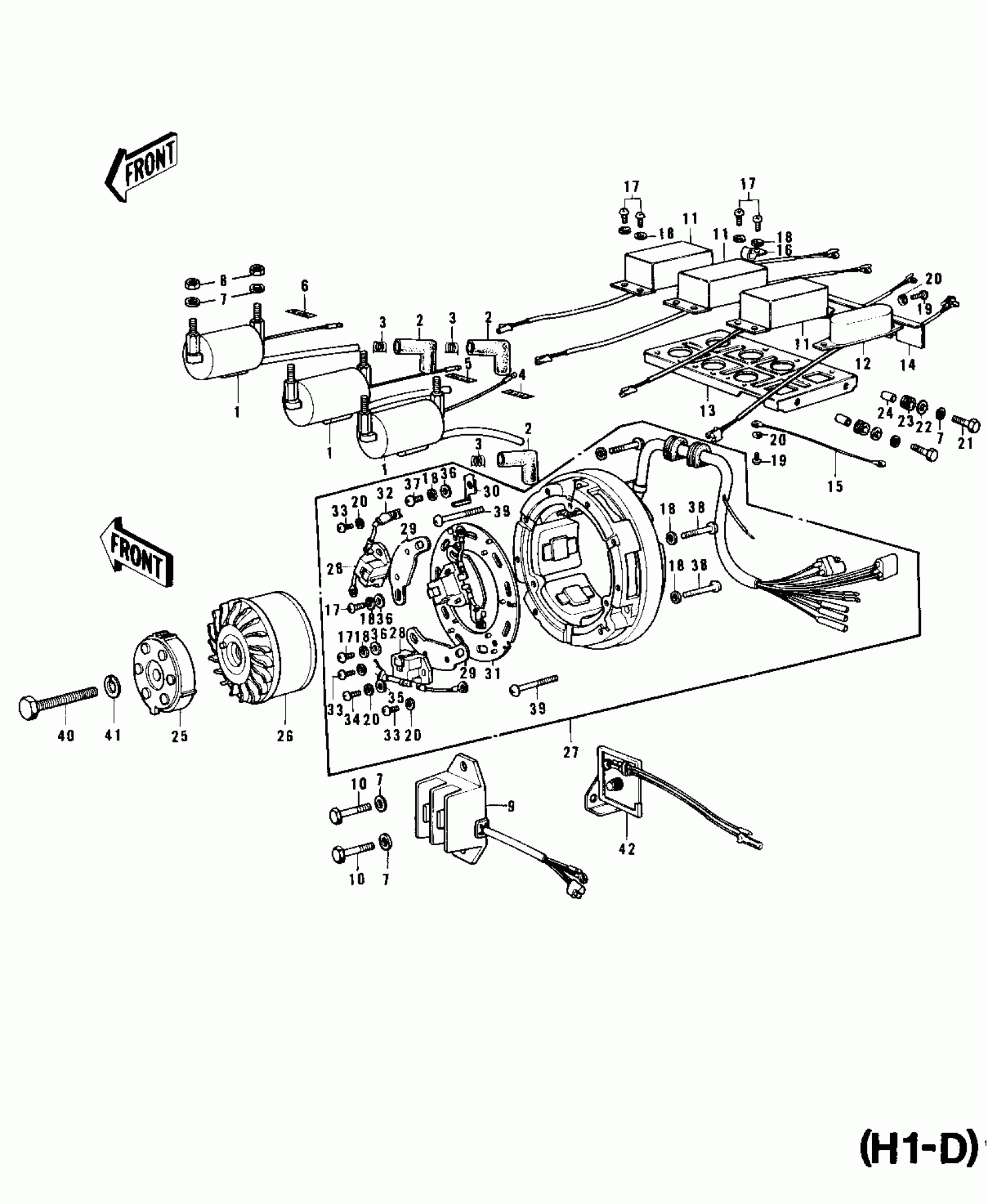

Find the part on the Ignition/generator/regulator diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KH500-A8 Ignition/generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL-IGNITION

21121-064

1
Out of stock

2

CAP-SPARK PLUG

21130-009

1
Out of stock

3

TERMINAL,SPARK PLUG CAP

92101-001

1
Out of stock

4

LABEL,LEFT

21168-001

1
Out of stock

5

LABEL,CENTER

21168-002

1
Out of stock

6

LABEL,RIGHT

21168-003

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

NUT 6MM

311B0600

1
Out of stock

9

REGULATOR

21066-1036

1
Out of stock

10

BOLT-UPSET,6X16

112G0616

1
Out of stock

11

IGNITION UNIT A

21119-016

1
Out of stock

12

IGNITION UNIT B

21120-006

1
Out of stock

13

PLATE,IGNITION UNIT

21155-005

1
Out of stock

14

PLATE

21155-004

1
Out of stock

15

WIRE-LEAD

21045-009

1
Out of stock

16

CLAMP-WIRE

21098-009

1
Out of stock

17

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

18

WASHER SPRING 5MM

461F0500

1
Out of stock

19

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

20

WASHER SPRING 4MM

461F0400

1
Out of stock

21

BOLT-UPSET

112G0618

1
Out of stock

22

WASHER,6.5X20X1.6

92022-125

1
Out of stock

23

DAMPER RUBBER

92075-051

1
Out of stock

24

COLLAR

92027-103

1
Out of stock

25

ROTOR-S.G

21007-021

1
Out of stock

26

ROTOR

21007-024

1
Out of stock

27

YOKE ASSY

21076-015

1
Out of stock

28

PICK UP

21152-003

1
Out of stock

29

PLATE-PICK UP

21156-002

1
Out of stock

30

POINTER-IGN TIMING

21020-002

1
Out of stock

31

PLATE-YOKE

21155-002

1
Out of stock

32

CLAMP-LEAD WIRE

21098-008

1
Out of stock

33

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

34

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

35

WASHER PLAIN 4MM

410B0400

1
Out of stock

36

WASHER-PLAIN,5MM

411B0500

1
Out of stock

37

SCREW-PAN-CROS

220B0512

1
Out of stock

38

SCREW-PAN-CROS

220B0535

1
Out of stock

39

SCREW-PAN-CROS

220B0540

1
Out of stock

40

BOLT,FLANGED,8X70

92001-1583

1
Out of stock

41

WASHER SPRING 8MM

461F0800

1
Out of stock

42

RECTIFIER

21061-014

1
Out of stock
