1976 Kawasaki KH500-A8 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

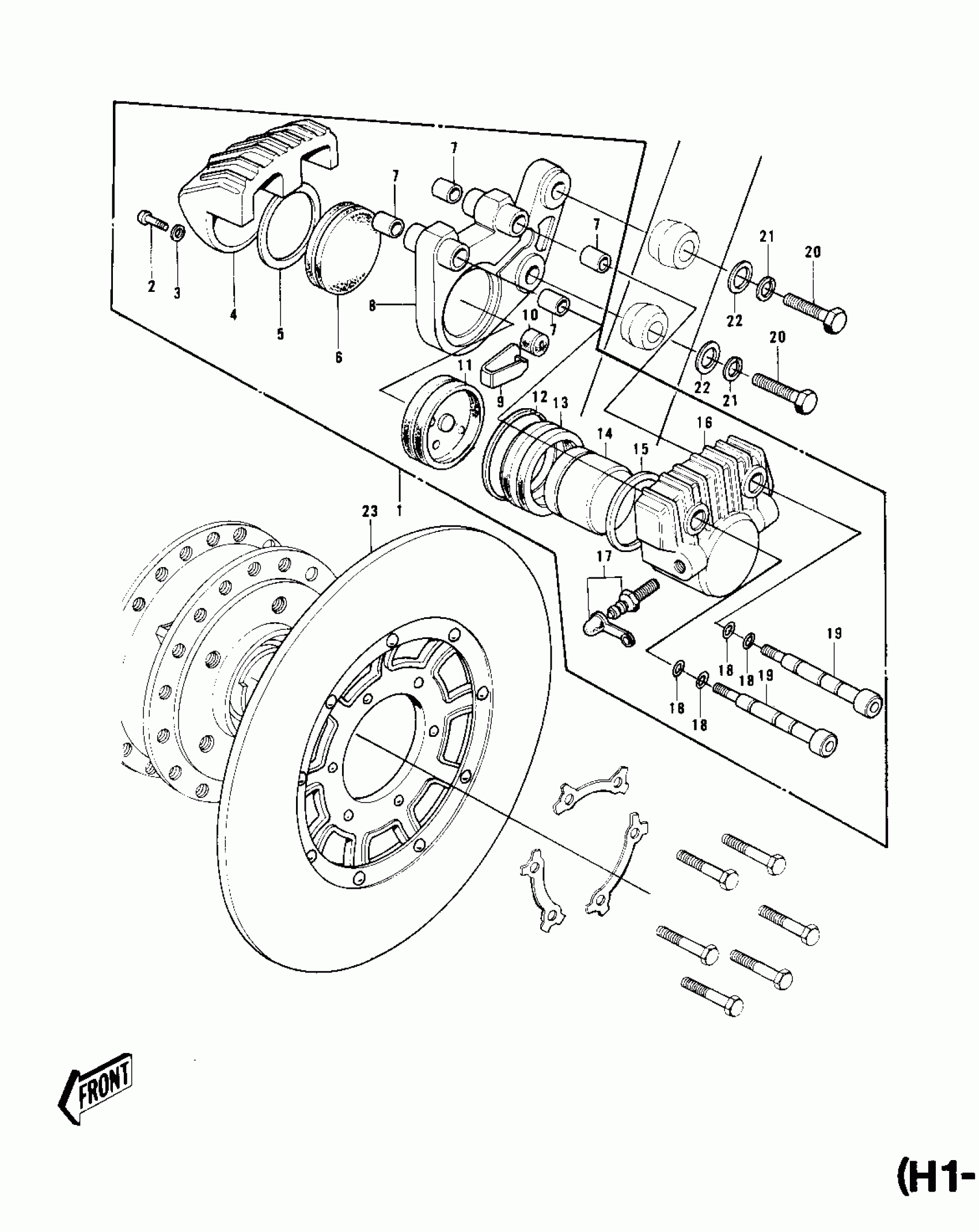

1976 Kawasaki KH500-A8 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY

43041-001

1
Out of stock

2

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

CALIPER B

43043-001

1

$85.61

In stock

5

RING-PAD B

43071-001

1
Out of stock

6

PAD B

43051-001

1
Out of stock

7

DUST SEAL-SHAFT

43052-001

1
Out of stock

8

HOLDER-CALIPER

43044-001

1

$142.68

In stock

9

STOPPER-PAD A

43046-001

1
Out of stock

10

BUSHING-RUBBER

43047-001

1
Out of stock

11

PAD A

43082-001

1
Out of stock

12

BAND-DUST SEAL

43058-001

1
Out of stock

13

DUST SEAL-PISTON

43054-001

1
Out of stock

14

PISTON-CALIPER

43048-001

1
Out of stock

15

1

$8.76

In stock

16

CALIPER A

43042-001

1

$212.94

In stock

17

BLEEDER SET

43085-001

1

$22.74

In stock

18

"0" RING,SHAFT

43053-001

1
Out of stock

19

SHAFT

43045-001

1

$35.27

In stock

20

BOLT-HEX HEAD,10X43

43070-001

1
Out of stock

21

WASHER SPRING 10MM

461F1000

1
Out of stock

22

WASHER-PLAIN,10MM

411B1000

1
Out of stock

23

1

$414.57

In stock

7.12.1

REPAIR SET-CALIPER

43073-002

1
Out of stock
