1977 Kawasaki KH400-A4 Swing Arm/shock Absorbers Diagram

← All diagrams

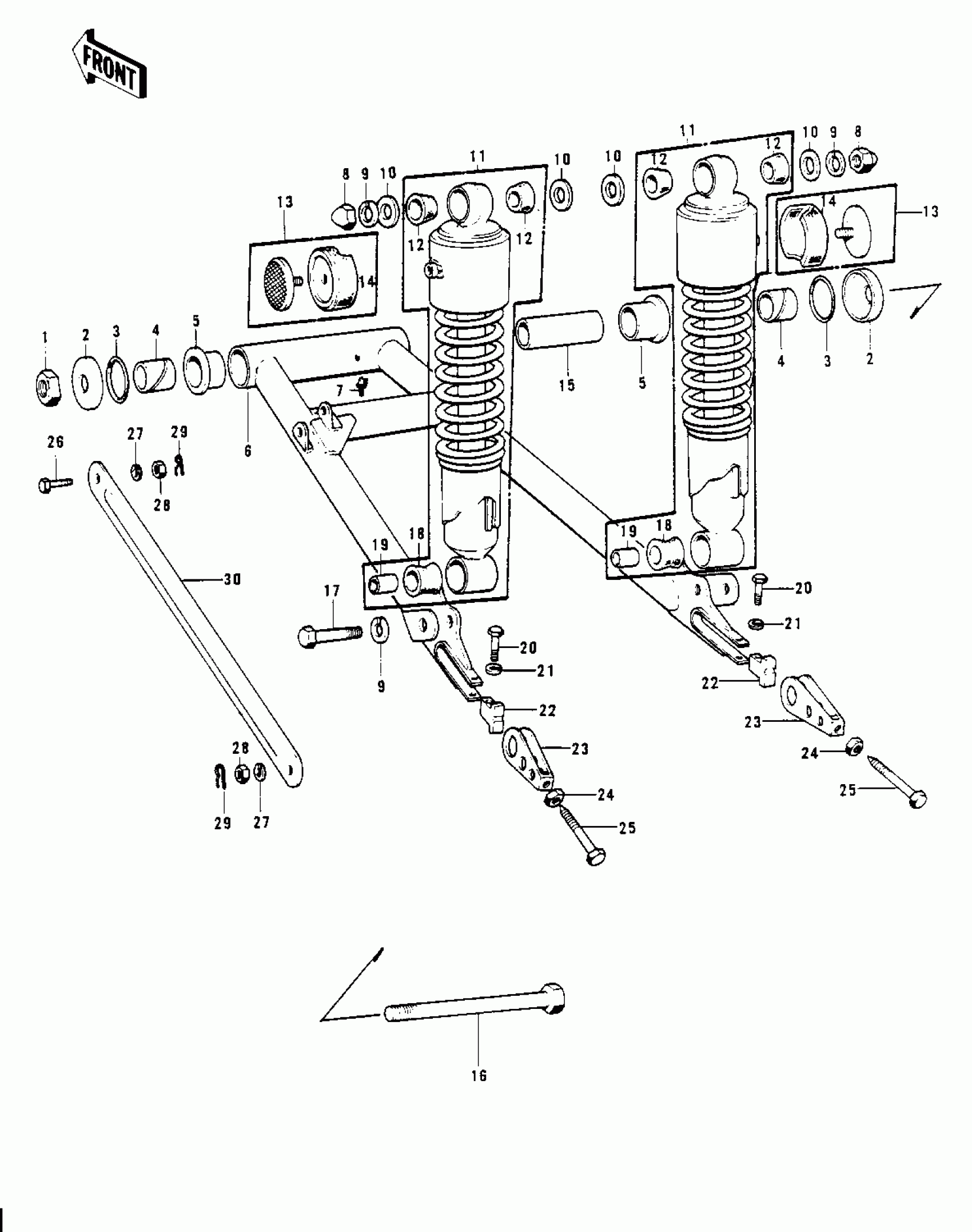

Find the part on the Swing Arm/shock Absorbers diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KH400-A4 Swing Arm/shock Absorbers Diagram

#

Description
Price
Status
Order Qty

1

NUT-LOCK,14MM

92019-011

Out of stock

2

CAP,SWING ARM

33035-007

Out of stock

3

"0" RING,30MM

671B2530

Out of stock

4

SLEEVE-SWING ARM,SHRT

33034-013

Out of stock

5

BUSHING-SWING ARM

33033-009

Out of stock

6

ARM-COMP-SWING

33001-1089

Out of stock

6

ARM-COMP-SWING

33001-1089

Out of stock

7

GREASE NIPPLE

92005-002

Out of stock

8

NUT,CAP,10MM

92020-003

Out of stock

9

WASHER SPRING 10MM

461F1000

Out of stock

10

WASHER,10.5X26X2.3

92022-246

Out of stock

11

SHOCK ABSBR RR

45014-110

Out of stock

12

BUSH SHCK ABS RUBBER

45017-001

Out of stock

13

REFLECTOR,REFLEX,REAR

28001-030

Out of stock

14

DAMPER RUBBER,REFLEX

28016-003

Out of stock

15

SLEEVE-SWING ARM,LONG

33034-012

Out of stock

16

SHAFT-SWING ARM PIVOT

33032-037

Out of stock

17

BOLT HEX HEAD 10X35

113N1035

Out of stock

18

BUSHING,SHCK ABS RUB

45017-018

Out of stock

19

COLLAR,SHOCKABSORBER

45016-003

Out of stock

20

BOLT,FLANGED,8X35

92001-1577

Out of stock

20

BOLT,FLANGED,8X35

92001-1577

Out of stock

21

WASHER SPRING 8MM

461F0800

Out of stock

22

STOPPER,CHAIN ADJUST

33044-002

Out of stock

23

ADJUSTER,CHAIN

33040-056

Out of stock

24

NUT 8MM

312B0800

Out of stock

25

BOLT,8X50

92001-1399

Out of stock

25

BOLT,8X50

92001-1399

Out of stock

26

BOLT,10X29

92003-096

Out of stock

27

WASHER SPRING 10MM

461F1000

Out of stock

28

NUT-HEX-FINE,10MM

314B1000

Out of stock

28

NUT-HEX-FINE,10MM

314B1000

Out of stock

29

PIN-SNAP,8MM

554A0800

Out of stock

30

TORQUE LINK-RR BRAKE

43007-031

Out of stock
