1977 Kawasaki KH400-A4 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

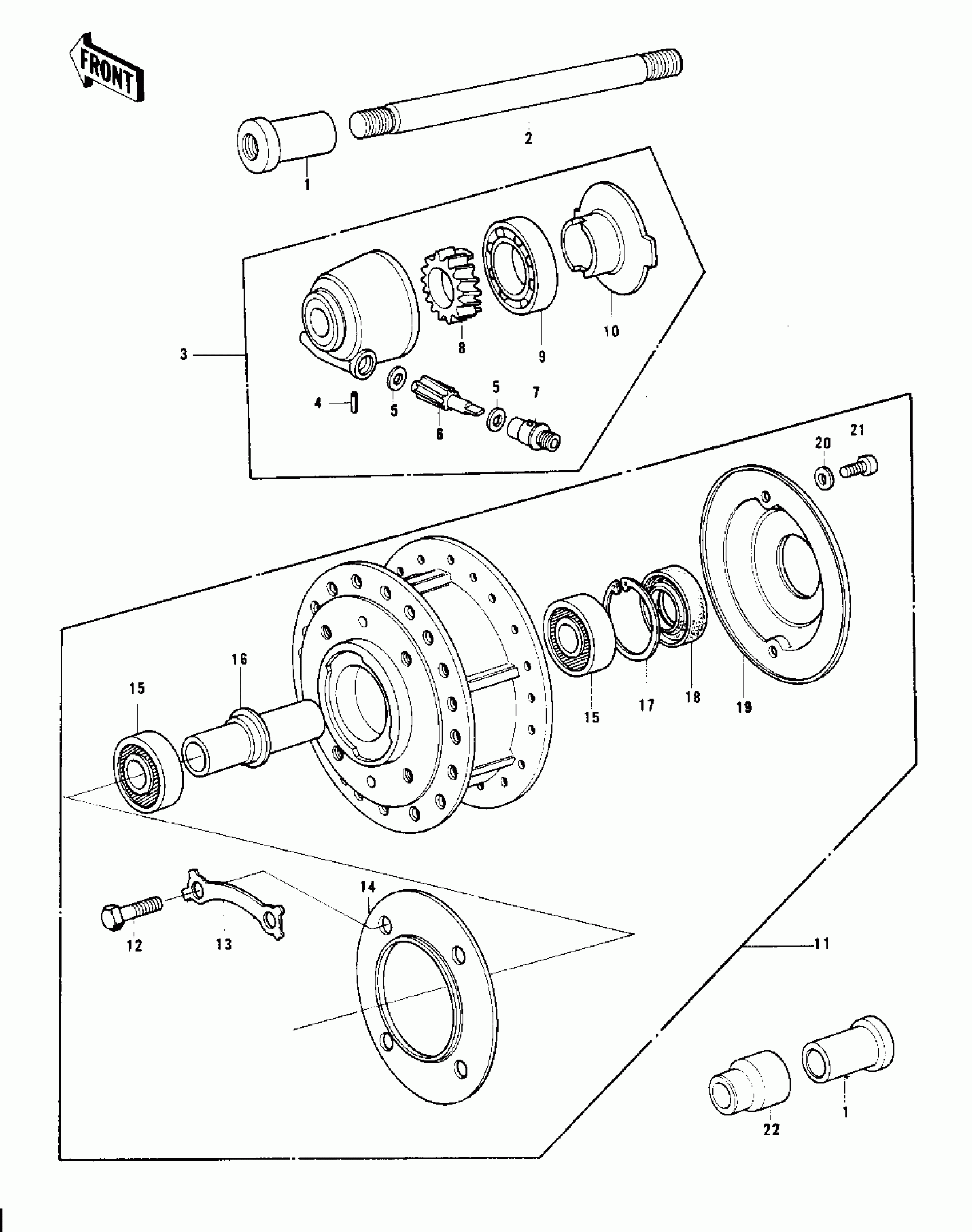

1977 Kawasaki KH400-A4 Front Hub Diagram

#

Description
Price
Status
Order Qty

1

COLLER,FRONT AXLE

41069-034

$8.42

In stock

2

AXLE,FRONT

41068-050

$49.83

In stock

3

GEAR BOX ASSY

41078-008

Out of stock

4

PIN,SPRING

41082-001

$3.53

In stock

5

WASHER,5.1X9X0.4

41063-001

$4.17

In stock

6

PINION,SPEEDOMETER

41060-017

Out of stock

7

$18.66

In stock

8

$43.35

In stock

9

SEAL-OIL,BJN30427-C3

92049-1057

Out of stock

10

RECEIVER,GEAR

41064-013

Out of stock

11

DRUM-ASSY,FR BRK

41034-041

$236.20

In stock

12

BOLT

92001-158

Out of stock

13

WASHER,LOCK

92088-023

$11.33

In stock

14

DUST COVER

41042-014

Out of stock

15

UNAVAILABLE IN PRICE BOOK

601B06203

Out of stock

16

COLLAR,BRG

41039-028

Out of stock

17

RING-SNAP,40MM

92033-1040

$4.67

In stock

18

OIL SEAL

654A254008

$24.19

In stock

19

DUST COVER

41042-016

Out of stock

20

WASHER PLAIN 5MM

410B0500

Out of stock

21

SCREW-PAN-CROS

220B0512

$0.51

In stock

22

COLLAR,FRONT AXLE

41069-032

Out of stock
