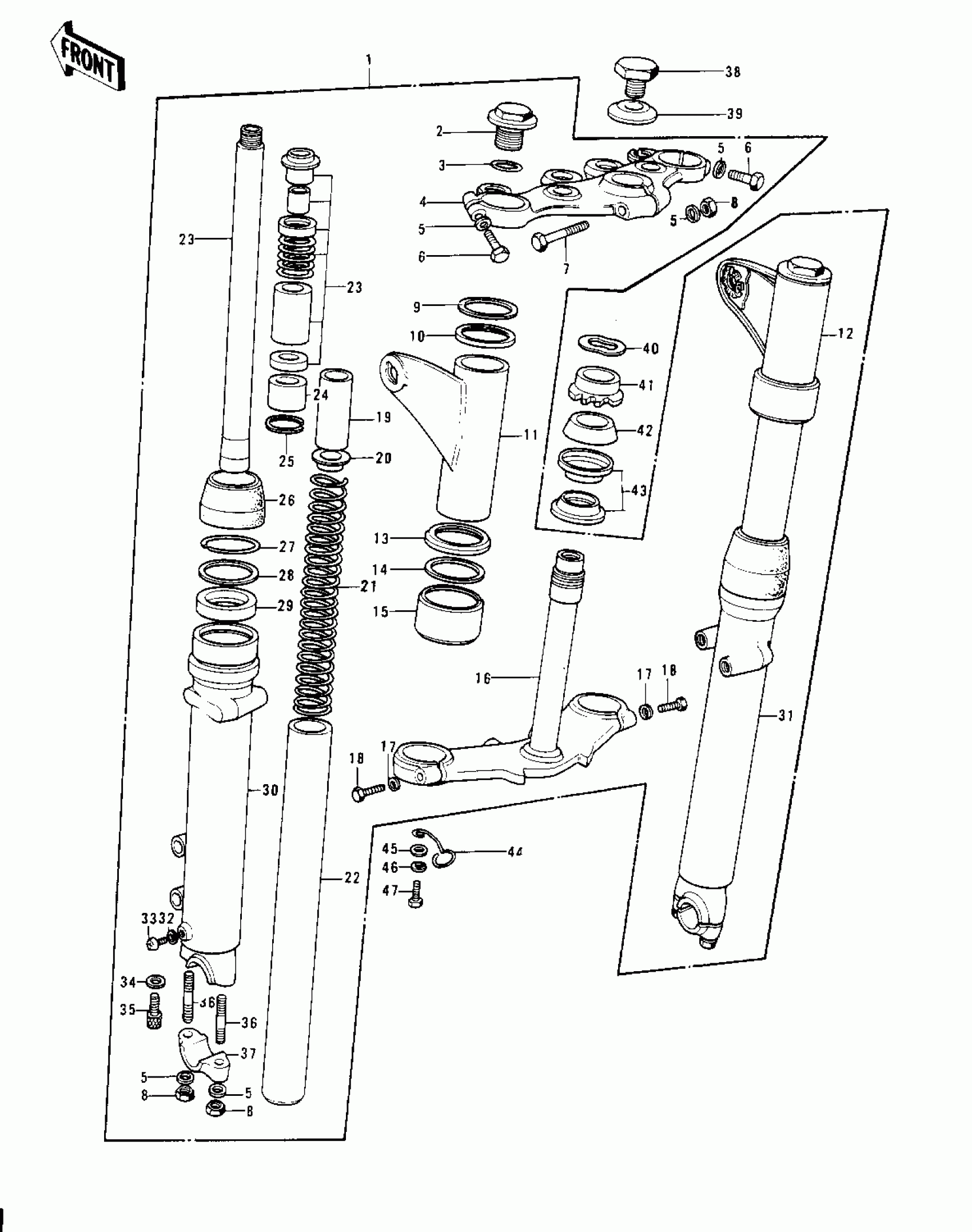

1977 Kawasaki KH400-A4 Front Fork Diagram
Find the part on the Front Fork diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
BOLT-FORK FITTING
44041-037
5
WASHER SPRING 8MM
461F0800
6
BOLT-STEERING STEM HD
44041-044
7
BOLT-STEERING STEM HD
44041-042
8
NUT,LOCK,8MM
92015-1124
8
NUT,LOCK,8MM
92015-1124
9
GASKET,FORK COVER
44045-039
10
WASHER,FORK COVER
44043-047
11
COTER,L.H FORK
44033-067
12
COVER,R.H FORK
44034-067
13
CAP,FORK COVER
44032-005
14
GASKET FORK COVER
44045-029
17
WASHER SPRING 10MM
461F1000
18
BOLT HEX HEAD 10X32
113B1032
18
BOLT, PINCH, 10MM
44041-010
20
GUIDE-FORK SPRING
44029-019
24
PISTON,FORK
44018-009
25
CIRCLIP,FORK PISTON
44044-019
27
CIRCLIP OIL SEAL FIT
44044-005
28
WASHER OIL SEAL FIT
44043-023
33
SCREW PAN HEAD 4X8
220B0408
37
HOLDER,FRONT AXLE
44063-012
38
BOLT,16X25.5
92007-031
39
WASHER,16X41X4
92022-230
40
WASHER,WAVE
46100-003
43
RACE,STEERING STEM BEARING
92047-006
44
CLAMP-CABLE
92037-099
45
WASHER PLAIN 6MM
411B0600
46
WASHER SPRING 6MM
461F0600
47
BOLT,6X10
112G0610
