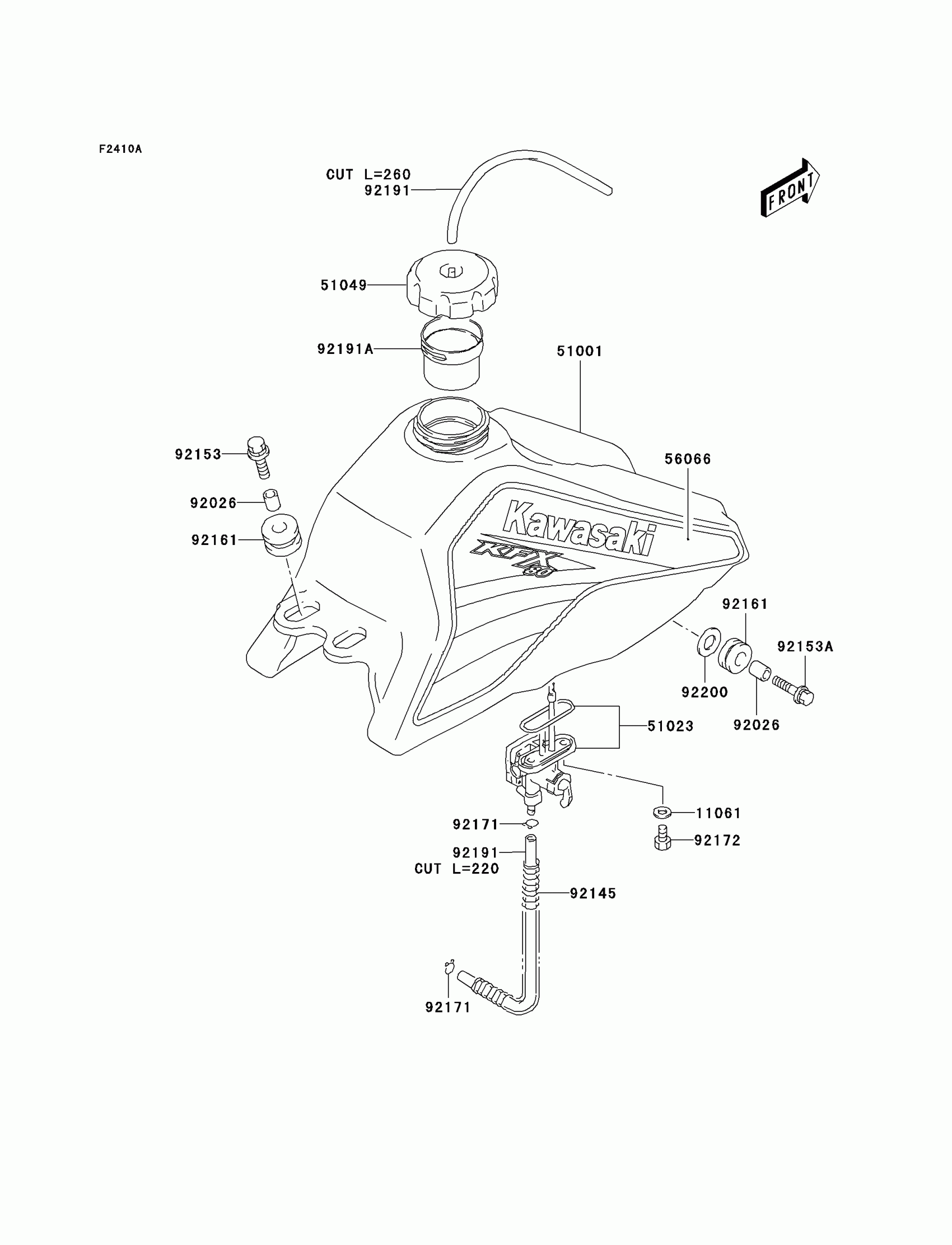

Kawasaki KFX80 Fuel Tank(KSF80-A3) Diagram

Description

Price

11061

GASKET,6.4X11.5X0.8

11061-S002

$3.76

51001

TANK-COMP-FUEL,BLACK

51001-S006-504

$330.91

51023

TAP-ASSY

51023-S006

$127.36

51049

CAP-TANK

51049-S007

$47.59

56066

PATTERN,SET,WHT/BLK/GLD/GRN

56066-S035-587

$116.21

92026

SPACER,FOOTREST

92026-S057

$2.73

92145

SPRING,FUEL HOSE

92145-S080

$4.17

92153

BOLT,FUEL TANK

92153-S222

$2.44

92153A

BOLT,FUEL TANK

92153-S223

$2.75

92161

DAMPER,FUEL TANK

92161-S076

$2.08

92171

CLAMP,OIL HOSE

92171-S062

$1.28

92172

SCREW,FUEL COCK

92172-S151

$1.85

92191

TUBE,FUEL TANK BREATHER

92191-S028

$7.30

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.00

92200

WASHER,FOOTREST

92200-S093

$2.51
