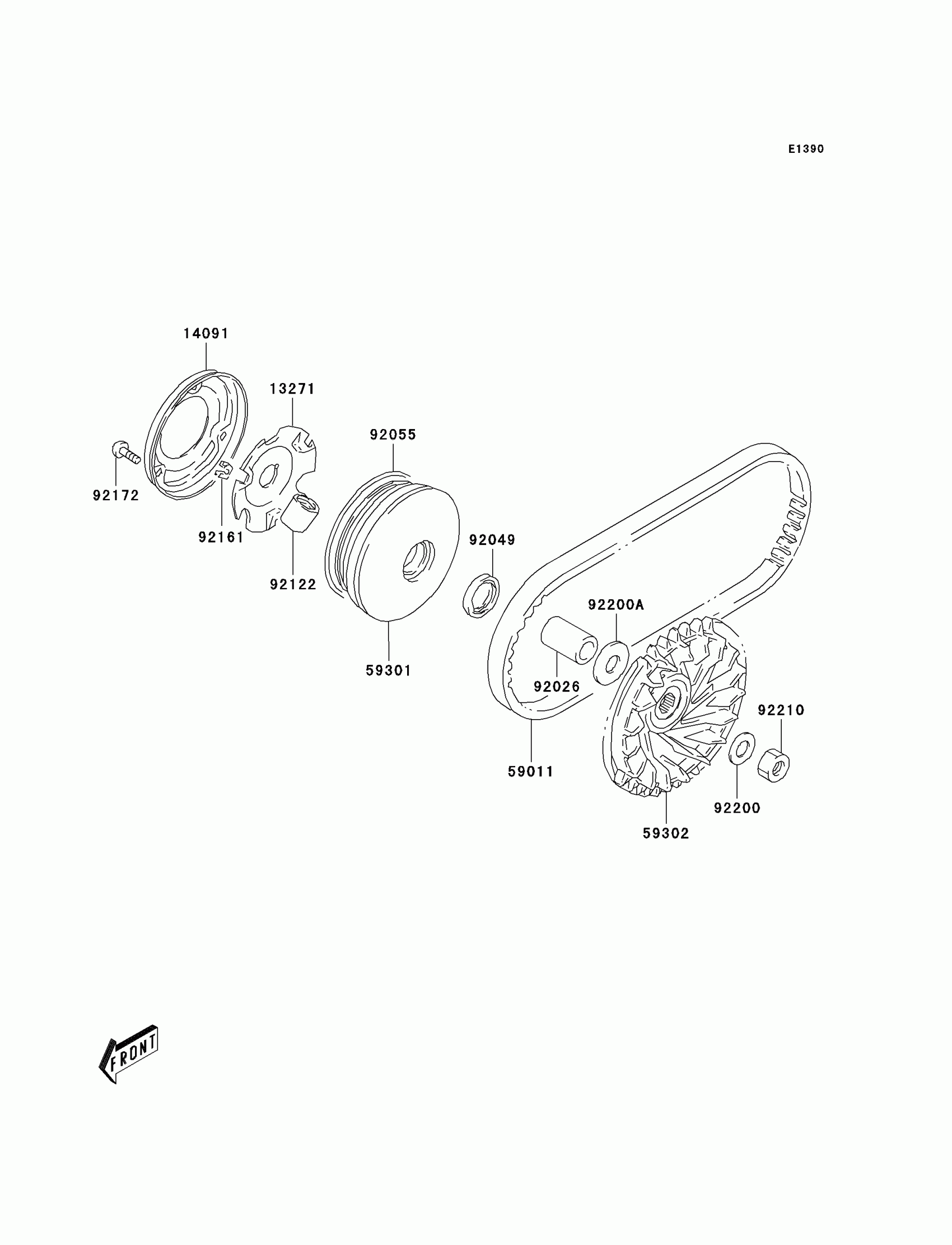

Kawasaki KFX80 Belt Converter Diagram

Description

Price

13271

PLATE,MOVABLE DRIVE

13271-S040

$11.61

14091

COVER,MOVABLE DRIVE

14091-S076

$4.42

59011

BELT,DRIVE

59011-S003

$45.30

59301

SHEAVE-MOVABLE

59301-S003

$67.92

59302

SHEAVE-COMP,FIXED DRIVE

59302-S007

$133.51

92026

SPACER,MOVABLE DRIVE

92026-S070

$20.81

92049

SEAL-OIL,MOVABLE DRIVE

92049-S035

$5.42

92055

RING-O,MOVABLE DRIVE

92055-S045

$8.15

92122

ROLLER,MOVABLE DRIVE

92122-S007

Unavailable

92161

DAMPER

92161-S074

$4.15

92172

SCREW,MOVABLE DRIVE

92172-S144

$1.64

92200

WASHER,CLUTCH

92200-S087

$2.08

92200A

WASHER,MOVABLE DRIVE FACE

92200-S113

$2.81

92210

NUT,FIXED DRIVE

92210-S082

$3.68
