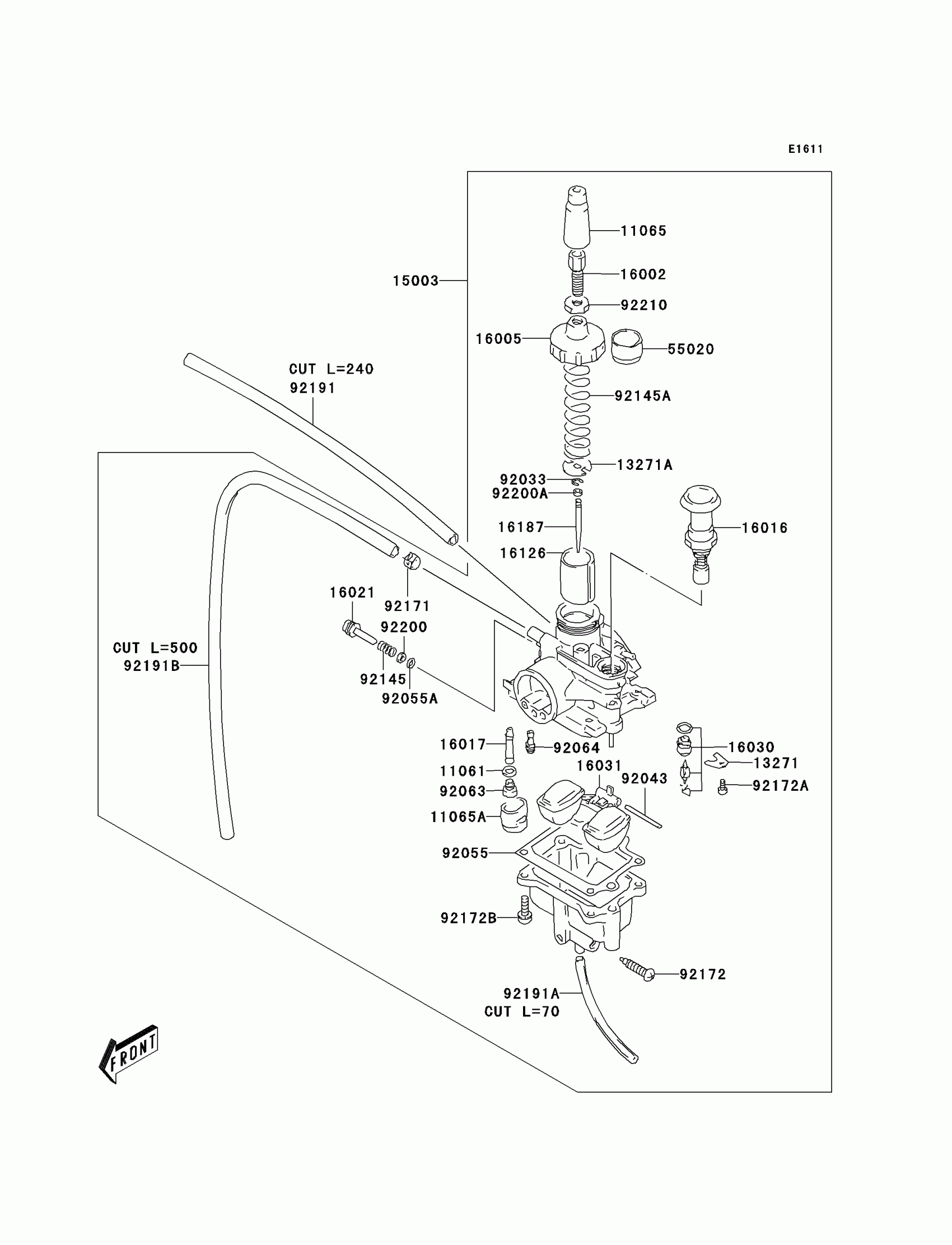

Kawasaki KFX80 Carburetor Diagram

#

Description
Price

11061

GASKET

11061-S057

$2.76

11065

CAP

11065-S024

Unavailable

11065A

CAP

11065-S025

$8.59

13271

PLATE

13271-S037

$5.63

13271A

PLATE

13271-S038

Unavailable

15003

CARBURETOR-ASSY

15003-S005

$235.98

16002

ADJUSTER-CABLE

16002-S001

Unavailable

16005

TOP-CHAMBER

16005-S010

Unavailable

16016

PLUNGER

16016-S005

$37.49

16017

JET-NEEDLE,(E-0)

16017-S004

$31.17

16021

SCREW-THROTTLE STOP

16021-S004

$14.59

16030

VALVE-FLOAT

16030-S005

$47.56

16031

FLOAT

16031-S005

Unavailable

16126

VALVE,CA 2.5

16126-S007

$50.10

16187

NEEDLE-JET

16187-S006

$16.49

55020

GUARD

55020-S009

Unavailable

92033

RING-SNAP,NEEDLE

92033-S025

Unavailable

92043

PIN

92043-S029

Unavailable

92055

RING-O,GASKET

92055-S043

$5.44

92055A

RING-O

92055-S044

$4.97

92063

JET-MAIN

92063-S004

Unavailable

92064

JET-PILOT

92064-S006

Unavailable

92145

SPRING

92145-S072

Unavailable

92145A

SPRING,THROTTLE VALVE

92145-S073

Unavailable

92171

CLAMP

92171-S068

$13.44

92172

SCREW,DRAIN

92172-S046

$5.23

92172A

SCREW

92172-S138

$1.37

92172B

SCREW

92172-S139

$2.76

92191

TUBE,VACUUM

92191-S038

$12.41

92191A

TUBE,3X5X600

92191-S044

$3.98

92191B

TUBE,3.5X6.5X600

92191-S045

$4.97

92200

WASHER

92200-S106

$4.10

92200A

WASHER

92200-S107

Unavailable

92210

NUT

92210-S079

Unavailable
