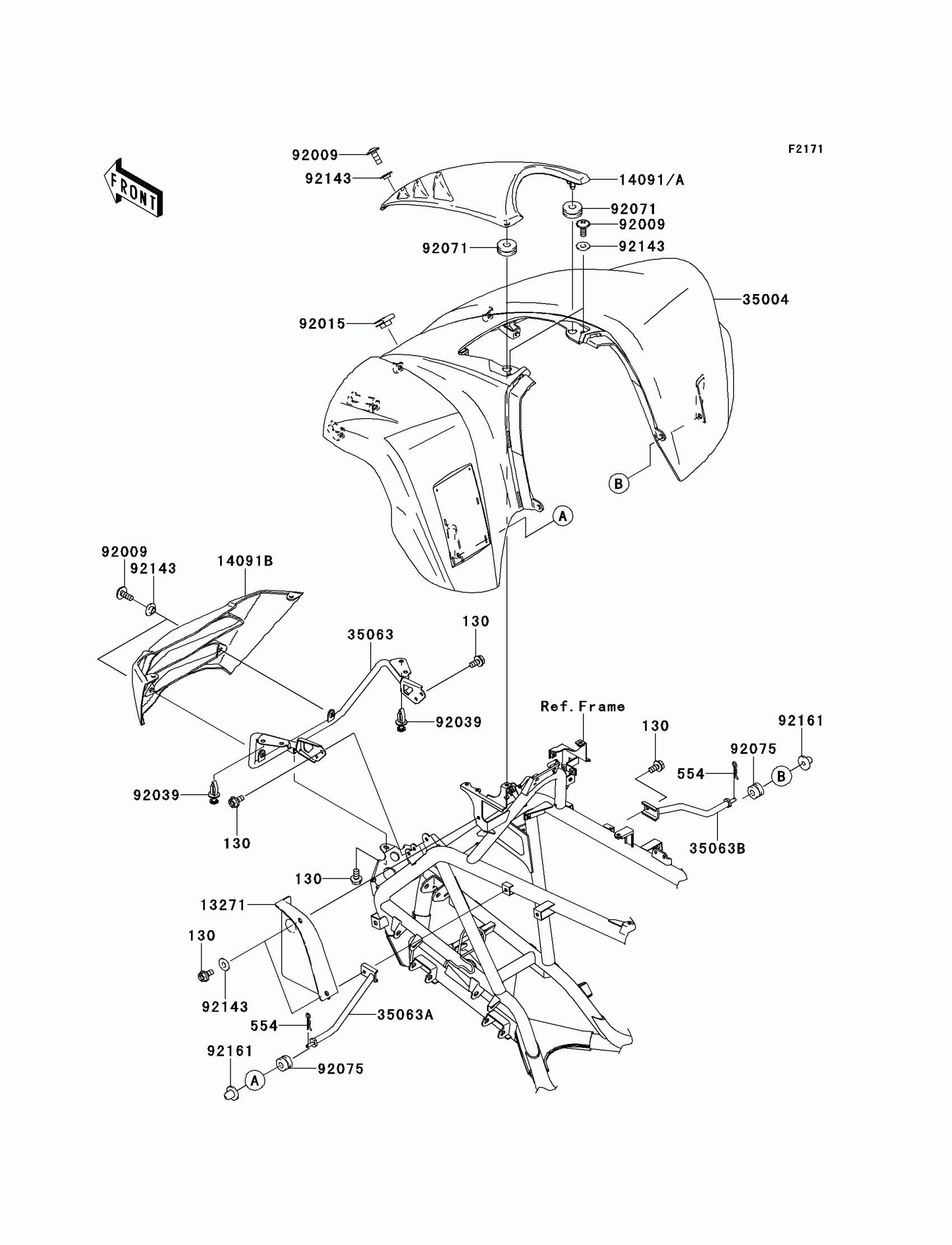

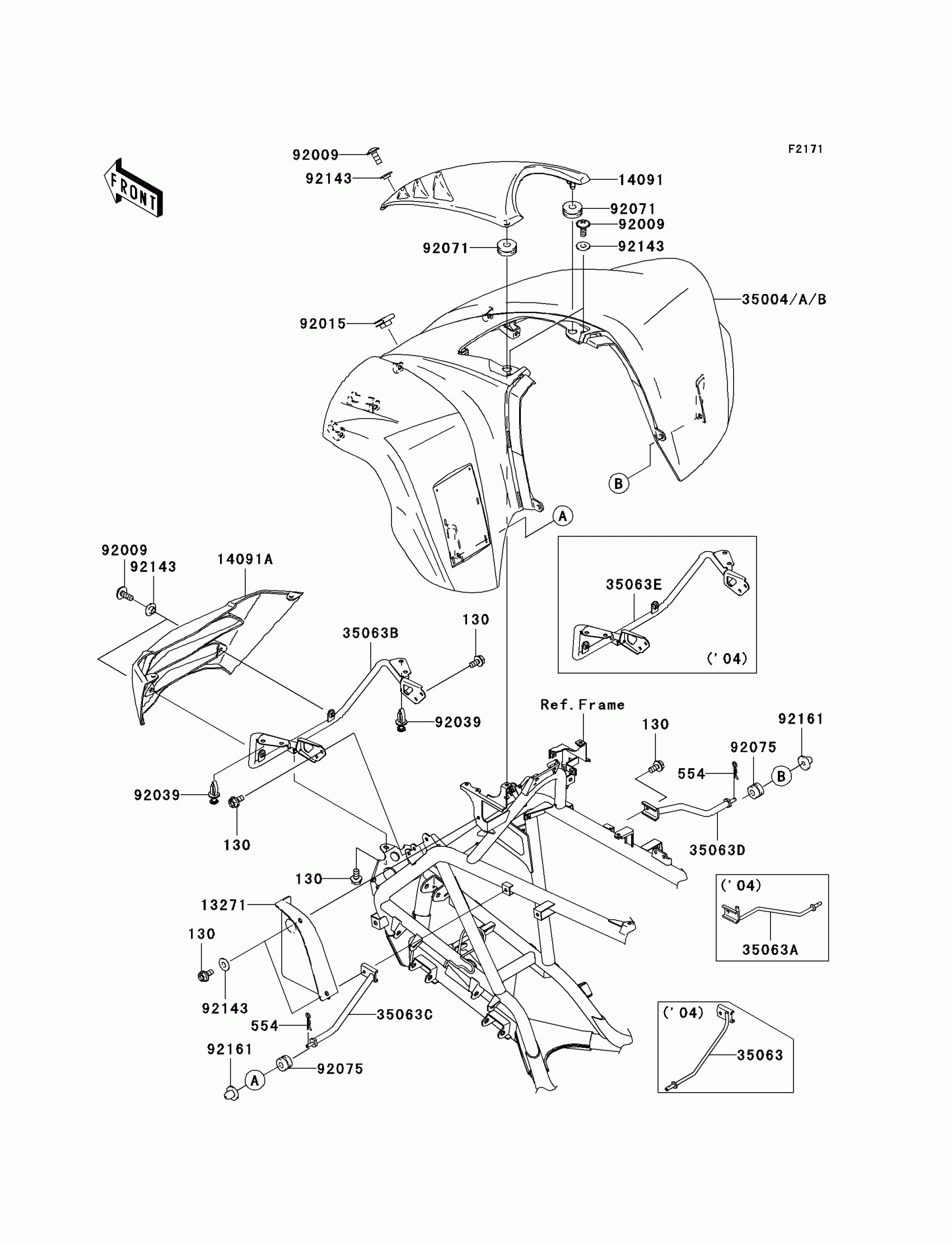

Kawasaki KFX700 Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

554

PIN,SNAP

554A0600

Unavailable

13271

PLATE,FRONT FENDER

13271-0058

$8.20

14091

COVER,MAINTENANCE,BLACK

14091-1511-6D

Unavailable

14091A

COVER,FRONT GRILL,F.BLACK

14091-1524-6Z

$25.29

35004

FENDER-FRONT,B.ORANGE

35004-0014-268

$329.67

35004A

FENDER-FRONT,L.GREEN

35004-0014-290

$314.77

35063B

STAY,FRONT GRILL

35063-0067

Unavailable

35063C

STAY,FRONT FENDER,LH

35063-0139

Unavailable

35063D

STAY,FRONT FENDER,RH

35063-0140

Unavailable

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-1229

$0.80

92071

GROMMET

92071-1131

$5.93

92075

DAMPER

92075-1435

$4.84

92143

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-1160

$3.80
