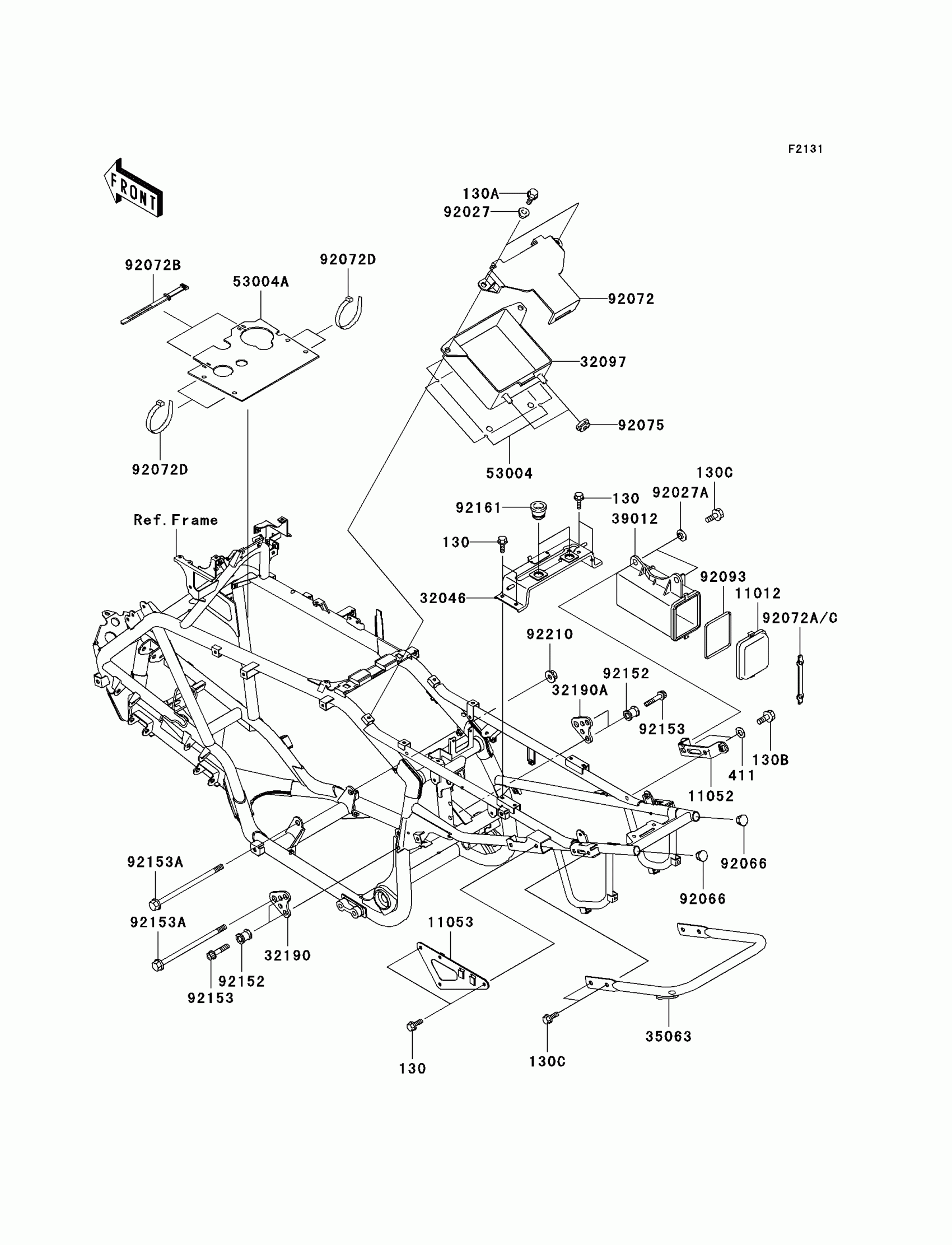

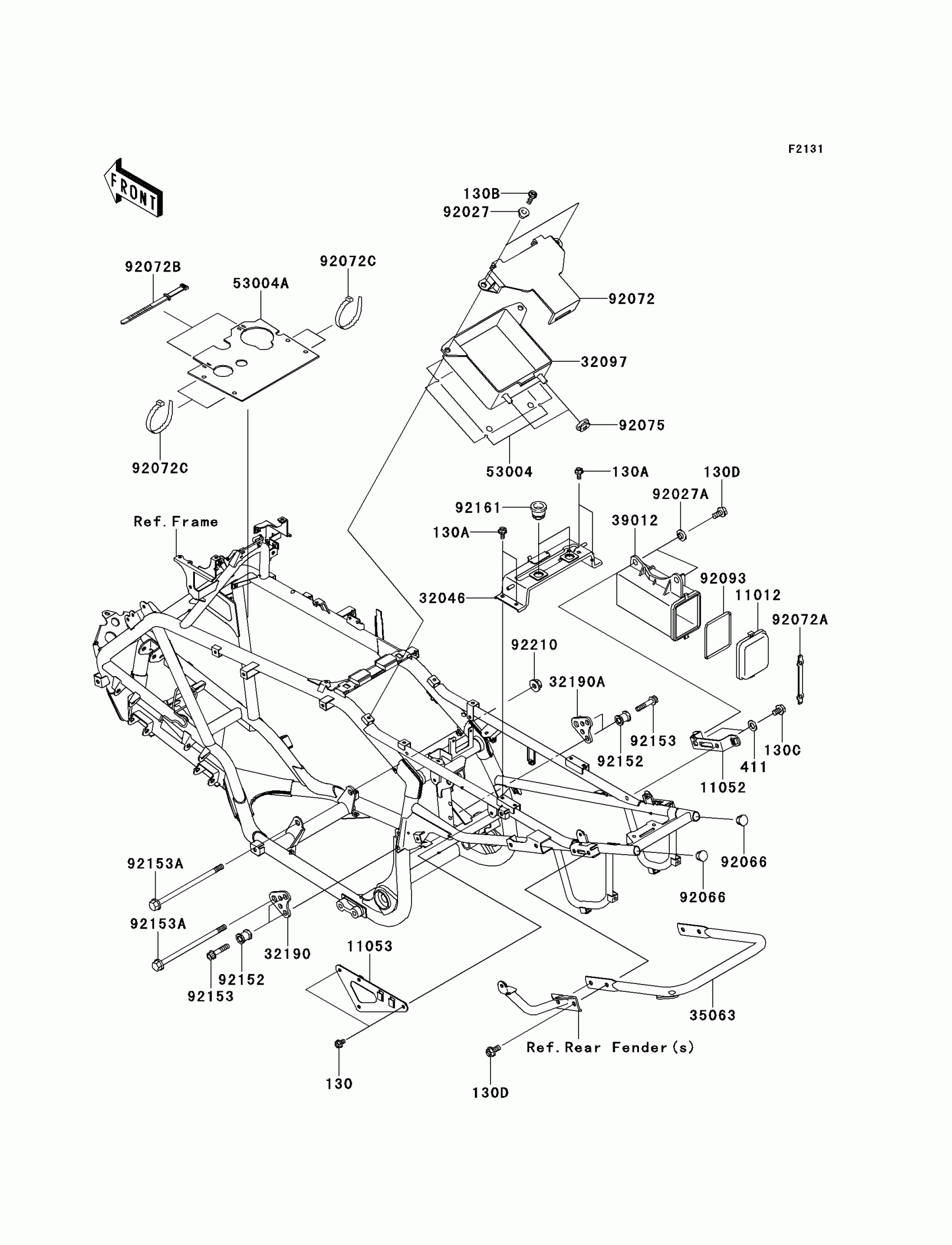

Kawasaki KFX700 Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,8X12

130J0812

Unavailable

130C

BOLT-FLANGED,8X16

130J0816

Unavailable

411

WASHER PLAIN

411F0800

Unavailable

11012

CAP,TOOL CASE

11012-1606

$10.83

11052

BRACKET,TOOL CASE JOINT

11052-1930

$4.76

11053

BRACKET,REGULATER,LH

11053-0301

$5.92

32046

BRACKET-SEAT

32046-0006

$33.24

32097

CASE-BATTERY

32097-0002

$10.22

32190

BRACKET-ENGINE,RR,UPP,LH,GRAY

32190-1315-HN

$3.88

32190A

BRACKET-ENGINE,RR,UPP,RH,GRAY

32190-1316-HN

$9.53

35063

STAY,GLOVE BAR,G.GRAY

35063-0033-HN

Unavailable

39012

CASE-STORAGE

39012-1055

$31.12

53004

MAT,BATTERY CASE

53004-0002

$14.08

53004A

MAT,WATER PROTECT

53004-0009

$15.88

92027

COLLAR

92027-1166

$4.67

92027A

COLLAR

92027-1354

$3.81

92066

PLUG

92066-1220

$4.39

92072

BAND,BATTERY

92072-0006

Unavailable

92072A

BAND,TOOL CASE CAP

92072-0032

$7.37

92072B

BAND,L=123

92072-030

$3.81

92072D

BAND,L=188

92072-1239

$1.30

92075

DAMPER

92075-1787

$4.93

92093

SEAL,TOOL CASE CAP

92093-1247

$4.66

92152

COLLAR,L=25

92152-0061

$8.75

92153

BOLT,SOCKET,10X45

92153-0408

$11.41

92153A

BOLT,FLANGED,12X190

92153-1272

$16.24

92161

DAMPER

92161-0048

$4.77

92210

NUT,LOCK,FLANGED,12MM

92210-1150

$4.67
