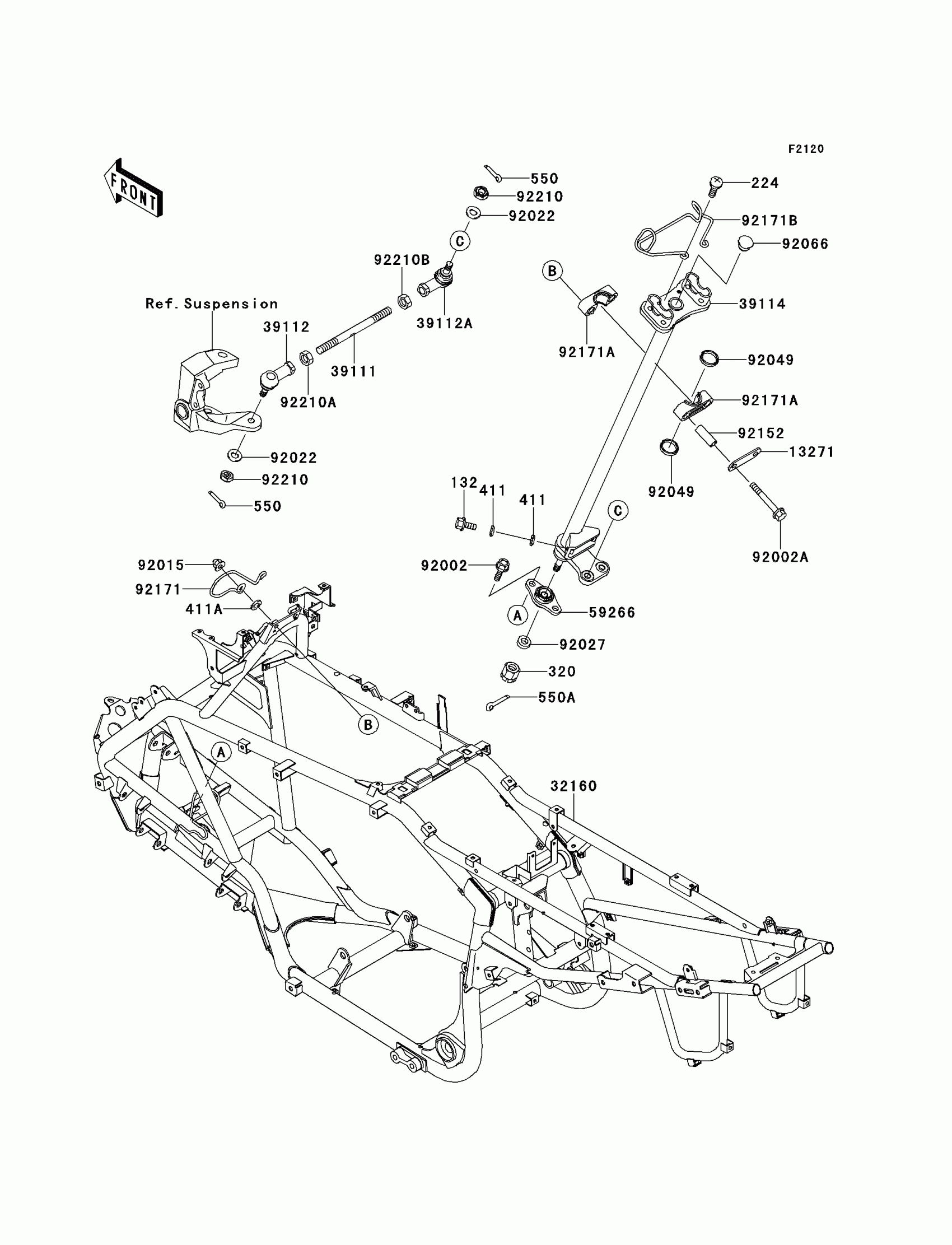

Kawasaki KFX700 Frame Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

224

SCREW-PAN-WP-CROS

224C0614

Unavailable

320

NUT-CASTLE

320H1000

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER PLAIN

411F0800

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61

13271

PLATE

13271-1887

$2.00

32160

FRAME-COMP,G.GRAY

32160-0028-HN

$1,126.01

39111

ROD-TIE

39111-1180

Unavailable

39112

RODEND-TIE,RIGHT HANDED

39112-1087

$42.32

39112A

RODEND-TIE,LEFT HANDED

39112-1088

$42.32

39114

SHAFT-COMP-STRG

39114-0001

$239.04

59266

JOINT-BALL

59266-0001

$162.70

92002

BOLT,8X20

92002-1250

$4.27

92002A

BOLT,FLANGED,8X65

92002-1349

Unavailable

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92049

SEAL-OIL,SR25.4X31X3.8

92049-1611

$4.03

92066

PLUG

92066-1220

$4.39

92152

COLLAR,9.1X13.9X39.2

92152-1456

$8.00

92171

CLAMP,CABLE

92171-0066

$9.71

92171A

CLAMP,STEERING SHAFT

92171-1542

$8.20

92171B

CLAMP,CABLE&HARNESS

92171-1543

$18.31

92210

NUT,LOCK,10MM

92210-1184

$4.59

92210A

NUT,RIGHT HANDED

92210-1385

$5.39

92210B

NUT,LEFT HANDED

92210-1386

$5.39
