2005 Kawasaki KFX50 OIL Pump/oil Filter Diagram

← All diagrams

Find the part on the OIL Pump/oil Filter diagram for your 2005 Kawasaki KFX50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

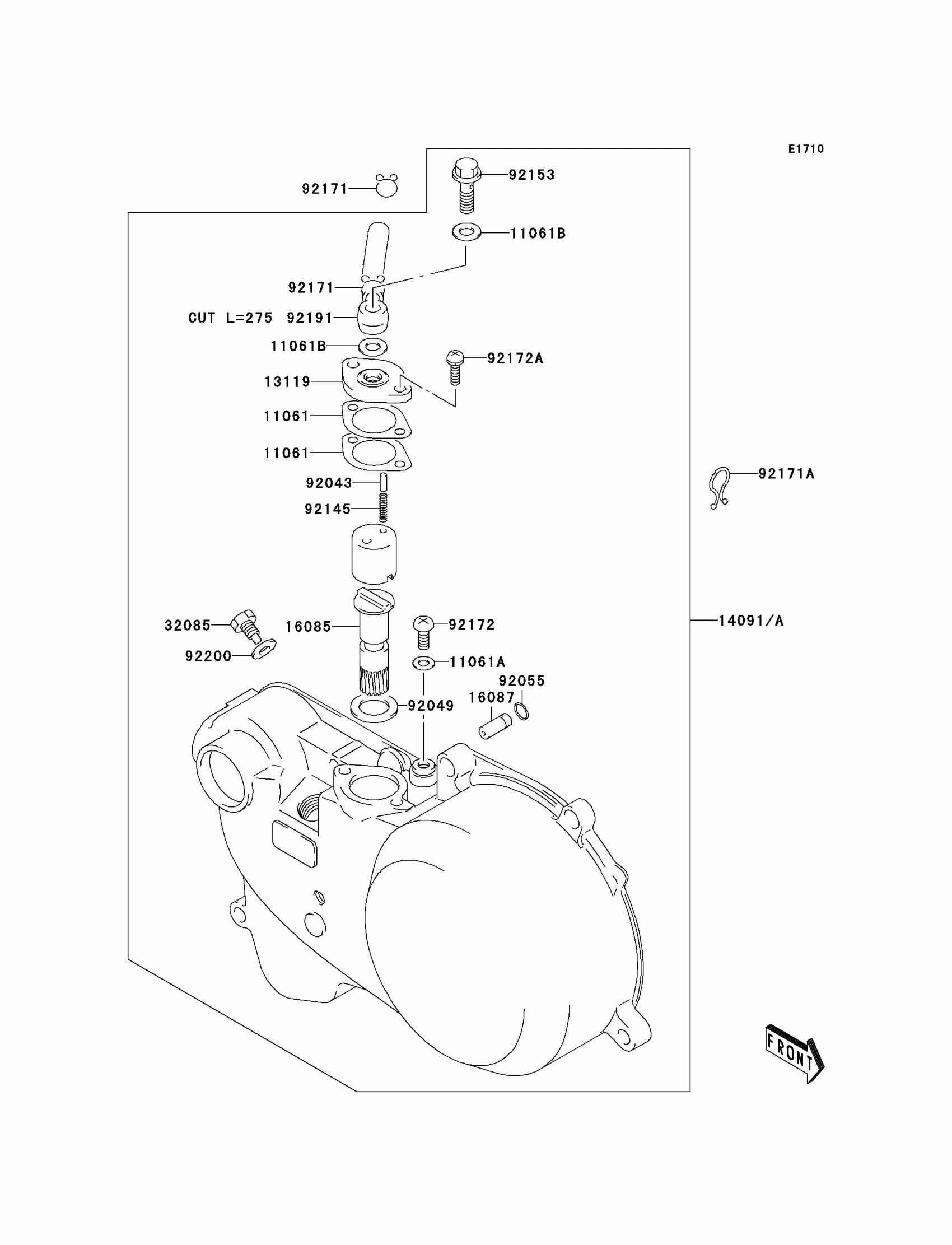

2005 Kawasaki KFX50 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PUMP

11061-S043

1
Out of stock

11061A

GASKET,AIR VENT SCREW

11061-S044

1
Out of stock

11061B

GASKET

11061-S045

1
Out of stock

13119

CAM-RELEASE

13119-S001

1
Out of stock

14091A

COVER,SET

14091-S118

1
Out of stock

16085

GEAR

16085-S002

1
Out of stock

16087

VALVE-CHECK,CRANK

16087-S002

1
Out of stock

32085

STOPPER

32085-S005

1
Out of stock

92043

PIN,SUB

92043-S025

1
Out of stock

92049

SEAL-OIL,OIL PUMP

92049-S027

1
Out of stock

92055

RING-O,CHECK VALVE

92055-S038

1
Out of stock

92145

SPRING,OIL PUMP PLUNGER

92145-S058

1
Out of stock

92153

BOLT

92153-S192

1
Out of stock

92171

CLAMP,OIL HOSE

92171-S062

1
Out of stock

92171A

CLAMP,OIL HOSE

92171-S063

1
Out of stock

92172

SCREW

92172-S110

1
Out of stock

92172A

SCREW,OIL PUMP

92172-S121

1
Out of stock

92191

TUBE,OIL

92191-S040

1
Out of stock

92200

WASHER,PLUNGER

92200-S084

1
Out of stock
