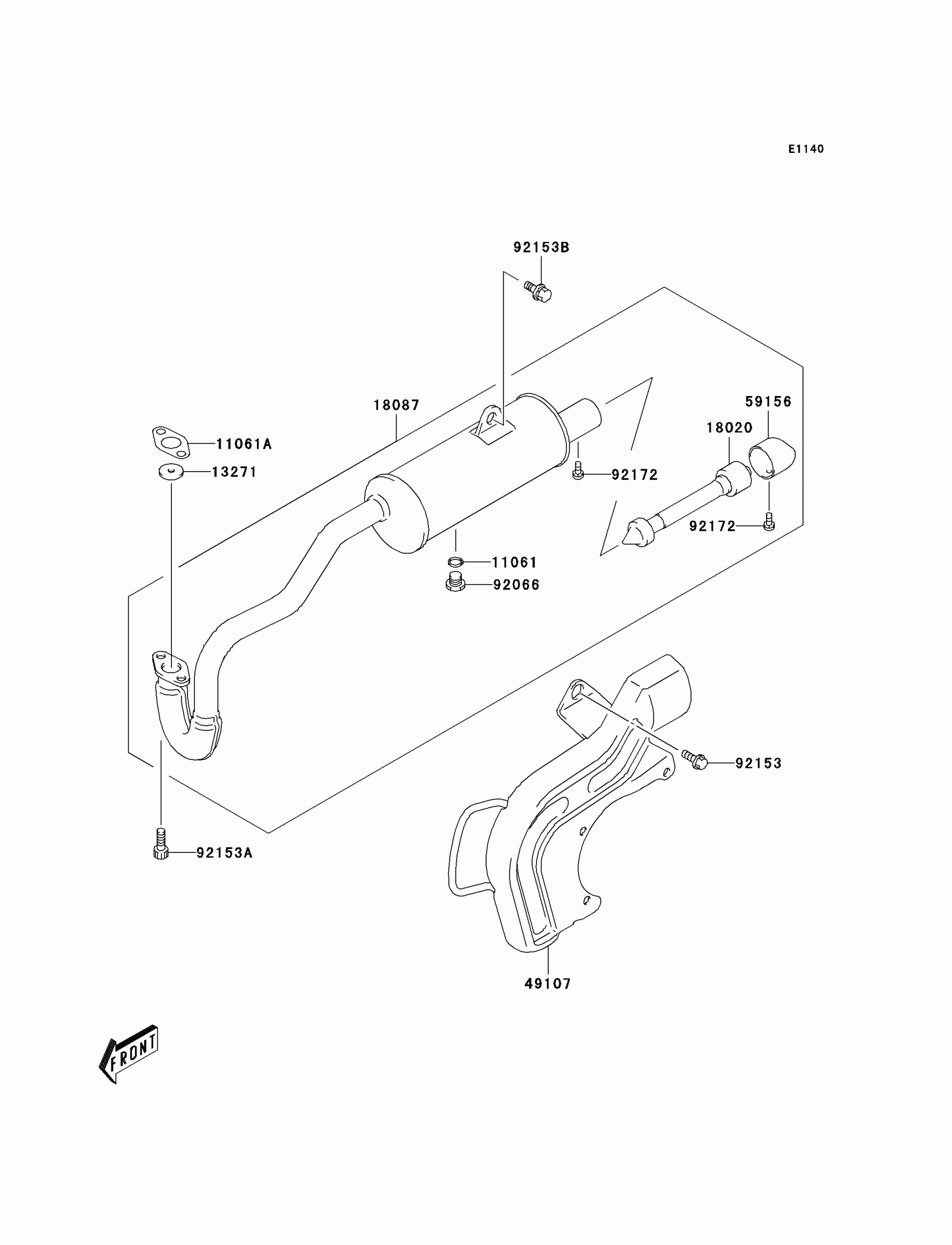

Kawasaki KFX50 Muffler(s) Diagram

Description

Price

11061

GASKET,12X16X2

11061-S005

$1.52

11061A

GASKET,EXHAUST PIPE

11061-S081

$9.42

13271

PLATE,EXHAUST PIPE

13271-S027

$2.46

18020

BAFFLE

18020-S001

Unavailable

18087

MUFFLER

18087-S002

$194.29

49107

COVER-EXHAUST PIPE

49107-S002

$52.69

59156

PIPE-TAIL

59156-S001

Unavailable

92066

PLUG

92066-S015

$2.90

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S024

$1.71

92153B

BOLT,MUFFLER

92153-S194

$1.98

92172

SCREW,MUFFLER TAIL

92172-S129

Unavailable
