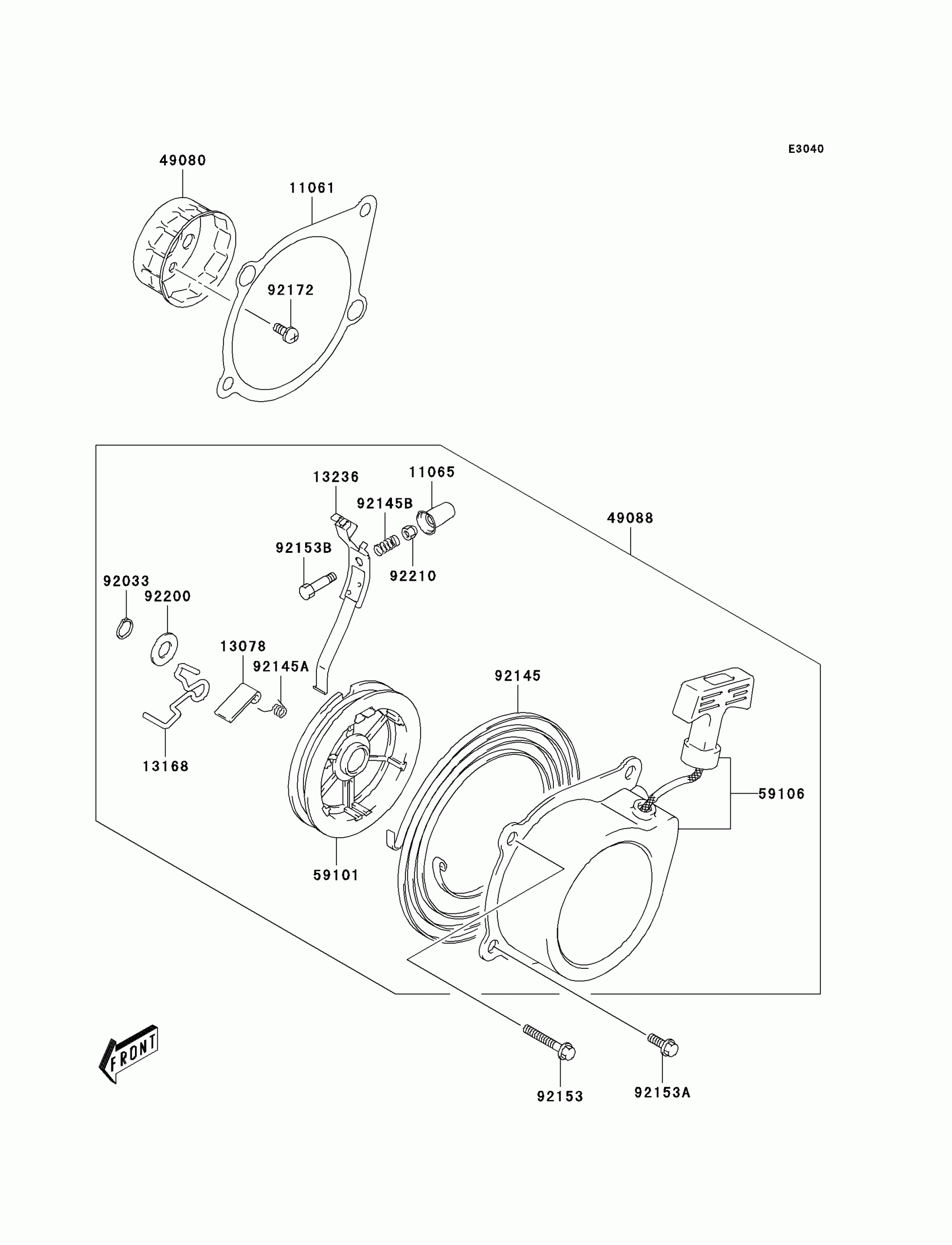

Kawasaki KFX50 Recoil Starter Diagram

Description

Price

11061

GASKET,RECOIL STARTER

11061-S050

$3.78

11065

CAP

11065-S023

$2.76

13078

RATCHET

13078-S002

Unavailable

13168

LEVER

13168-S003

$8.98

13236

LEVER-COMP

13236-S003

$31.37

49080

PULLEY-STARTING

49080-S001

$34.04

49088

STARTER-RECOIL

49088-S004

$165.34

59101

REEL

59101-S003

$27.69

59106

ROPE

59106-S001

Unavailable

92033

RING-SNAP

92033-S001

$1.93

92145

SPRING

92145-S069

$18.85

92145A

SPRING,RETURN

92145-S070

Unavailable

92145B

SPRING

92145-S071

$2.76

92153

BOLT

92153-S006

Unavailable

92153A

BOLT,RECOIL STARTER

92153-S193

$2.85

92153B

BOLT

92153-S209

$7.02

92172

SCREW,STARTER

92172-S128

$1.64

92200

WASHER

92200-S103

Unavailable

92210

NUT

92210-S077

$2.08
