2003 Kawasaki KFX400 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2003 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

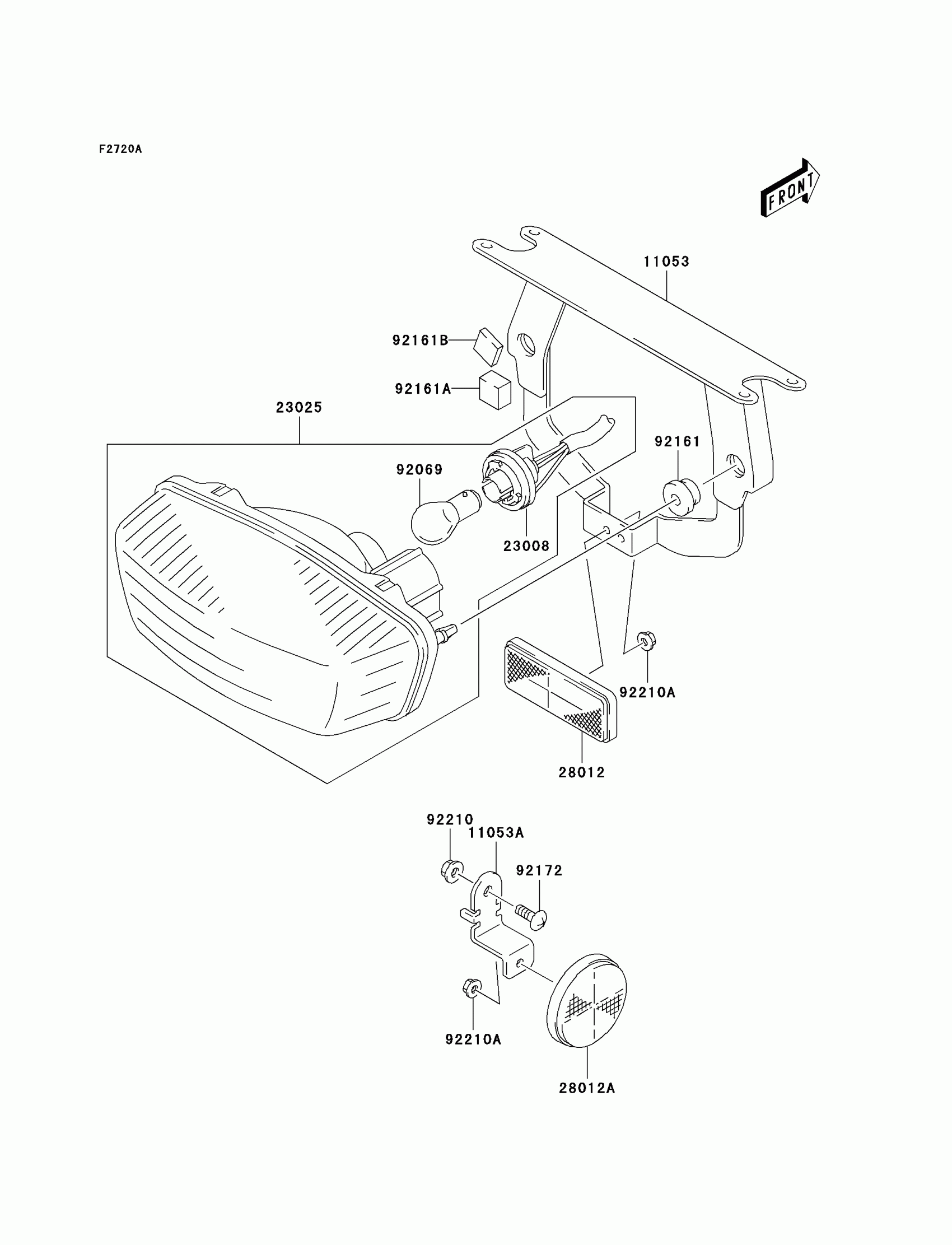

2003 Kawasaki KFX400 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-S023

1
Out of stock

11053A

BRACKET

11053-S024

1
Out of stock

23008

SOCKET-ASSY

23008-S005

1
Out of stock

23025

LAMP-TAIL

23025-S004

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-S003

1
Out of stock

28012A

REFLECTOR-REFLEX,REAR SIDE

28012-S004

1
Out of stock

92069

BULB,12V,21/5W

92069-S004

1
Out of stock

92161

DAMPER

92161-S085

1

$2.53

In stock

92161A

DAMPER,LAMP

92161-S095

1

$2.17

In stock

92161B

DAMPER,COMB LAMP

92161-S108

1

$2.17

In stock

92172

SCREW

92172-S055

1
Out of stock

92210

NUT

92210-S004

1
Out of stock

92210A

NUT

92210-S067

1
Out of stock
