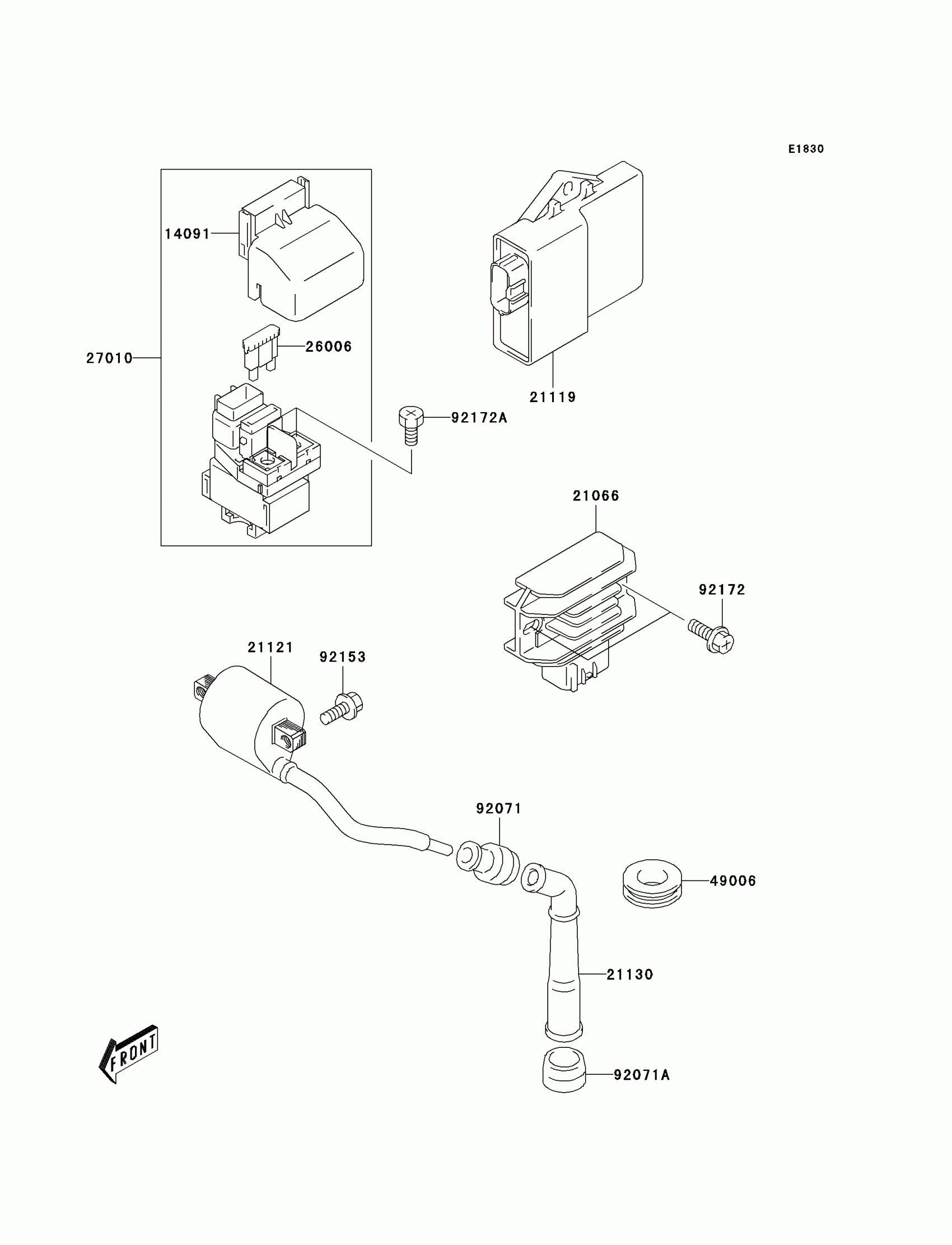

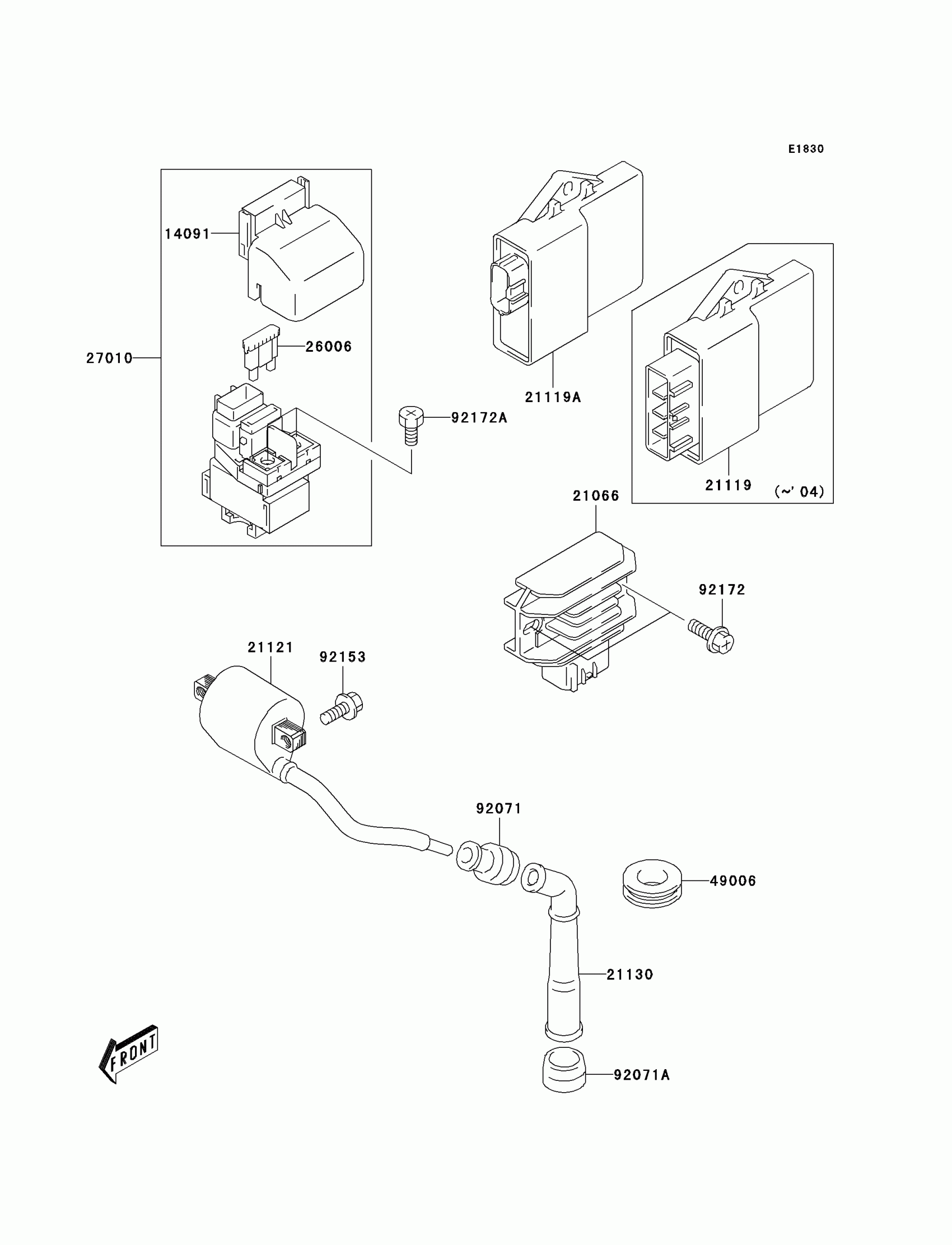

Kawasaki KFX400 Ignition System Diagram

Description

Price

14091

COVER

14091-S116

$4.44

21066

REGULATOR-VOLTAGE

21066-S004

Unavailable

21119A

IGNITER

21119-S010

$465.86

21121

COIL-IGNITION

21121-S006

$92.87

21130

CAP-SPARK PLUG

21130-S006

$35.43

26006

FUSE,20A

26006-S006

Unavailable

27010

SWITCH,STARTING MOTOR

27010-S024

$92.96

49006

BOOT,SPARK PLUG CAP

49006-S020

$5.03

92071

GROMMET,HIGHTENSION

92071-S004

$4.81

92071A

GROMMET,SPARK PLUG CAP

92071-S007

$5.05

92153

BOLT

92153-S012

$1.42

92172

SCREW

92172-S022

$1.42

92172A

SCREW,6X8

92172-S035

$1.42
