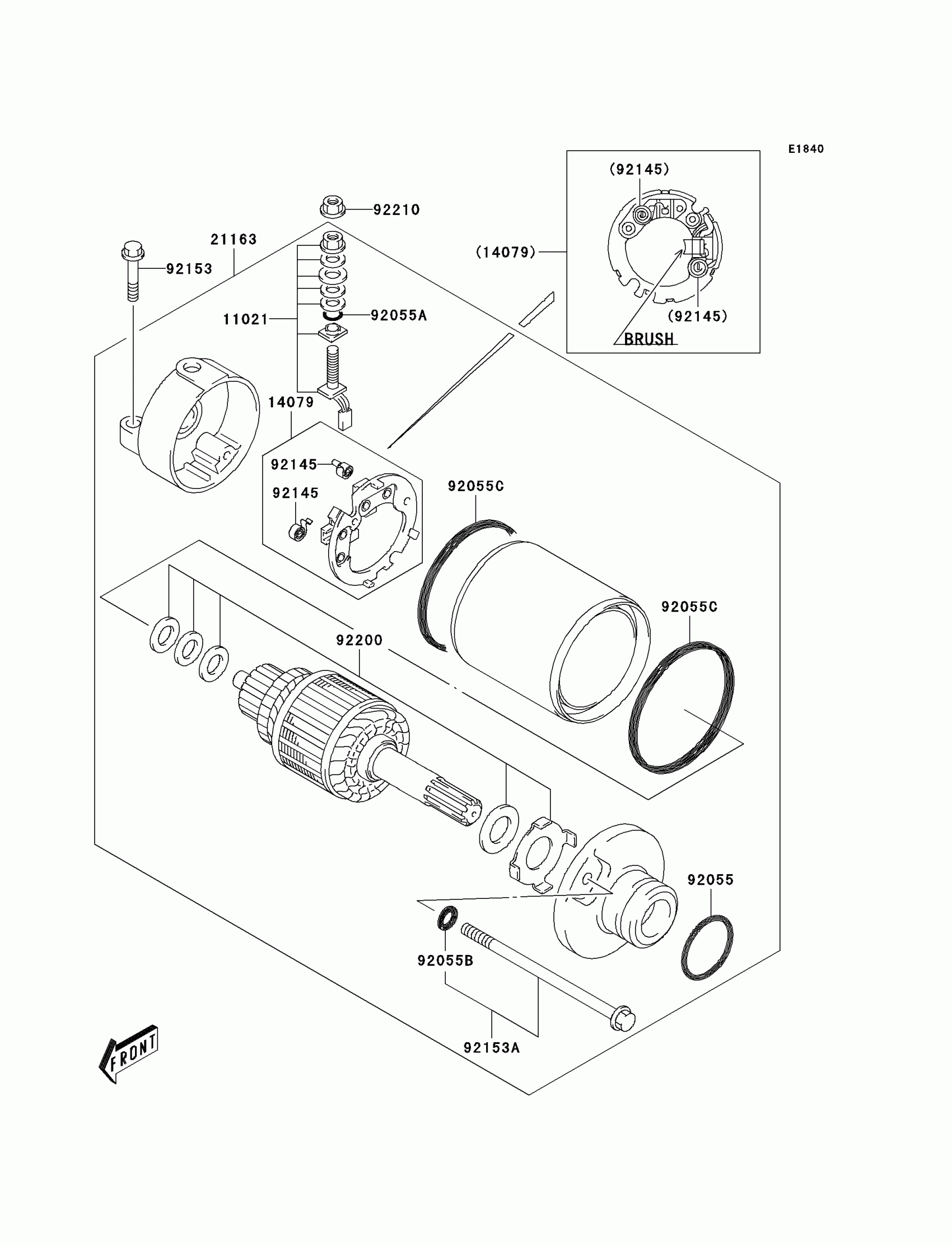

Kawasaki KFX400 Starter Motor Diagram

Description

Price

11021

BRUSH,TERMINAL SET

11021-S002

$43.89

14079

HOLDER-ASSY

14079-S002

$48.50

21163

STARTER-ELECTRIC

21163-S004

$386.78

92055

RING-O,D:3,ID:24.5

92055-S008

$2.00

92055A

RING-O

92055-S067

$4.10

92055B

RING-O

92055-S068

$4.61

92055C

RING-O

92055-S069

$7.88

92145

SPRING,BRUSH

92145-S103

$5.00

92153

BOLT

92153-S003

Unavailable

92153A

BOLT

92153-S293

$16.05

92200

WASHER,SET

92200-S154

$10.61

92210

NUT,STARTING MOTOR

92210-S099

$1.85
