2005 Kawasaki KFX400 Rear Master Cylinder Diagram

← All diagrams

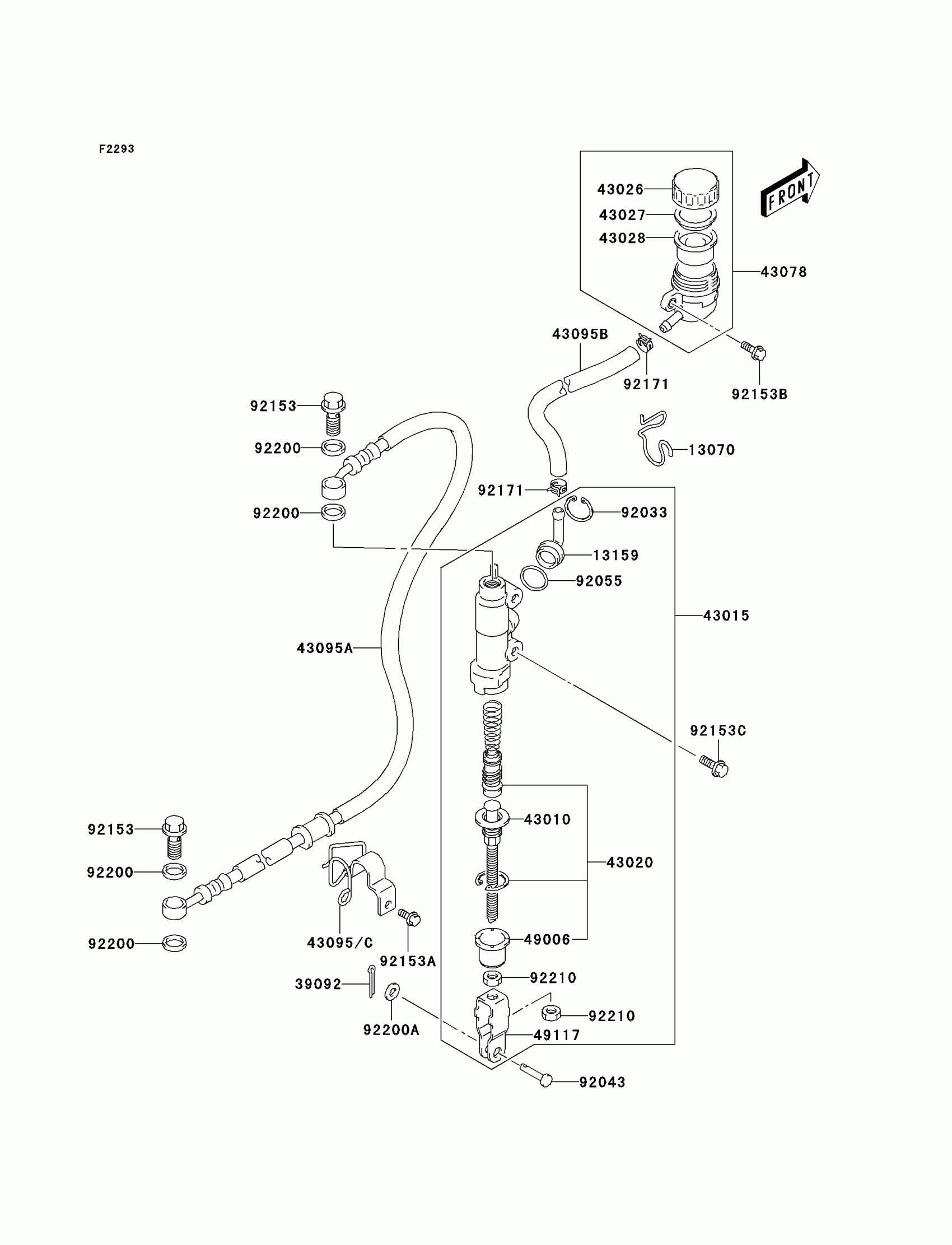

Find the part on the Rear Master Cylinder diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE

13070-S013

1
Out of stock

13159

CONNECTOR

13159-S002

1
Out of stock

39092

PIN-HAIR,FR FOOTREST COTTER

39092-S004

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-S001

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-S009

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-S005

1
Out of stock

43026

CAP-BRAKE

43026-S005

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-S003

1
Out of stock

43028

DIAPHRAGM

43028-S010

1
Out of stock

43078

RESERVOIR

43078-S005

1
Out of stock

43095A

HOSE-BRAKE

43095-S010

1
Out of stock

43095B

HOSE-BRAKE

43095-S011

1
Out of stock

43095C

HOSE-BRAKE

43095-S026

1
Out of stock

49006

BOOT

49006-S026

1
Out of stock

49117

YOKE

49117-S002

1
Out of stock

92033

RING-SNAP

92033-S042

1
Out of stock

92043

PIN,REAR MASTER CYLINDER

92043-S036

1
Out of stock

92055

RING-O

92055-S071

1
Out of stock

92153

BOLT

92153-S053

1
Out of stock

92153A

BOLT

92153-S143

1
Out of stock

92153B

BOLT

92153-S144

1
Out of stock

92153C

BOLT,REAR MASTER CYLINDER

92153-S260

1
Out of stock

92171

CLAMP

92171-S086

1
Out of stock

92200

WASHER,10X15X1.5

92200-S014

1
Out of stock

92200A

WASHER,REAR MASTER CYLINDER

92200-S135

1
Out of stock

92210

NUT

92210-S112

1
Out of stock
