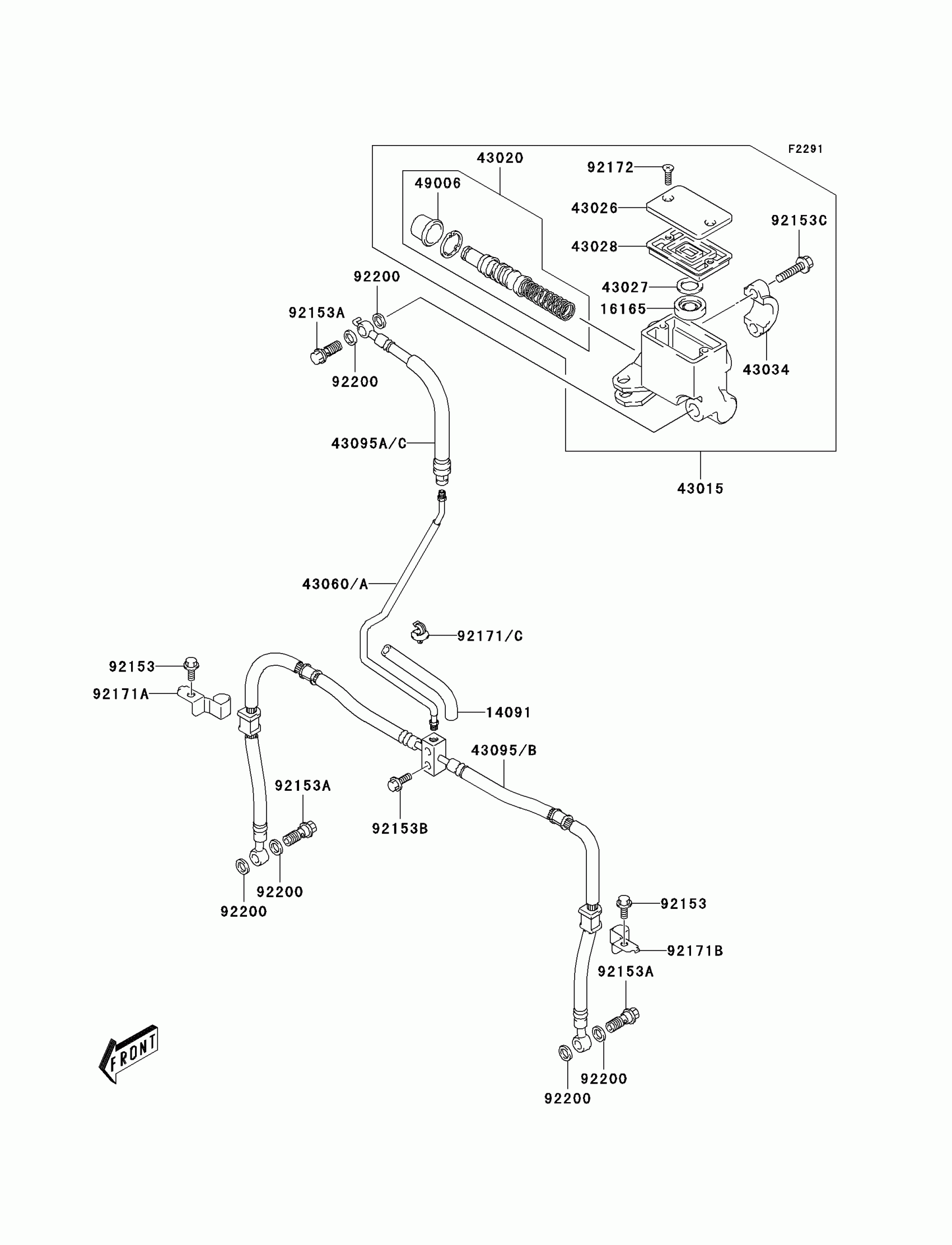

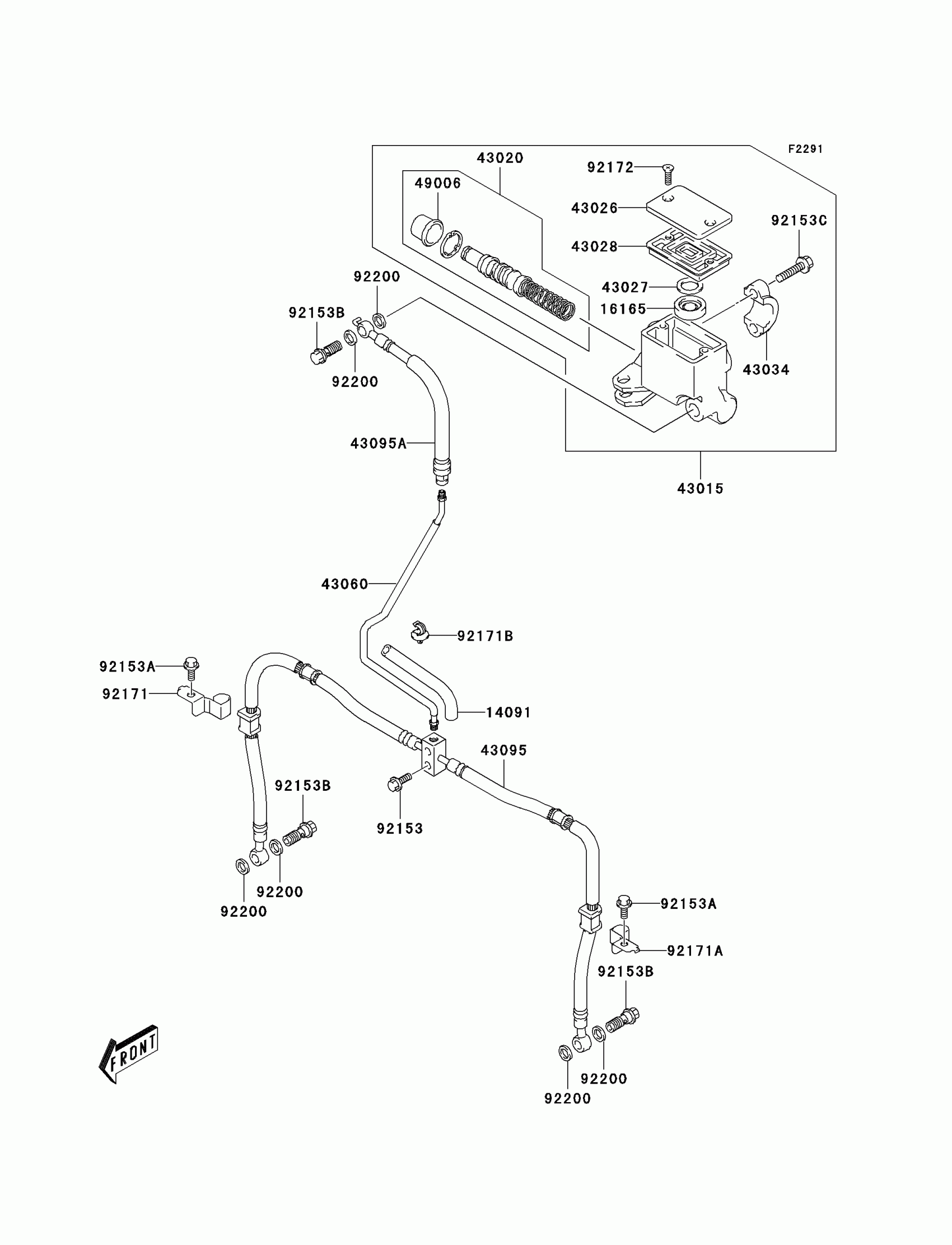

Kawasaki KFX400 Front Master Cylinder Diagram

Description

Price

14091

COVER,BRAKE PIPE

14091-S092

$9.02

16165

SEPARATOR

16165-S004

$9.90

43015

CYLINDER-ASSY-MASTER,FR

43015-S008

Unavailable

43020

PISTON-COMP-BRAKE

43020-S004

Unavailable

43026

CAP-BRAKE

43026-S006

$15.08

43027

PLATE-DIAPHRAGM

43027-S001

$2.64

43028

DIAPHRAGM

43028-S005

$10.08

43034

HOLDER-BRAKE

43034-S002

$12.34

43060A

PIPE-BRAKE

43060-S004

$11.86

43095B

HOSE-BRAKE

43095-S027

Unavailable

43095C

HOSE-BRAKE

43095-S028

$45.45

49006

BOOT

49006-S004

$5.86

92153

BOLT

92153-S010

$1.64

92153A

BOLT

92153-S053

Unavailable

92153B

BOLT

92153-S144

Unavailable

92153C

BOLT,6X25

92153-S298

$3.83

92171A

CLAMP,BRAKE HOSE

92171-S100

$9.73

92171B

CLAMP,BRAKE HOSE

92171-S101

$9.73

92171C

CLAMP,BRAKE CABLE

92171-S165

$2.81

92172

SCREW,RESERVOIR CAP

92172-S054

$1.81

92200

WASHER,10X15X1.5

92200-S014

$2.00
