2005 Kawasaki KFX400 Rear Brake Diagram

← All diagrams

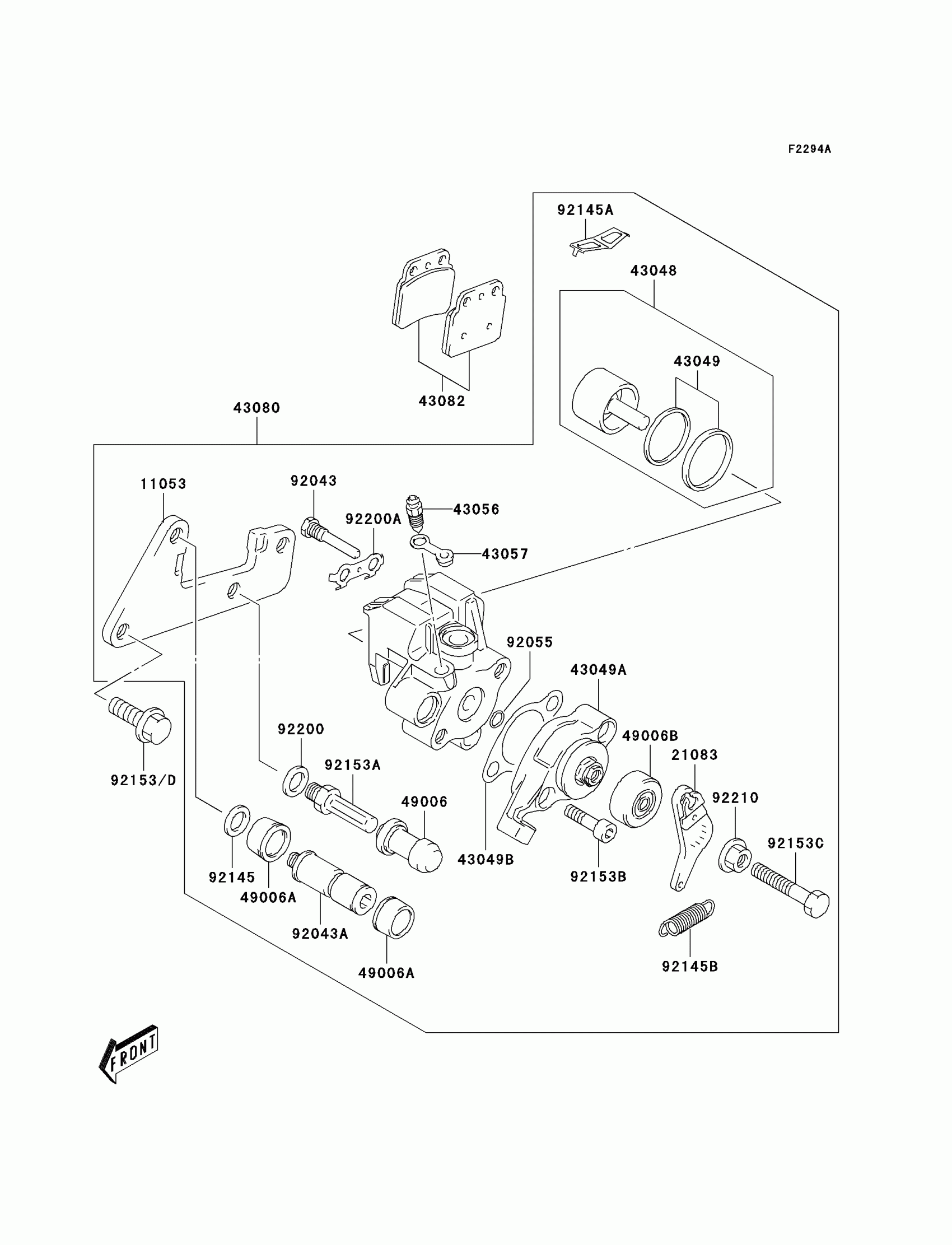

Find the part on the Rear Brake diagram for your 2005 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KFX400 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-S020

1

$44.80

In stock

21083

ARM

21083-S002

1
Out of stock

43048

PISTON-CALIPER

43048-S005

1
Out of stock

43049

PACKING,PISTON

43049-S008

1
Out of stock

43049A

PACKING

43049-S009

1
Out of stock

43049B

PACKING

43049-S010

1
Out of stock

43056

BREATHER-BRAKE

43056-S002

1
Out of stock

43057

CAP-BREATHER,BLEEDER

43057-S002

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-S005

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-S007

1
Out of stock

49006

BOOT

49006-S007

1
Out of stock

49006A

BOOT

49006-S021

1
Out of stock

49006B

BOOT

49006-S025

1
Out of stock

92043

PIN

92043-S043

1
Out of stock

92043A

PIN

92043-S044

1
Out of stock

92055

RING-O

92055-S070

1
Out of stock

92145

SPRING

92145-S105

1
Out of stock

92145A

SPRING,PAD

92145-S106

1
Out of stock

92145B

SPRING

92145-S108

1
Out of stock

92153A

BOLT

92153-S297

1
Out of stock

92153B

BOLT

92153-S308

1
Out of stock

92153C

BOLT

92153-S375

1
Out of stock

92153D

BOLT

92153-S471

1
Out of stock

92200

WASHER

92200-S159

1
Out of stock

92200A

WASHER

92200-S160

1
Out of stock

92210

NUT

92210-S111

1
Out of stock
