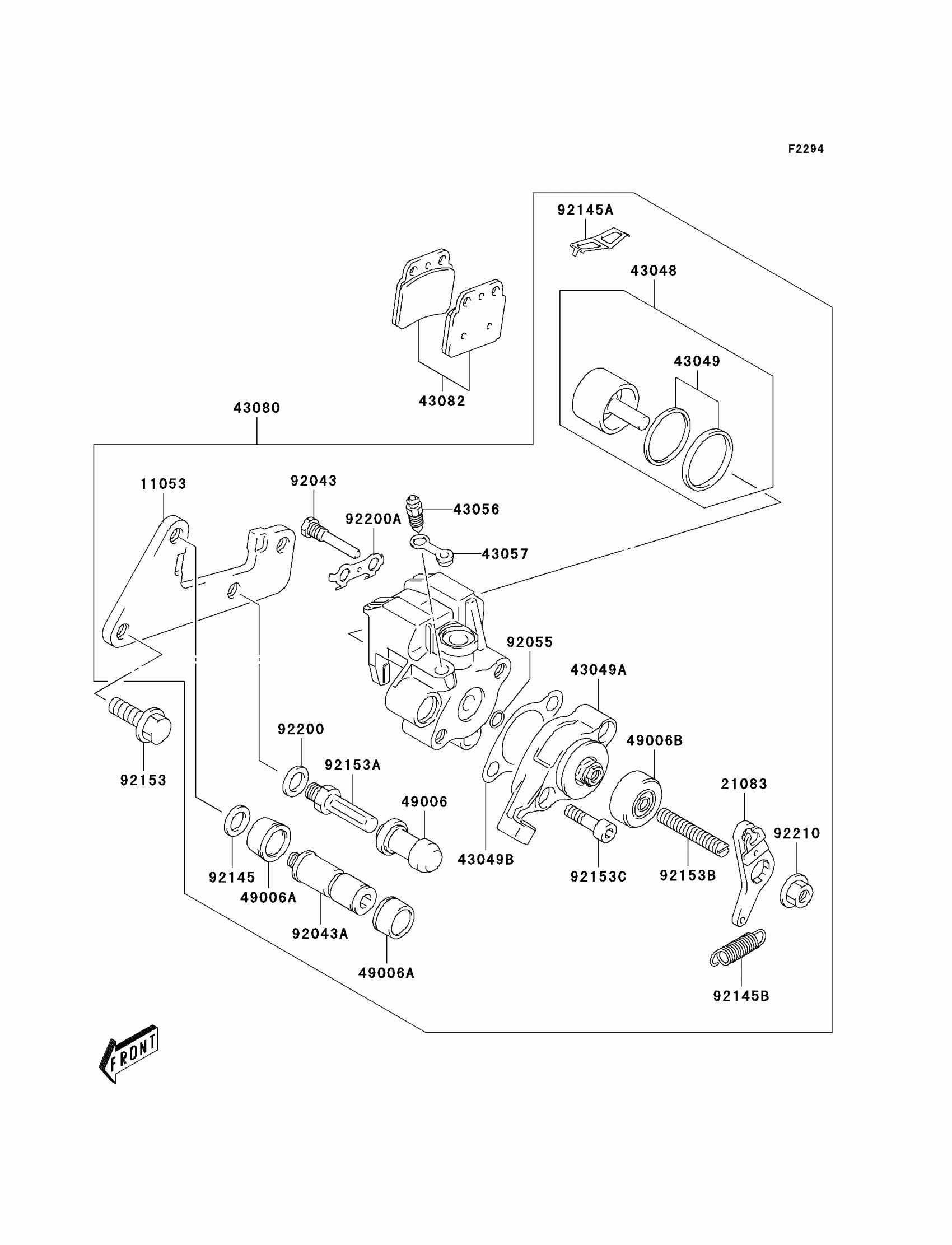

Kawasaki KFX400 Rear Brake(A1) Diagram

#

Description
Price

11053

BRACKET

11053-S020

$44.80

21083

ARM

21083-S002

$17.03

43048

PISTON-CALIPER

43048-S005

$58.58

43049

PACKING,PISTON

43049-S008

$10.51

43049A

PACKING

43049-S009

$143.48

43049B

PACKING

43049-S010

$7.03

43056

BREATHER-BRAKE

43056-S002

$9.05

43057

CAP-BREATHER,BLEEDER

43057-S002

$5.69

43080

CALIPER-SUB-ASSY

43080-S004

$296.40

43082

PAD-ASSY-BRAKE

43082-S007

$65.02

49006

BOOT

49006-S007

$9.12

49006A

BOOT

49006-S021

$6.32

49006B

BOOT

49006-S025

$5.95

92043

PIN

92043-S043

$5.95

92043A

PIN

92043-S044

$18.72

92055

RING-O

92055-S070

$3.83

92145

SPRING

92145-S105

$2.80

92145A

SPRING,PAD

92145-S106

$10.71

92145B

SPRING

92145-S108

$8.08

92153

BOLT,REAR CALIPER

92153-S265

$3.42

92153A

BOLT

92153-S297

$8.88

92153B

BOLT,ADJUST

92153-S304

$15.83

92153C

BOLT

92153-S308

$8.53

92200

WASHER

92200-S159

$1.88

92200A

WASHER

92200-S160

$3.98

92210

NUT

92210-S111

$4.44
