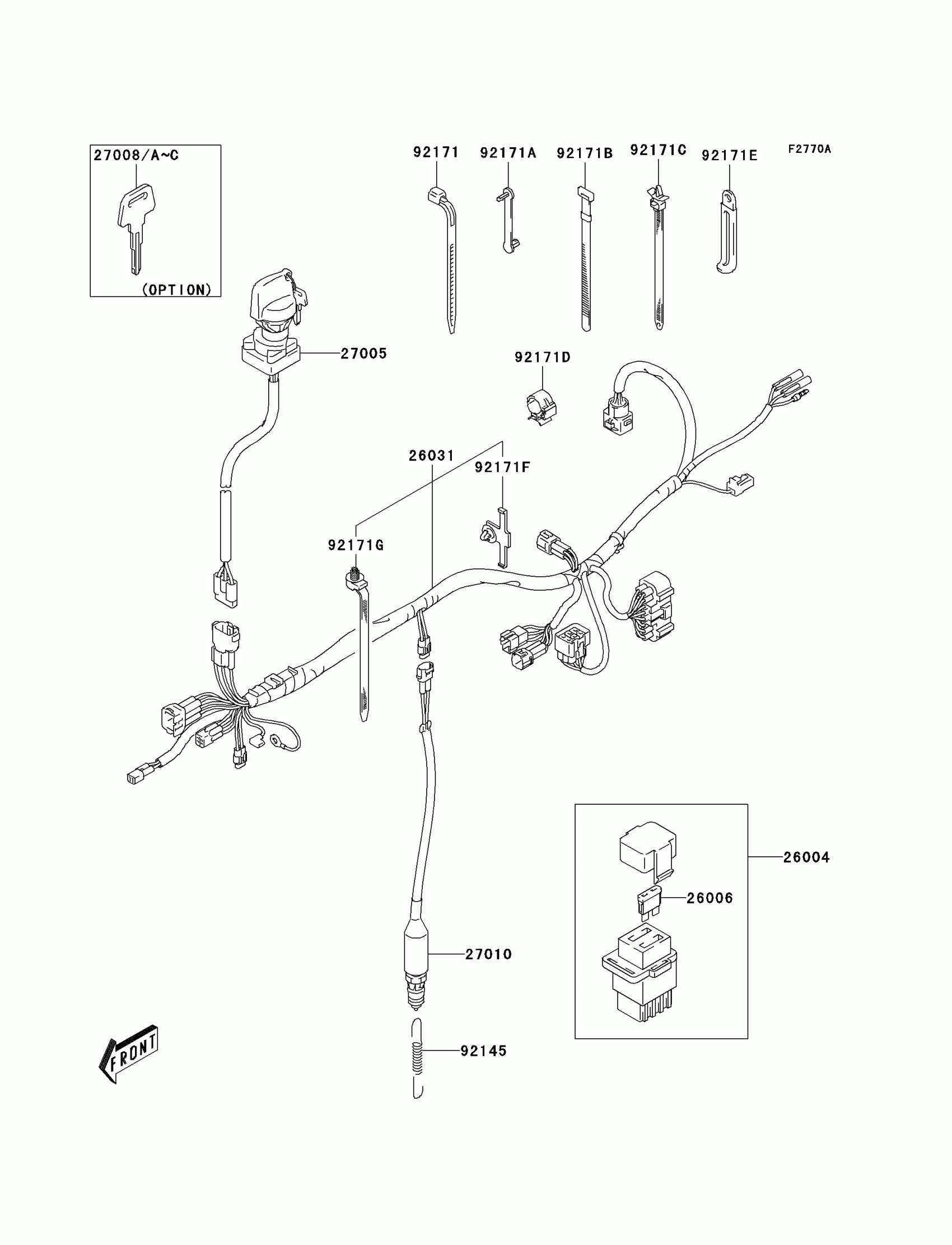

Find the part on the Ignition Switch diagram for your 2004 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KFX400 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26004

FUSE-ASSY

26004-S003

1
Out of stock

26006

FUSE,10A

26006-S007

1

$1.76

In stock

26031

HARNESS

26031-S007

1

$253.39

In stock

27005

1

$94.87

In stock

27008

1

$8.47

In stock

27008A

1

$8.47

In stock

27008B

KEY-LOCK,BLANK(TYPE:E)

27008-S006

1
Out of stock

27008C

1

$8.47

In stock

27010

SWITCH,STOP LAMP

27010-S026

1

$67.05

In stock

92145

1

$7.66

In stock

92171

CLAMP,L=125

92171-S014

1
Out of stock

92171A

CLAMP,L=33

92171-S034

1

$2.53

In stock

92171B

CLAMP,L=120

92171-S035

1

$3.68

In stock

92171C

CLAMP,L=90

92171-S051

1

$1.95

In stock

92171D

1

$3.68

In stock

92171E

CLAMP,L=135

92171-S096

1

$3.07

In stock

92171F

CLAMP

92171-S134

1

$2.85

In stock

92171G

CLAMP

92171-S135

1

$4.17

In stock
