2003 Kawasaki KFX400 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2003 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

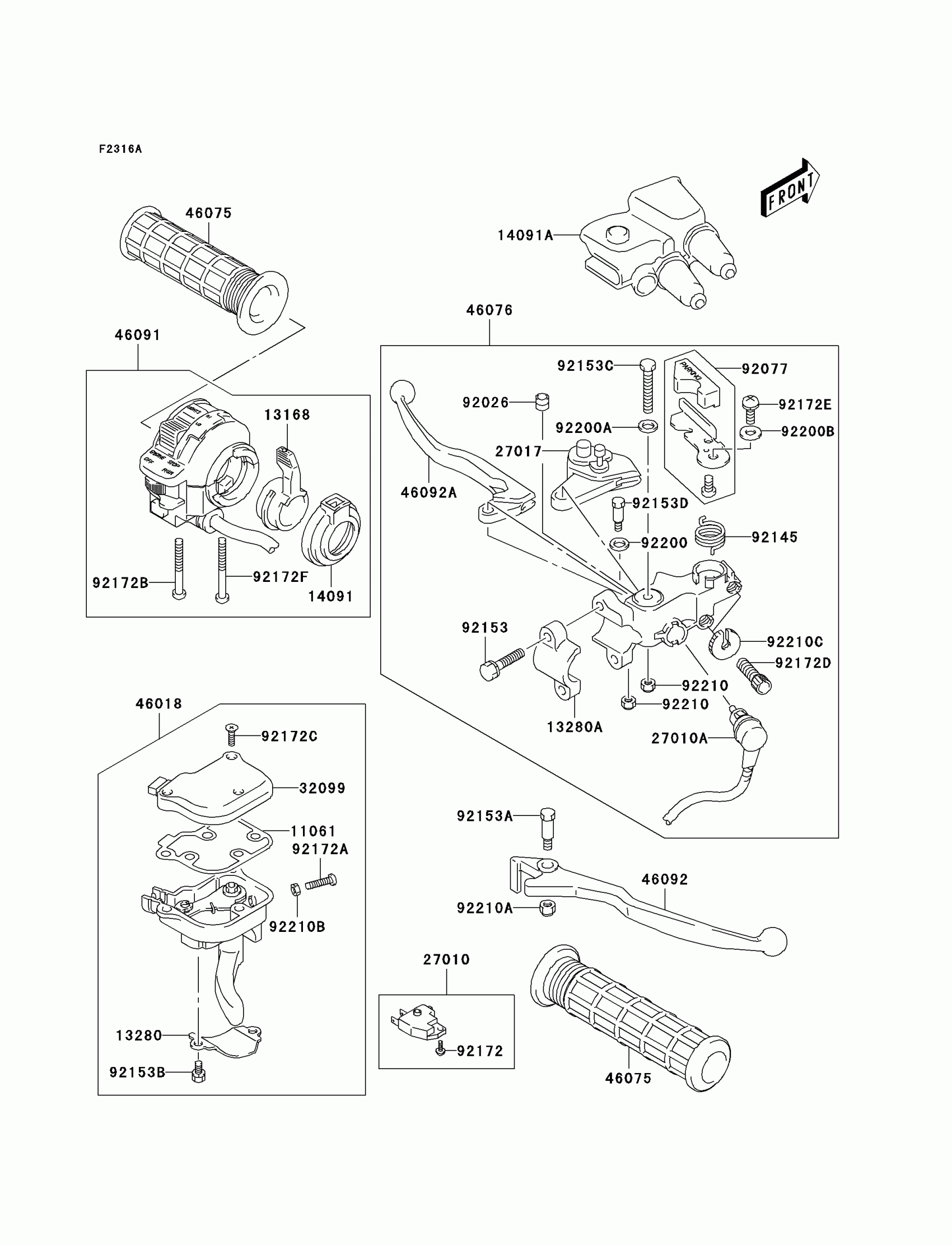

2003 Kawasaki KFX400 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-S077

1
Out of stock

13168

LEVER,CHOKE

13168-S005

1
Out of stock

13280

HOLDER

13280-S027

1

$26.20

In stock

13280A

HOLDER

13280-S028

1

$34.96

In stock

14091

COVER,CHOKE

14091-S084

1
Out of stock

14091A

COVER,CLUTCH LEVER

14091-S090

1
Out of stock

27010

SWITCH,STOP

27010-S006

1
Out of stock

27010A

SWITCH

27010-S041

1
Out of stock

27017

LOCK,PARKING

27017-S002

1
Out of stock

32099

CASE

32099-S007

1
Out of stock

46018

GRIP-ASSY-THROTTLE

46018-S002

1

$129.75

In stock

46075

GRIP,BLACK

46075-S006-504

1

$12.75

In stock

46076

1

$131.28

In stock

46091

HOUSING-ASSY-CONTROL

46091-S009

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-S010

1
Out of stock

46092A

LEVER-GRIP

46092-S011

1
Out of stock

92026

SPACER

92026-S099

1
Out of stock

92077

KNOB,PARKING

92077-S006

1
Out of stock

92145

SPRING,RETURN

92145-S104

1
Out of stock

92153

BOLT

92153-S002

1
Out of stock

92153A

BOLT,BRAKE LEVER PIVOT

92153-S116

1
Out of stock

92153B

BOLT

92153-S294

1
Out of stock

92153C

BOLT,PARKING LOCK

92153-S295

1
Out of stock

92153D

BOLT

92153-S296

1
Out of stock

92172

SCREW

92172-S053

1
Out of stock

92172A

SCREW

92172-S133

1
Out of stock

92172B

SCREW

92172-S165

1
Out of stock

92172C

SCREW

92172-S176

1
Out of stock

92172D

SCREW,ADJUSTER

92172-S177

1
Out of stock

92172E

SCREW,PARKING PLATE

92172-S178

1
Out of stock

92172F

SCREW

92172-S182

1
Out of stock

92200

WASHER,PIVOT

92200-S155

1
Out of stock

92200A

WASHER,PARKING LOCK

92200-S157

1
Out of stock

92200B

WASHER

92200-S158

1
Out of stock

92210

NUT

92210-S024

1
Out of stock

92210A

NUT,LEVER PIVOT

92210-S044

1
Out of stock

92210B

NUT

92210-S065

1
Out of stock

92210C

NUT,ADJUSTER

92210-S108

1
Out of stock
