2004 Kawasaki KFX400 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2004 Kawasaki KFX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

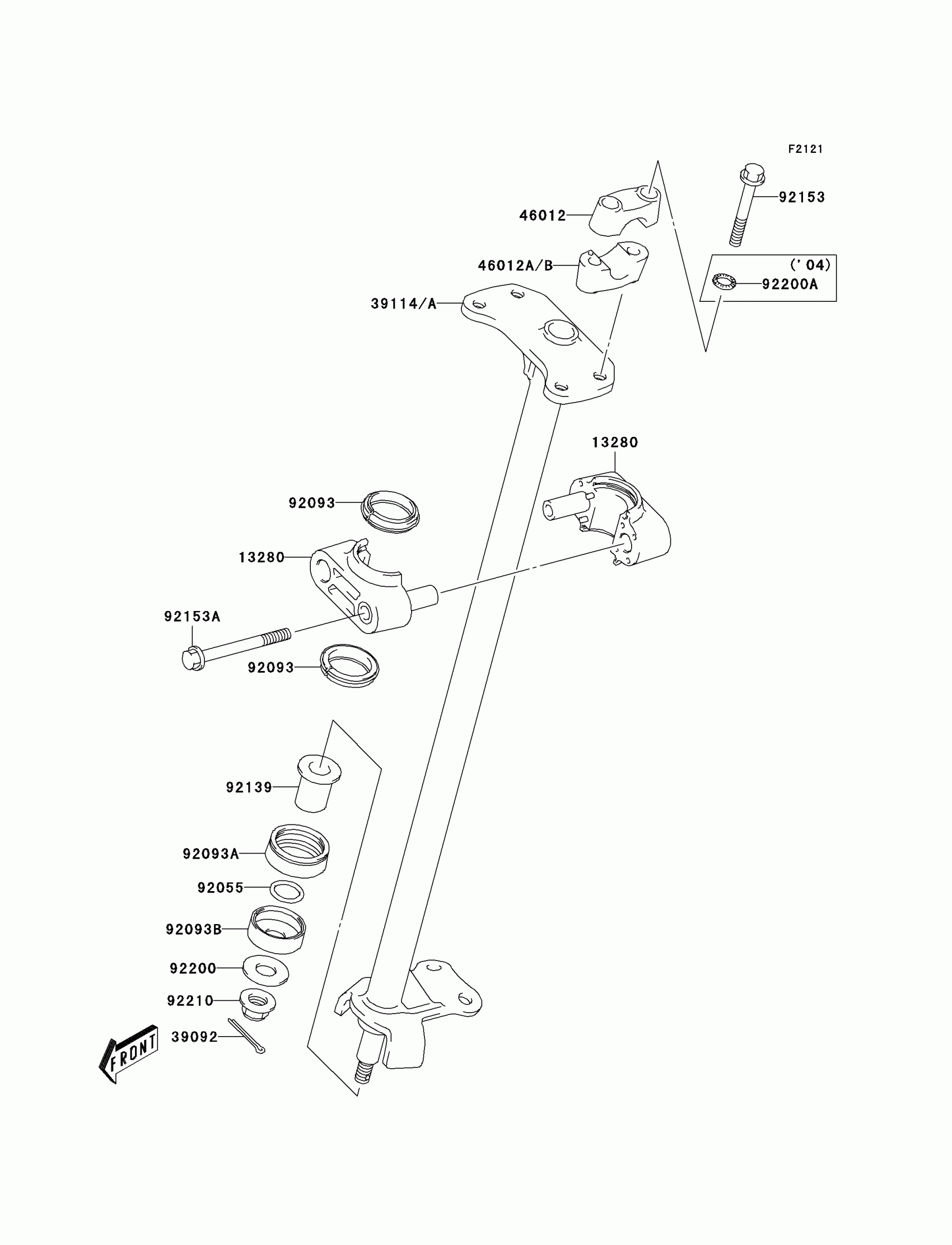

2004 Kawasaki KFX400 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER

13280-S026

1

$23.05

In stock

39092

PIN-HAIR,COTTER

39092-S005

1

$1.64

In stock

39114A

SHAFT-COMP-STRG

39114-S004

1

$271.45

In stock

46012

HOLDER-HANDLE,BLACK

46012-S003-504

1

$16.05

In stock

46012B

HOLDER-HANDLE,BLACK

46012-S007-504

1

$23.25

In stock

92055

RING-O,D=3.1

92055-S006

1
Out of stock

92093

SEAL

92093-S038

1
Out of stock

92093A

SEAL

92093-S052

1
Out of stock

92093B

SEAL

92093-S053

1
Out of stock

92139

BUSHING,STEERING SHAFT

92139-S030

1
Out of stock

92153

BOLT

92153-S249

1
Out of stock

92153A

BOLT,STEERING SHAFT HOLDER

92153-S250

1
Out of stock

92200

WASHER,STEERING SHAFT

92200-S137

1
Out of stock

92200A

WASHER

92200-S233

1
Out of stock

92210

NUT

92210-S032

1
Out of stock
